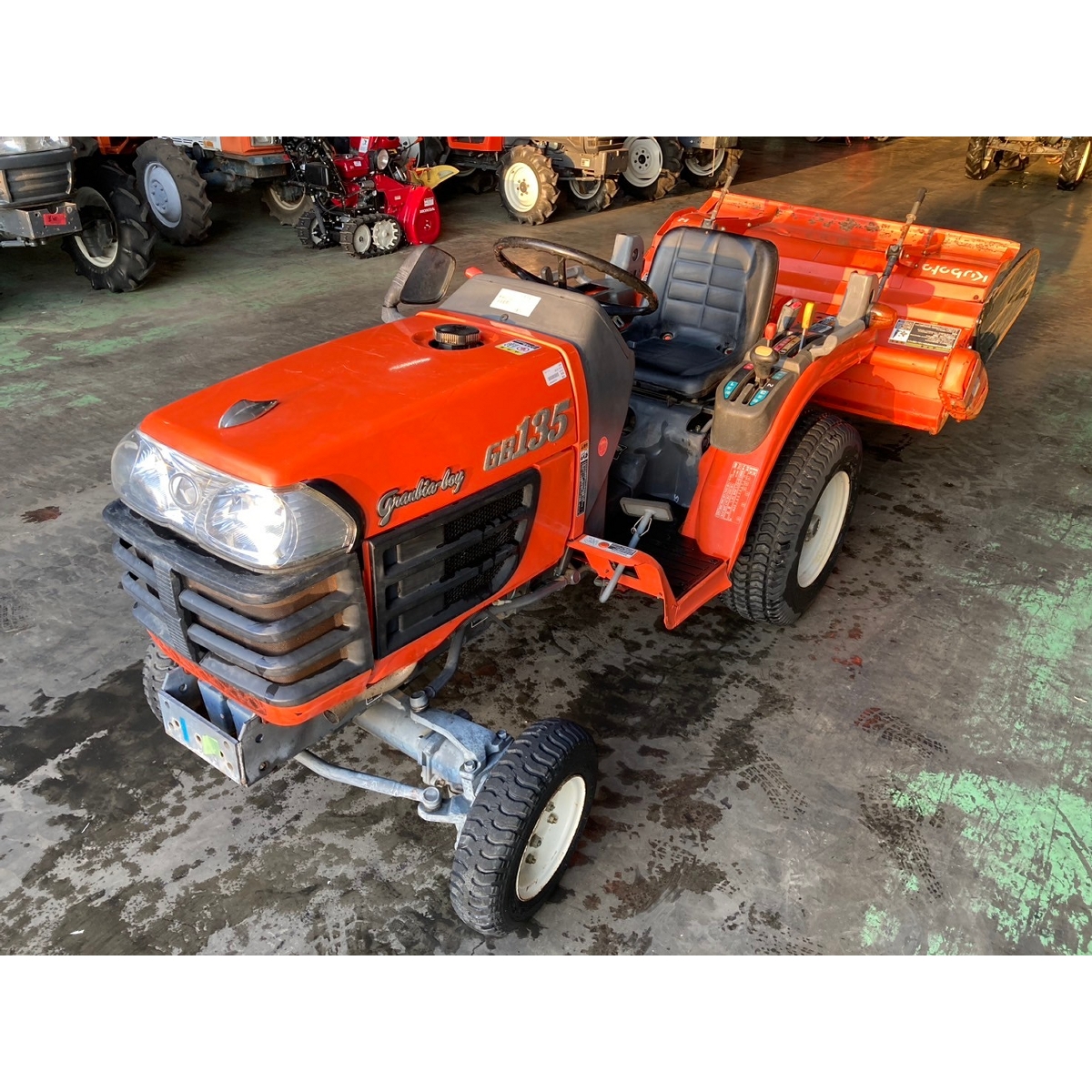

The Kubota GB135 is a tractor with a rated output of 13 hp, characterising it as a compact option in its class. It was manufactured from 2004 to 2006, featuring a 3-cylinder diesel liquid-cooled engine. The engine drives four-wheel drive through a 6-speed gearbox, with a listed weight of 504 kg. The GB135 is designed for use in areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
504 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
13 hp
Recorded weight
504 kg
Transmissions
6-speed gear
Production years
2004-2006
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Manual steeringReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine9.6 kWReference
Kubota D662Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke64 x 68 mmReference
Power9.6 kWReference
Rated RPM2800Reference
StarternegativeReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Controlposition controlReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase127 cmReference
Weight504 kgReference
Front tire4.00-12Reference
Rear tire7-16Reference
Standard tires (ag)Front: 4.00-12. Rear: 7-16Reference
Length200 cmReference
Width103 cmReference
Height (ROPS)178 cmReference
Ground clearance24 cmReference
Front tread76 cmReference
Rear tread72 to 87 cmReference
Electrical
GroundelectricReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
