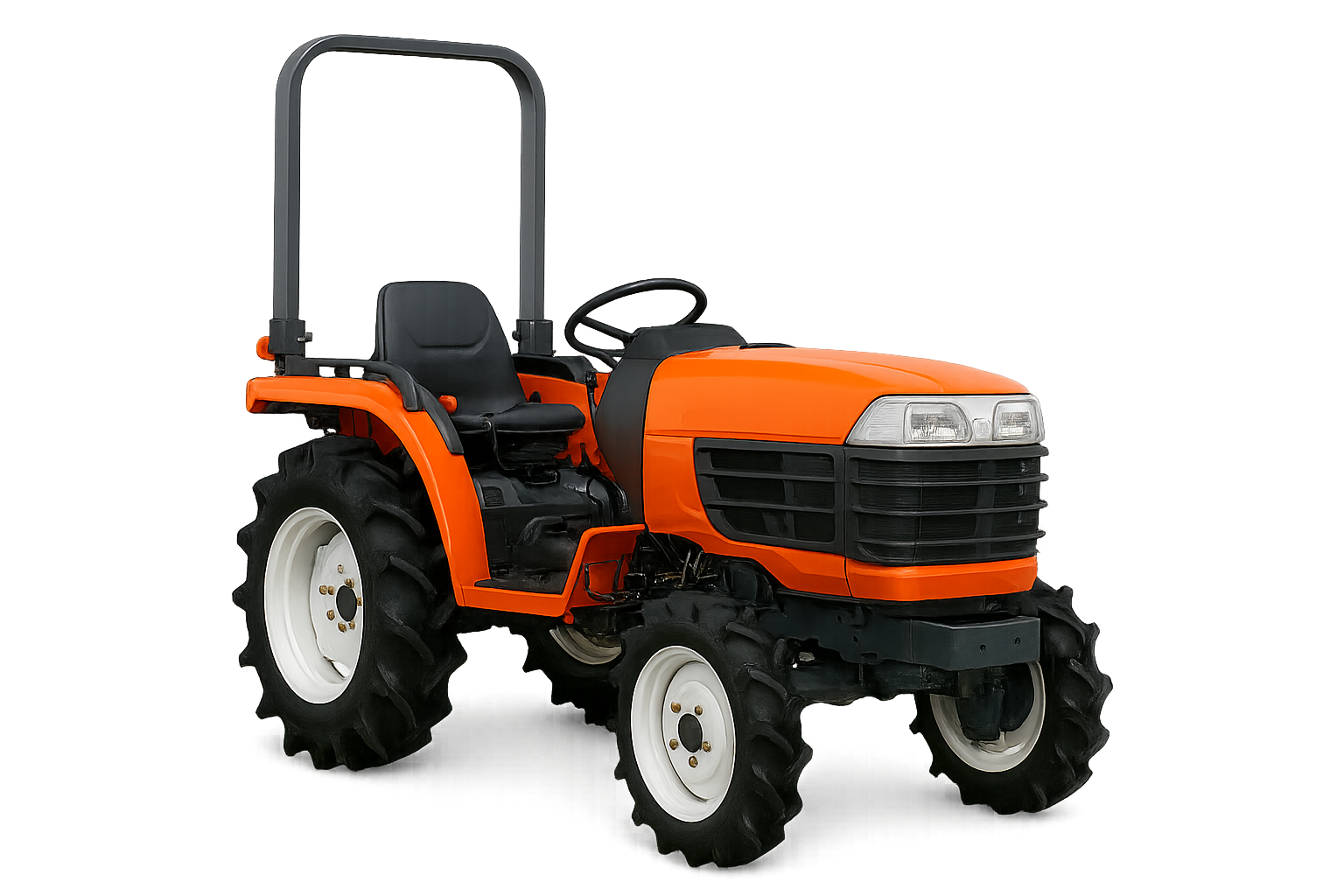

The Kubota GB145 is a tractor with a rated power of 14 hp, positioning it at the lighter end of its class. Manufactured from 2004 to 2006, the GB145 is equipped with a 3-cylinder diesel liquid-cooled engine and features four-wheel drive with a 6-speed gearbox. Its operating weight is listed as 539 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
539 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
14 hp
Recorded weight
539 kg
Transmissions
6-speed gear
Production years
2004-2006
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Manual steeringReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine10.3 kWReference
Kubota D722Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke67 x 68 mmReference
Power10.3 kWReference
Rated RPM2800Reference
StarternegativeReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Controlposition controlReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase127 cmReference
Weight539 kgReference
Front tire5-12Reference
Rear tire8-16Reference
Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Length201 cmReference
Width105 cmReference
Height (ROPS)181 cmReference
Ground clearance27 cmReference
Front tread74 cmReference
Rear tread72 to 87 cmReference
Electrical
GroundelectricReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
