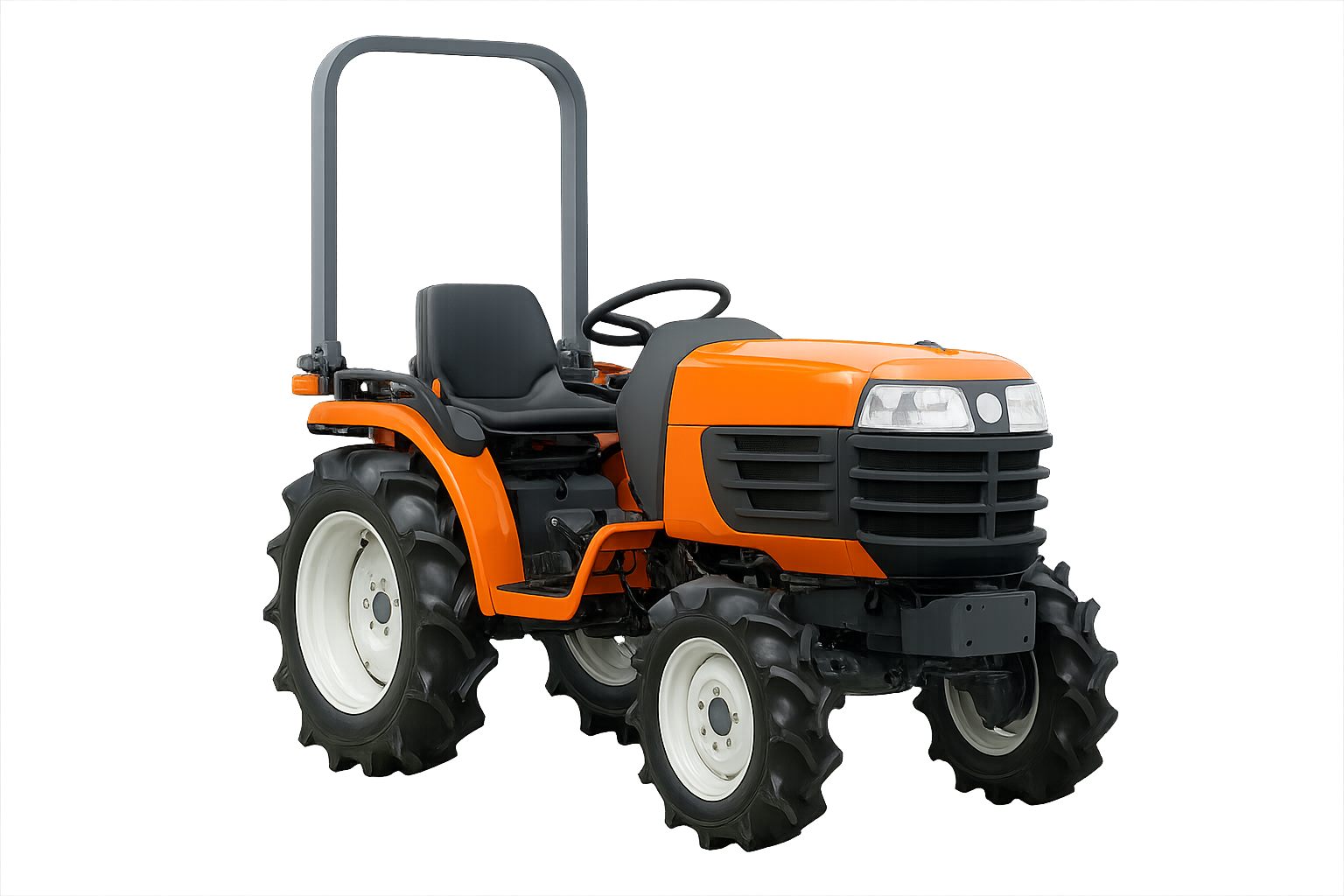

The Kubota GB150 is a compact tractor with a rated output of 15 hp, situated within its class due to its relatively small size. Produced between 2002 and 2003, it features a 3-cylinder diesel liquid-cooled engine, which is connected to a 6-speed gearbox and powers four-wheel drive. The tractor's weight is listed at 565 kg, and it is intended for use on land areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
565 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
15 hp
Recorded weight
565 kg
Transmissions
6-speed gear
Production years
2002-2003
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 0.9L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine11.0 kWReference
Kubota D905Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 74 mmReference
Power11.0 kWReference
Rated RPM2500Reference
StarternegativeReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Controlposition controlReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase127 cmReference
Weight565 kgReference
Front tire5-12Reference
Rear tire8-16Reference
Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Length204 cmReference
Width105 cmReference
Height (ROPS)183 cmReference
Ground clearance28 cmReference
Front tread74 cmReference
Rear tread72 to 87 cmReference
Electrical
GroundelectricReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
