Tractor · 1997Unverified

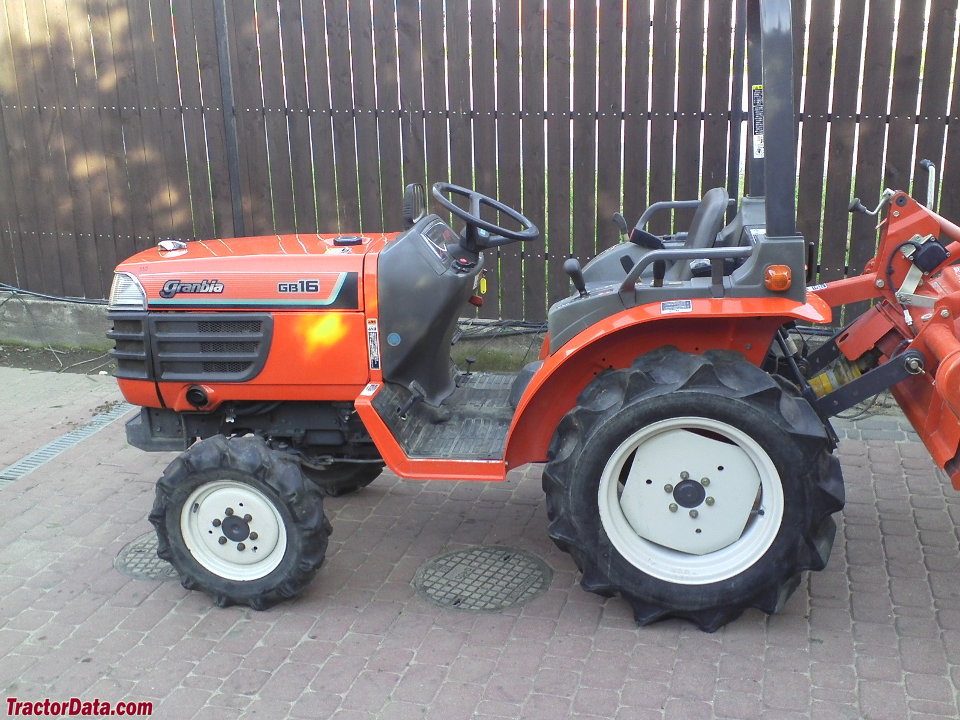

Kubota GB16

Name: Kubota GB16
Brand: Kubota

Kubota GB16 — GB Series · 16 hp. Reference specifications; pending source verification.

The Kubota GB16 is a lightweight tractor model with a power rating of approximately 16 horsepower. It was manufactured from 1997 to 2001. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine and features four-wheel drive with a 6-speed gearbox. Its operating weight ranges from 1499 to 1543 pounds, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Weight

1499 to 1543 pounds

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

16 hp

Recorded weight

679 kg

Transmissions

6-speed gear

Production years

1997-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS.Reference

Variants

GB16FGlideshiftReference

Engine

Kubota 0.9L 3-cyl dieselReference

Fuel tank20.1 LReference

Engine11.8 kWReference

Kubota D905Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.9 LReference

Bore/Stroke72 x 74 mmReference

Power11.8 kWReference

Rated RPM2600Reference

StarternegativeReference

Starter volts12Reference

Transmission

6-speed gearReference

18-speedReference

Gear Weight679 kgReference

TypegearReference

Gears6 forward and 2 reverseReference

Three gears, plus reverse, in two ranges.Reference

TransmissionGlideshiftReference

Gears18 forward and 9 reverseReference

Six forward and three reverse gears in three ranges.Reference

PTO & Hydraulics

Rear Type0Reference

Controlposition controlReference

Rear PTO Type451/769/1207 (1.375)Reference

Dimensions

Wheelbase135 cmReference

Weight1499 to 1543 poundsReference

Front tire5.00-12Reference

Rear tire8-18Reference

Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference

Length229 cmReference

Width102 cmReference

Height (ROPS)182 cmReference

Glideshift Weight699 kgReference

Ground clearance30 cmReference

Front tread84 cmReference

Rear tread81/89 cmReference

Electrical

GroundelectricReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
