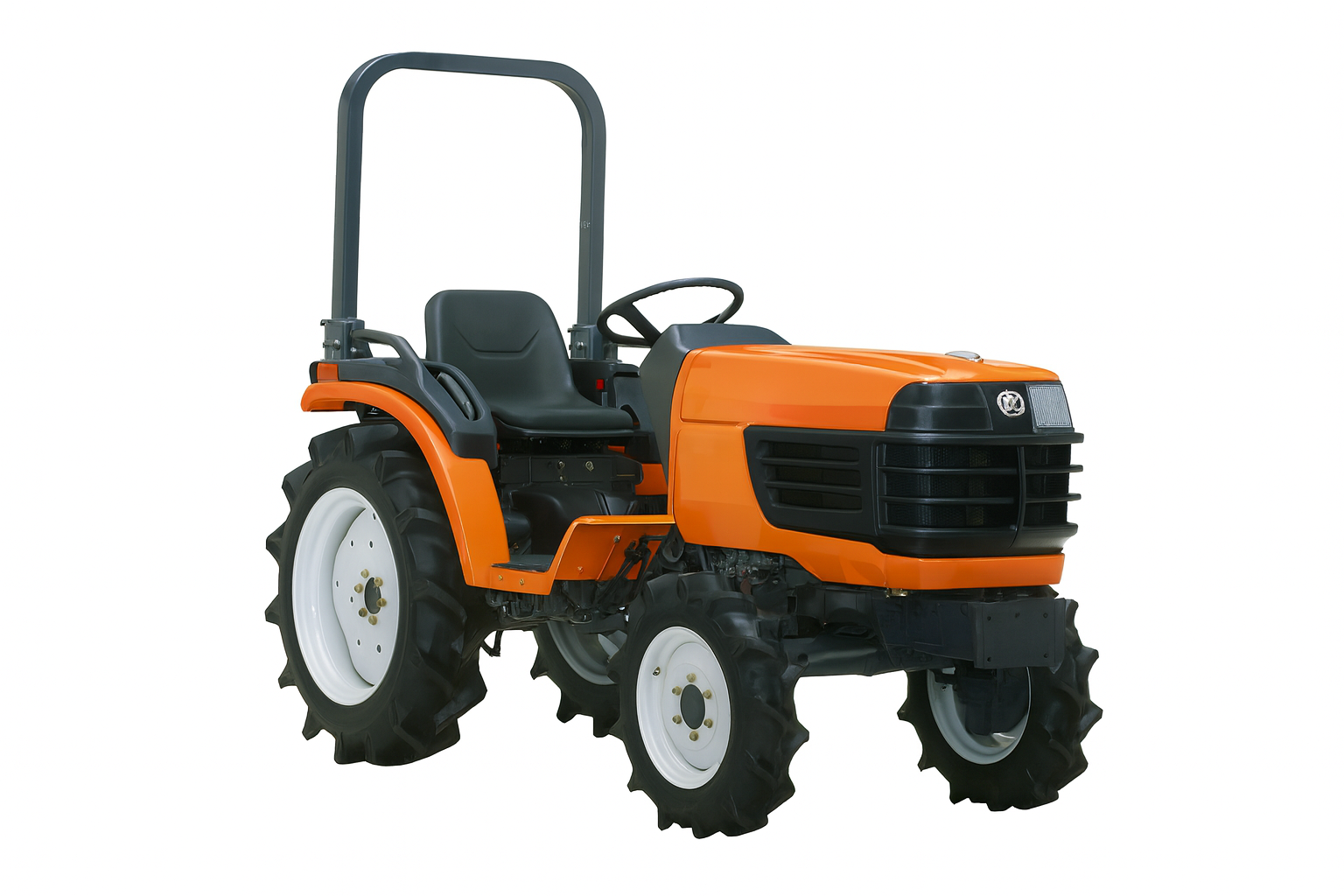

The Kubota GB160 is a compact tractor model, rated at 16 hp. It was manufactured between 2002 and 2003. The GB160 is equipped with a 3-cylinder diesel liquid-cooled engine, transmitting power through a 4-wheel drive system and a 9-speed gearbox. Its listed weight ranges from 1521 to 1576 pounds, suitable for tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1521 to 1576 pounds
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
16 hp
Recorded weight
689 kg
Transmissions
9-speed gear
Production years
2002-2003
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Variants
GB160FGlideshiftReference
Engine
Kubota 0.9L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine11.8 kWReference
Kubota D905Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 74 mmReference
Power11.8 kWReference
Rated RPM2600Reference
StarternegativeReference
Starter volts12Reference
Transmission
9-speed gearReference
18-speedReference
Gear Weight689 kgReference
TypegearReference
Gears9 forward and 3 reverseReference
Three gears, plus reverse, in three ranges.Reference
TransmissionGlideshiftReference
Gears18 forward and 9 reverseReference
Six forward and three reverse gears in three ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Controlposition controlReference
Rear PTO Type451/769/1207 (1.375)Reference
Dimensions
Wheelbase135 cmReference
Weight1521 to 1576 poundsReference
Front tire6-12Reference
Rear tire8.3-20Reference
Standard tires (ag)Front: 6-12. Rear: 8.3-20Reference
Length231 cmReference
Width110 cmReference
Height (ROPS)184 cmReference
Glideshift Weight714 kgReference
Ground clearance31 cmReference
Front tread84 cmReference
Rear tread81/89 cmReference
Electrical
GroundelectricReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
