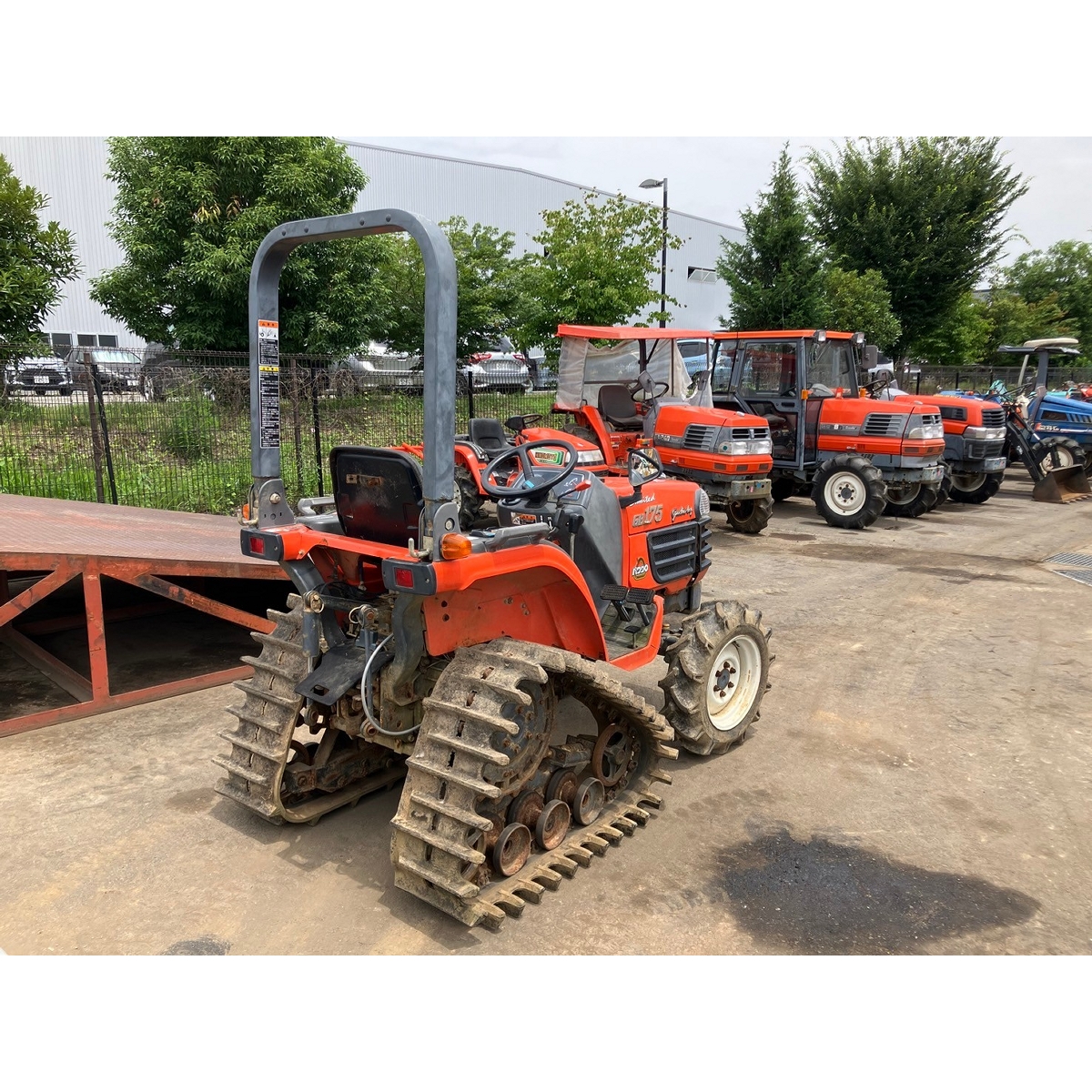

The Kubota GB175 is a compact tractor with a rated output of 17 hp, making it a suitable option for smaller-scale operations. Produced from 2004 to 2006, the GB175 features a 3-cylinder diesel liquid-cooled engine coupled with a 6-speed gearbox and four-wheel drive system. The listed weight of the tractor is 565 kg, with a capacity to handle land areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
565 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
17 hp
Recorded weight
565 kg
Transmissions
6-speed gear
Production years
2004-2006
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 1.0L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine12.5 kWReference
Kubota D1005Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 74 mmReference
Power12.5 kWReference
Rated RPM2500Reference
StarternegativeReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Controlposition controlReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase127 cmReference
Weight565 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length204 cmReference
Width106 cmReference
Height (ROPS)183 cmReference
Ground clearance28 cmReference
Front tread74 cmReference
Rear tread72 to 87 cmReference
Electrical
GroundelectricReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
