Tractor · 1997Unverified

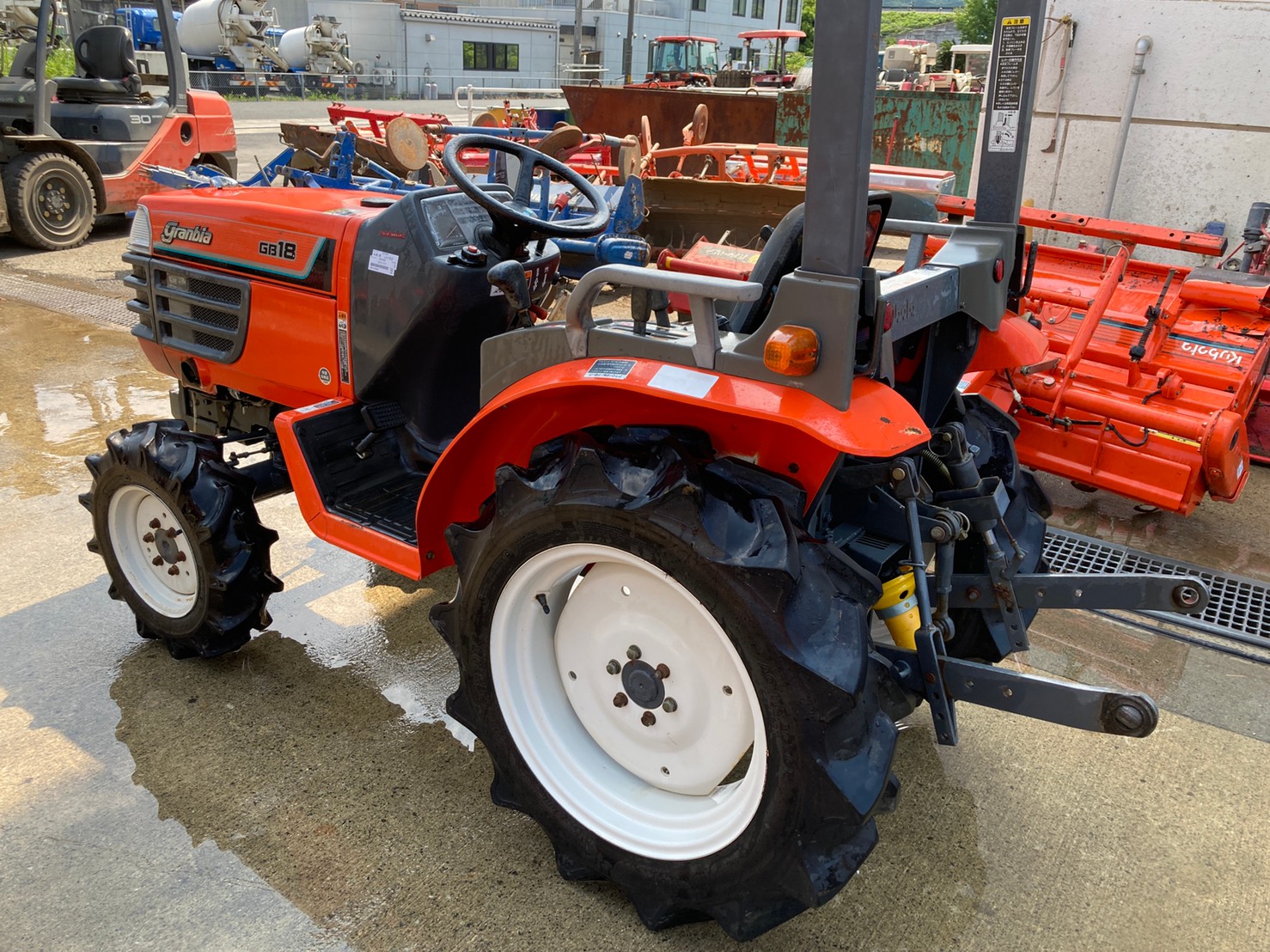

Kubota GB18
Kubota GB18 — GB Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1521 to 1565 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Variants
GB18FGlideshiftReference
Engine
Kubota 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine13.2 kWReference
Kubota D1005Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 74 mmReference
Power13.2 kWReference
Rated RPM2600Reference
StarternegativeReference
Starter volts12Reference
Transmission
6-speed gearReference
18-speedReference
Gear Weight689 kgReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears, plus reverse, in two ranges.Reference
TransmissionGlideshiftReference
Gears18 forward and 9 reverseReference
Six forward and three reverse gears in three ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Controlposition controlReference
Rear PTO Type451/769/1207 (1.375)Reference
Dimensions
Wheelbase135 cmReference
Weight1521 to 1565 poundsReference
Front tire6-12Reference
Rear tire8.3-20Reference
Standard tires (ag)Front: 6-12. Rear: 8.3-20Reference
Length231 cmReference
Width103 cmReference
Height (ROPS)184 cmReference
Glideshift Weight709 kgReference
Ground clearance31 cmReference
Front tread84 cmReference
Rear tread81/89 cmReference
Electrical
GroundelectricReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
