Tractor · 1991Unverified

Kubota GL-40

Name: Kubota GL-40
Brand: Kubota

Kubota GL-40 — GL Series · 40 hp. Reference specifications; pending source verification.

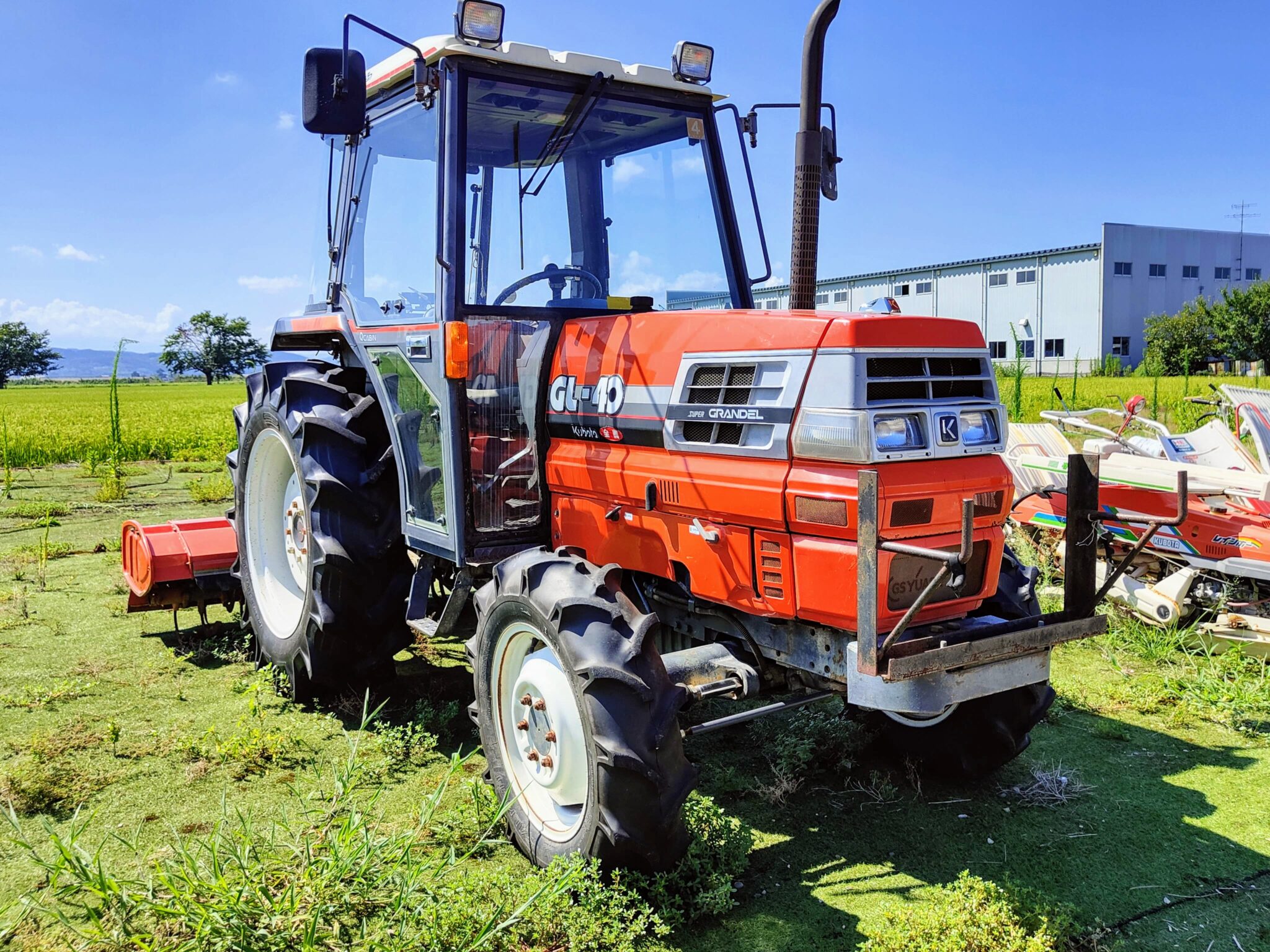

The Kubota GL-40 is a compact tractor model with a power rating of 40 hp. Manufactured from 1991 to 1995, it features a 4-cylinder diesel liquid-cooled engine and a four-wheel drive system with a 16-speed gearbox. The listed weight of the GL-40 ranges from 3527 to 3946 pounds, and it is designed for use in areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

3527 to 3946 pounds

Catalogue coverage

Variants represented

Richest spec table

42 rows

Recorded power

40 hp

Recorded weight

1599 kg

Transmissions

16-speed

Production years

1991-1995

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 2.2L 4-cyl dieselReference

Fuel tank50.0 LReference

Engine29.8 kWReference

Kubota V2203Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke87 x 92 mmReference

Power29.8 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

Gears16 forward and reverseReference

PTO & Hydraulics

Rear TypeJIS1Reference

Rear PTO Type540 (1.375)Reference

Engine RPM585@2600Reference

Engine RPM789@2600Reference

Engine RPM961@2600Reference

Engine RPM1263@2600Reference

Dimensions

Wheelbase184 cmReference

Weight3527 to 3946 poundsReference

Front tire8-18Reference

Rear tire12.4-28Reference

Standard tires (ag)Front: 8-18. Rear: 12.4-28Reference

Length349 cmReference

Width154 cmReference

Height (ROPS)219 cmReference

Height (cab)233 cmReference

ROPS Weight1599 kgReference

Cab Weight1789 kgReference

Ground clearance36 cmReference

Front tread120 cmReference

Rear tread115 to 161 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
