Tractor · 1991Unverified

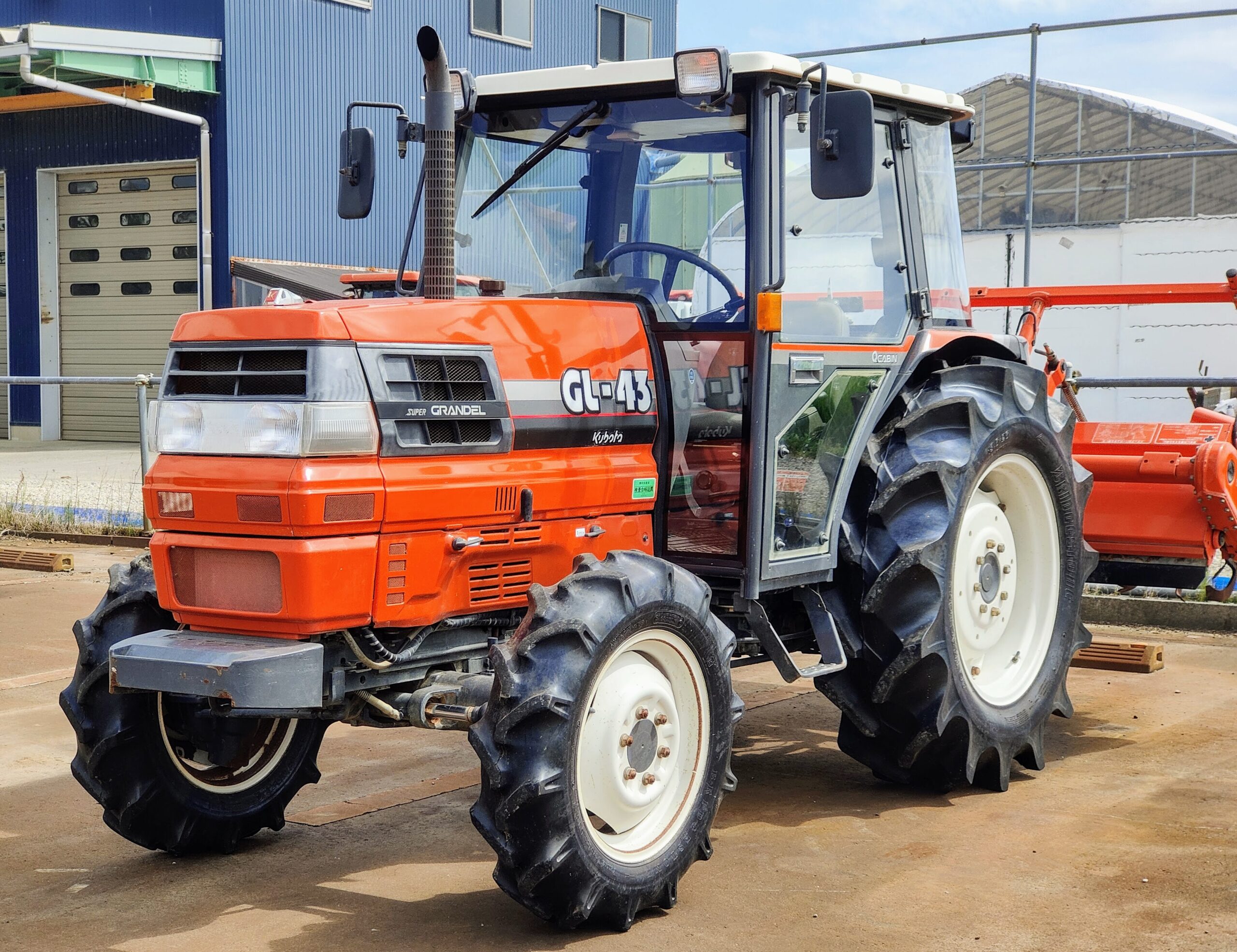

Kubota GL-43
Kubota GL-43 — GL Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
3527 to 3880 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank50.0 LReference
Engine32.1 kWReference
Kubota D1503-TIReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power32.1 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM578@2700Reference
Engine RPM781@2700Reference
Engine RPM950@2700Reference
Engine RPM1249@2700Reference
Engine RPM-781@2700Reference
Dimensions
Wheelbase184 cmReference
Weight3527 to 3880 poundsReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length349 cmReference
Width148 cmReference
Height (ROPS)198 cmReference
Height (cab)199 cmReference
ROPS Weight1599 kgReference
Cab Weight1759 kgReference
Ground clearance36 cmReference
Front tread120 cmReference
Rear tread114 to 152 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
