Tractor · 1995Unverified

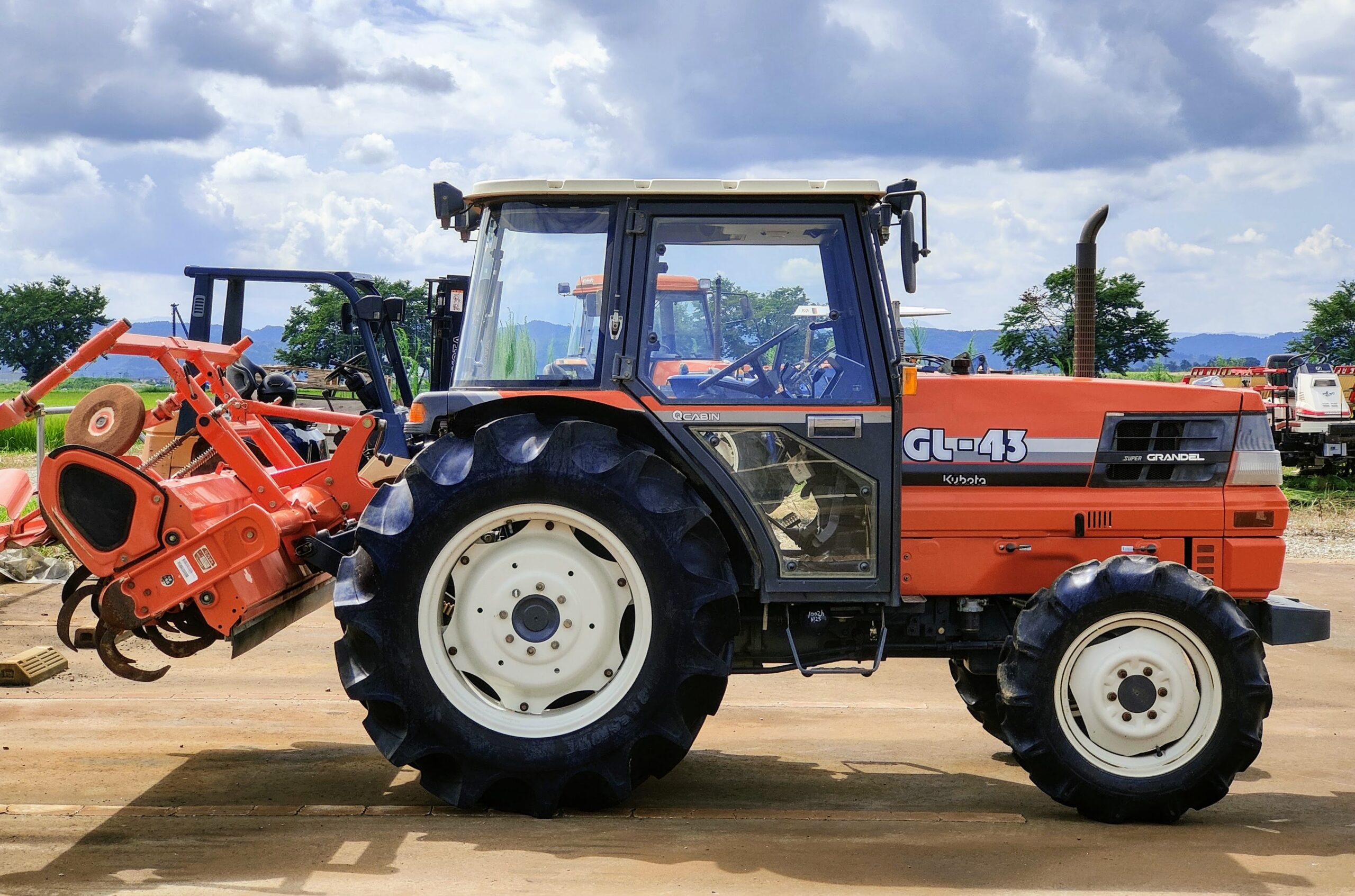

Kubota GL-430

Name: Kubota GL-430
Brand: Kubota

Kubota GL-430 — GL Series · 43 hp. Reference specifications; pending source verification.

The Kubota GL-430 is a tractor model with a rated power output of approximately 43 horsepower, categorising it as a lighter model within its class. Available from 1995 to 1998, this model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a 16-speed gearbox. The tractor's operating weight is listed as 3527 to 3825 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

43 hp

Weight

3527 to 3825 pounds

Catalogue coverage

Variants represented

Richest spec table

43 rows

Recorded power

43 hp

Recorded weight

1599 kg

Transmissions

16-speed

Production years

1995-1998

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank50.0 LReference

Engine32.1 kWReference

Kubota D1503-TIReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power32.1 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

Gears16 forward and reverseReference

PTO & Hydraulics

Rear TypeJIS1Reference

Rear PTO Type540 (1.375)Reference

Engine RPM578@2700Reference

Engine RPM781@2700Reference

Engine RPM950@2700Reference

Engine RPM1249@2700Reference

Engine RPM-781@2700Reference

Dimensions

Wheelbase184 cmReference

Weight3527 to 3825 poundsReference

Front tire8-18Reference

Rear tire13.6-26Reference

Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference

Length349 cmReference

Width148 cmReference

Height (ROPS)198 cmReference

Height (cab)199 cmReference

ROPS Weight1599 kgReference

Cab Weight1735 kgReference

Ground clearance36 cmReference

Front tread120 cmReference

Rear tread114 to 152 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
