Tractor · 1995Unverified

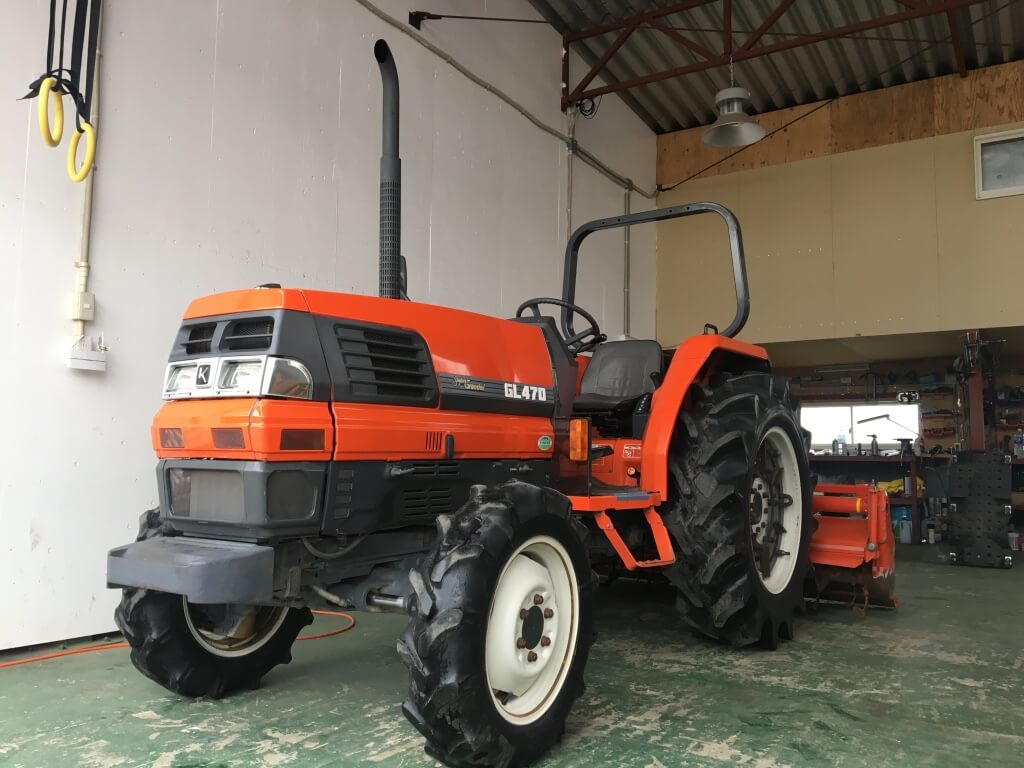

Kubota GL-470
Kubota GL-470 — GL Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
3748 to 4211 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 2.5L 5-cyl dieselReference
Fuel tank50.0 LReference
Engine35.0 kWReference
Kubota F2503Reference
dieselReference
5-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke84 x 91 mmReference
Power35.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM585@2600Reference
Engine RPM789@2600Reference
Engine RPM961@2600Reference
Engine RPM1263@2600Reference
Engine RPM-789@2600Reference
Dimensions
Wheelbase198 cmReference
Weight3748 to 4211 poundsReference
Front tire8-18Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-28Reference
Length362 cmReference
Width155 cmReference
Height (ROPS)219 cmReference
Height (cab)235 cmReference
ROPS Weight1700 kgReference
Cab Weight1910 kgReference
Ground clearance36 cmReference
Front tread120 cmReference
Rear tread115 to 161 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
