Tractor · 1991Unverified

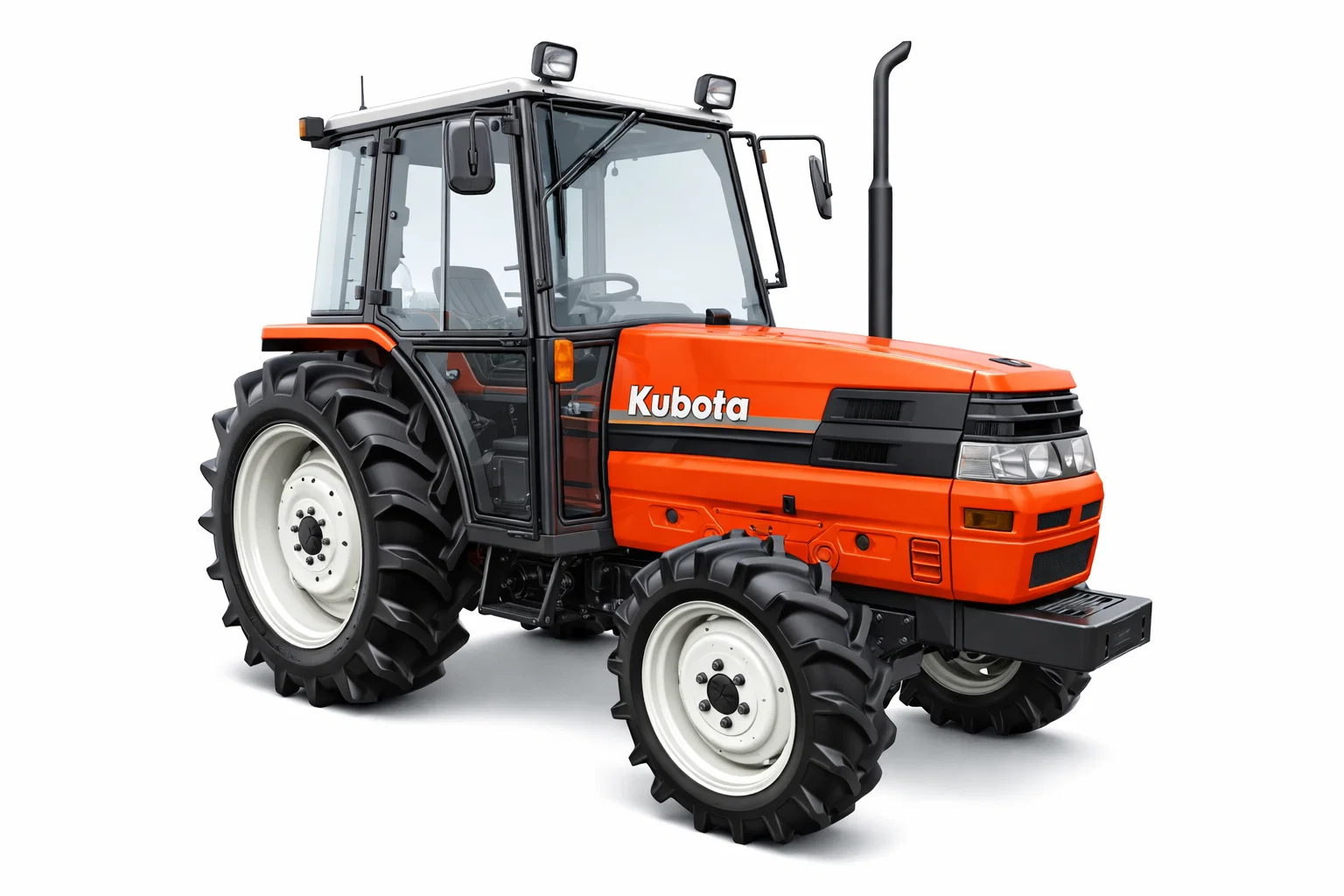

Kubota GL-53
Kubota GL-53 — GL Series · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
3836 to 4255 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 2.7L 5-cyl dieselReference
Fuel tank50.0 LReference
Engine39.5 kWReference
Kubota F2803Reference
dieselReference
5-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke86 x 91 mmReference
Power39.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM585@2600Reference
Engine RPM789@2600Reference
Engine RPM961@2600Reference
Engine RPM1263@2600Reference
Dimensions
Wheelbase198 cmReference
Weight3836 to 4255 poundsReference
Front tire8.3-20Reference
Rear tire12.4-32Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-32Reference
Length362 cmReference
Width150 cmReference
Height (ROPS)223 cmReference
Height (cab)235 cmReference
ROPS Weight1740 kgReference
Cab Weight1930 kgReference
Ground clearance39 cmReference
Front tread122 cmReference
Rear tread117 to 156 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
