Tractor · 1995Unverified

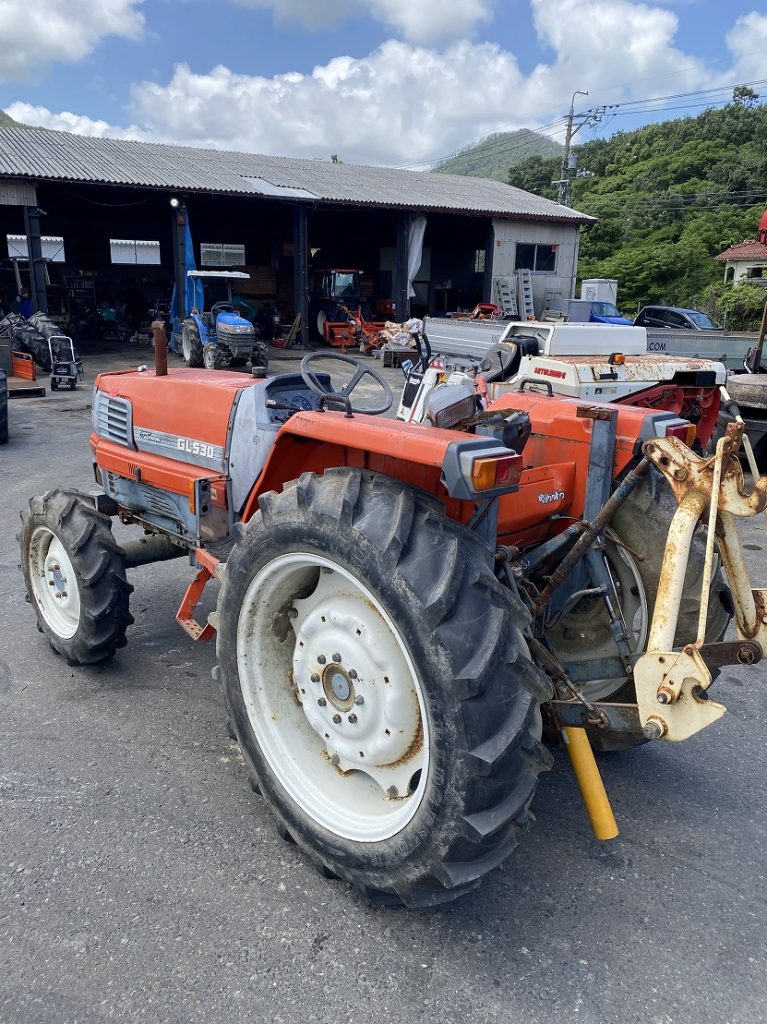

Kubota GL-530

Kubota GL-530 — GL Series · 53 hp. Reference specifications; pending source verification.

The Kubota GL-530 is a compact tractor with a rated power output of 53 hp. Manufactured from 1995 to 1998, it features a 5-cylinder diesel liquid-cooled engine, driving a four-wheel drive system through a 16-speed gearbox. The listed weight of the tractor ranges from 3836 to 4317 pounds. It is designed for use on land areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
53 hp
Weight
3836 to 4317 pounds

Catalogue coverage

Variants represented
2
Richest spec table
43 rows
Recorded power
53 hp
Recorded weight
1740 kg
Transmissions
16-speed
Production years
1995-1998
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS. Cab optional.Reference

Engine

Kubota 2.7L 5-cyl dieselReference
Fuel tank50.0 LReference
Engine39.5 kWReference
Kubota F2803Reference
dieselReference
5-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke86 x 91 mmReference
Power39.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference

Transmission

16-speedReference
Gears16 forward and reverseReference

PTO & Hydraulics

Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM585@2600Reference
Engine RPM789@2600Reference
Engine RPM961@2600Reference
Engine RPM1263@2600Reference
Engine RPM-789@2600Reference

Dimensions

Wheelbase198 cmReference
Weight3836 to 4317 poundsReference
Front tire8.3-20Reference
Rear tire12.4-32Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-32Reference
Length362 cmReference
Width150 cmReference
Height (ROPS)223 cmReference
Height (cab)235 cmReference
ROPS Weight1740 kgReference
Cab Weight1958 kgReference
Ground clearance39 cmReference
Front tread122 cmReference
Rear tread117 to 156 cmReference

Electrical

GroundnegativeReference
Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
