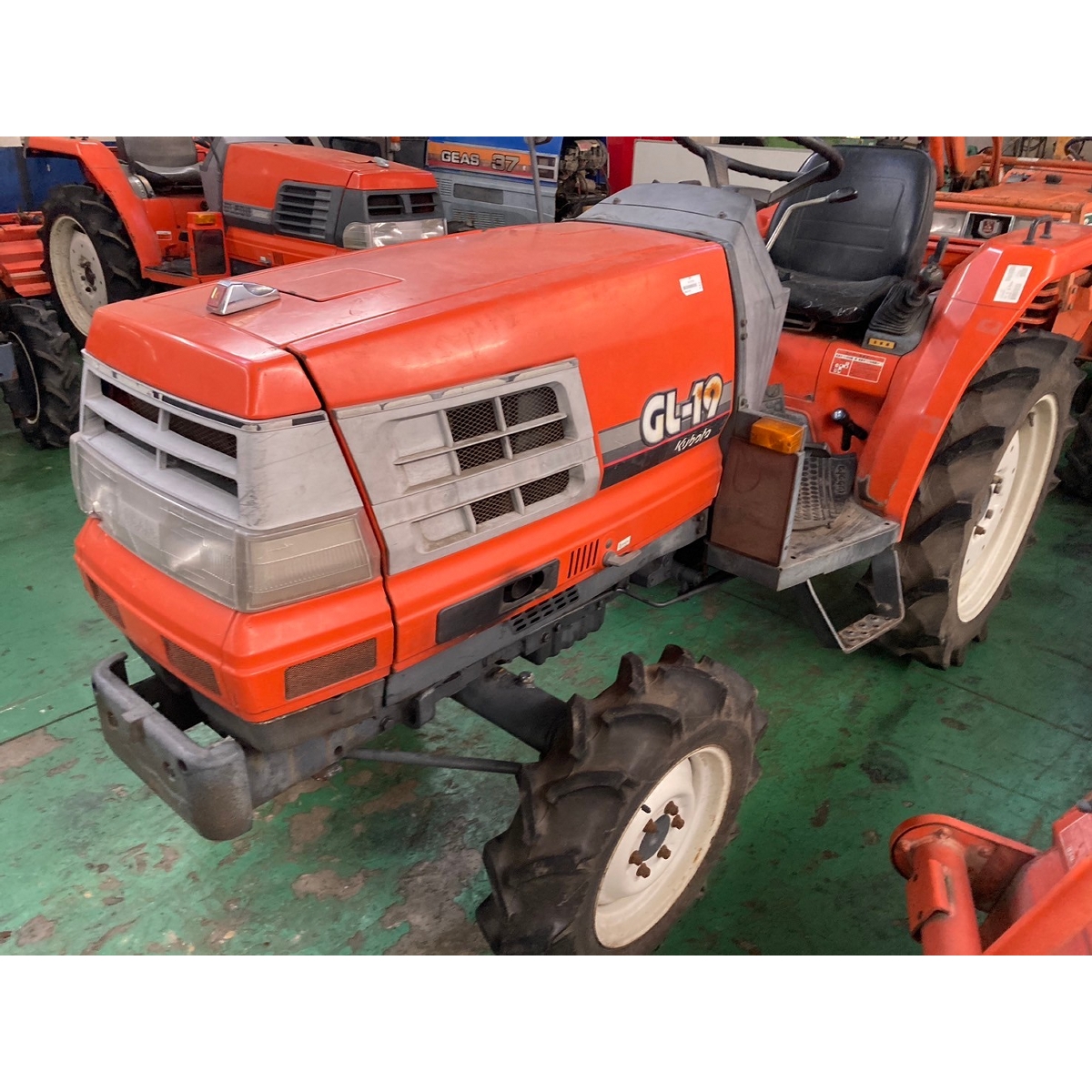

The Kubota GL19 is a compact tractor with a 19 hp rating, one of the smaller options in its class. Produced between 1990 and 1992, it features a 3-cylinder diesel liquid-cooled engine, which drives four-wheel drive through a powershift transmission. The tractor weighs 1020 kg and is suitable for work on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
1020 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
19 hp
Recorded weight
1020 kg
Transmissions
16-speed gear
Production years
1990-1992
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Open operator station.Reference
Engine
Kubota 1.4L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine13.9 kWReference
Kubota D1403Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke79 x 91 mmReference
Power13.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
16-speed power shiftReference
TypegearReference
Gears16 forward and reverseReference
Four gears (1-4) in low/high ranges plus a creeper/field range shift with shuttle.Reference
Typepower shiftReference
Eight power shift gears in two ranges with shuttle.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type546/772/947/1254 (1.375)Reference
Dimensions
Wheelbase154 cmReference
Weight1020 kgReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
Length294 cmReference
Width124 cmReference
Height144 cmReference
Ground clearance33 cmReference
Front tread94 cmReference
Rear tread101/113 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
