Tractor · 1993Unverified

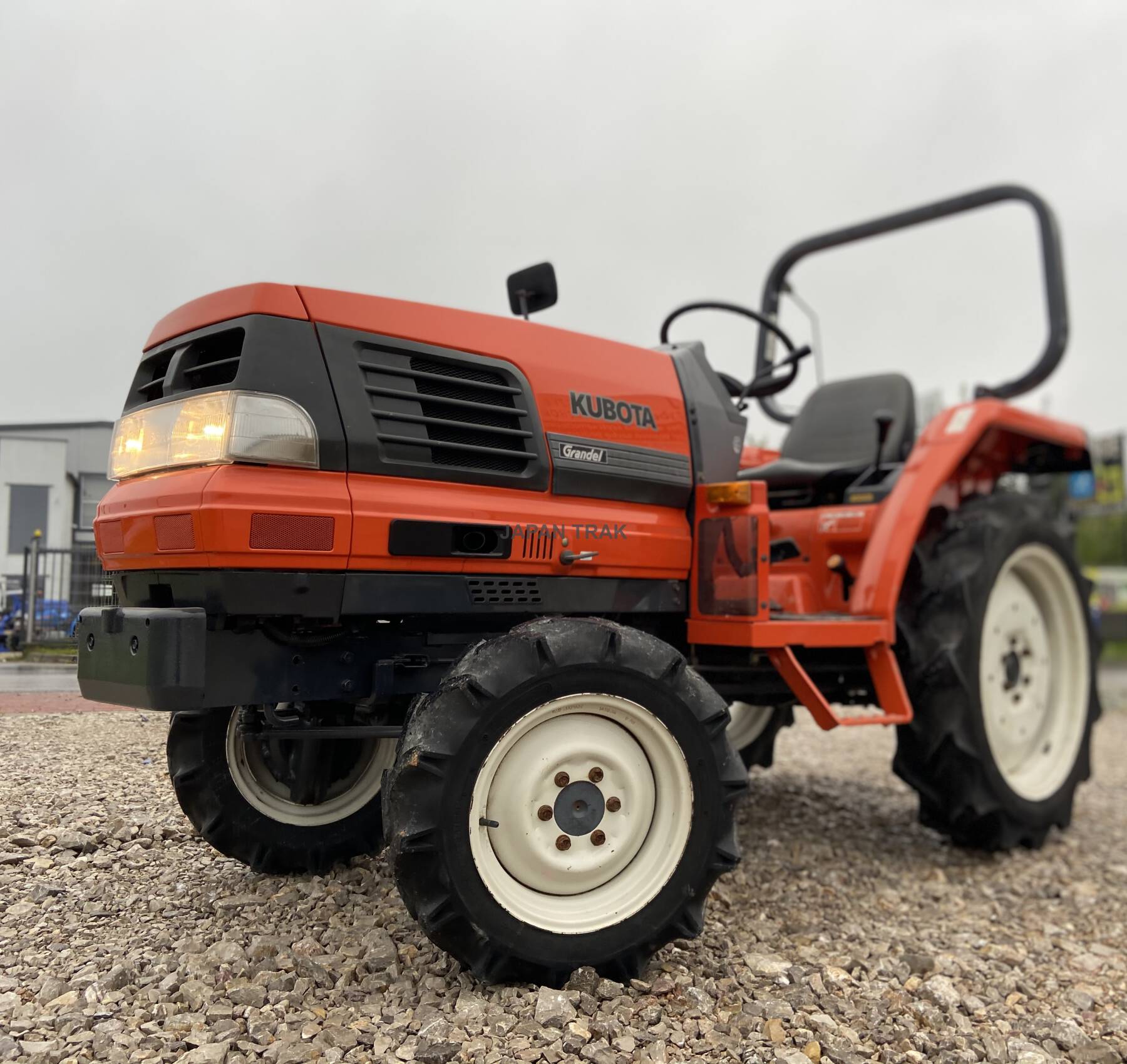

Kubota GL200

Name: Kubota GL200
Brand: Kubota

Kubota GL200 — GL Series · 20 hp. Reference specifications; pending source verification.

The Kubota GL200 is a compact tractor with a rated output of 20 hp, making it a suitable option for smaller-scale operations. Produced from 1993 to 1995, this model features a 3-cylinder diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed weight of the Kubota GL200 ranges from 2414 to 2745 pounds. It is designed to handle jobs of approximately 200 acres in size.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

2414 to 2745 pounds

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

20 hp

Recorded weight

1094 kg

Transmissions

16-speed gear

Production years

1993-1995

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Variants

GL200ROPSReference

GL200QcabReference

Engine

Kubota 1.4L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine14.7 kWReference

Kubota D1403Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Bore/Stroke79 x 91 mmReference

Power14.7 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed gearReference

16-speed power shiftReference

TypegearReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.Reference

Typepower shiftReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type546/772/947/1254 (1.375)Reference

Dimensions

ROPS Wheelbase154 cmReference

Cab Wheelbase158 cmReference

Weight2414 to 2745 poundsReference

Front tire6-14Reference

Rear tire8.3-24Reference

Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference

ROPS Length294 cmReference

Cab Length300 cmReference

ROPS Width124 cmReference

Cab Width130 cmReference

Height (ROPS)195 cmReference

Height (cab)197 cmReference

ROPS Weight1094 kgReference

Cab Weight1245 kgReference

Ground clearance33 cmReference

Front tread94 cmReference

Rear tread101/113 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
