Tractor · 1996Unverified

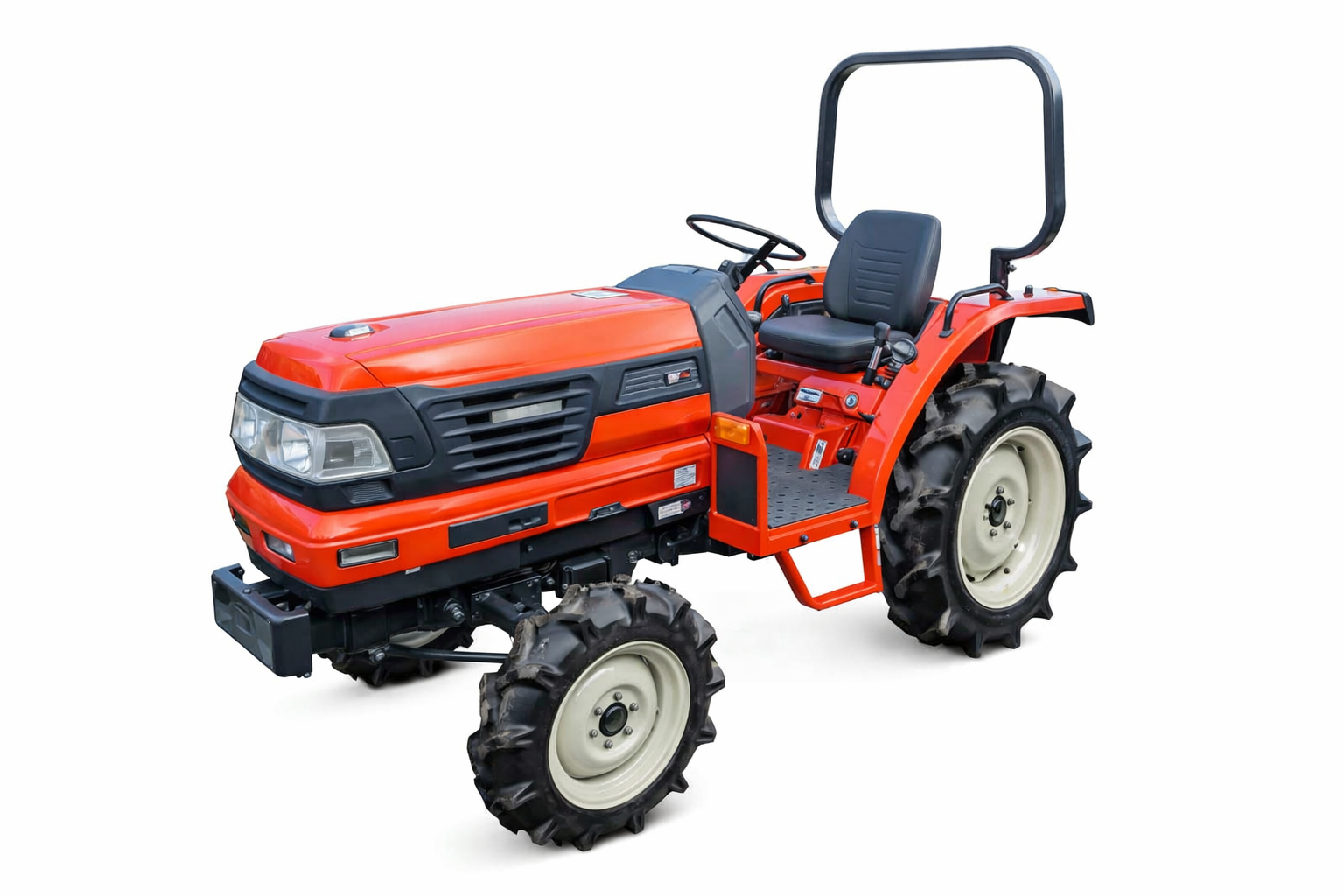

Kubota GL201
Kubota GL201 — GL Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
2414 to 2822 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 1.4L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine15.4 kWReference
Kubota D1403Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke79 x 91 mmReference
Power15.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
16-speed power shiftReference
TypegearReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.Reference
TransmissionU-ShiftReference
Typepower shiftReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM568@2600Reference
Engine RPM803@2600Reference
Engine RPM985@2600Reference
Engine RPM1304@2600Reference
Engine RPM-803@2600Reference
Dimensions
ROPS Wheelbase154 cmReference
Cab Wheelbase158 cmReference
Weight2414 to 2822 poundsReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
ROPS Length294 cmReference
Cab Length300 cmReference
Width121 cmReference
Height (ROPS)195 cmReference
Height (cab)198 cmReference
ROPS Weight1094 kgReference
Cab Weight1280 kgReference
Ground clearance33 cmReference
Front tread94 cmReference
Rear tread101 to 113 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
