Tractor · 1990Unverified

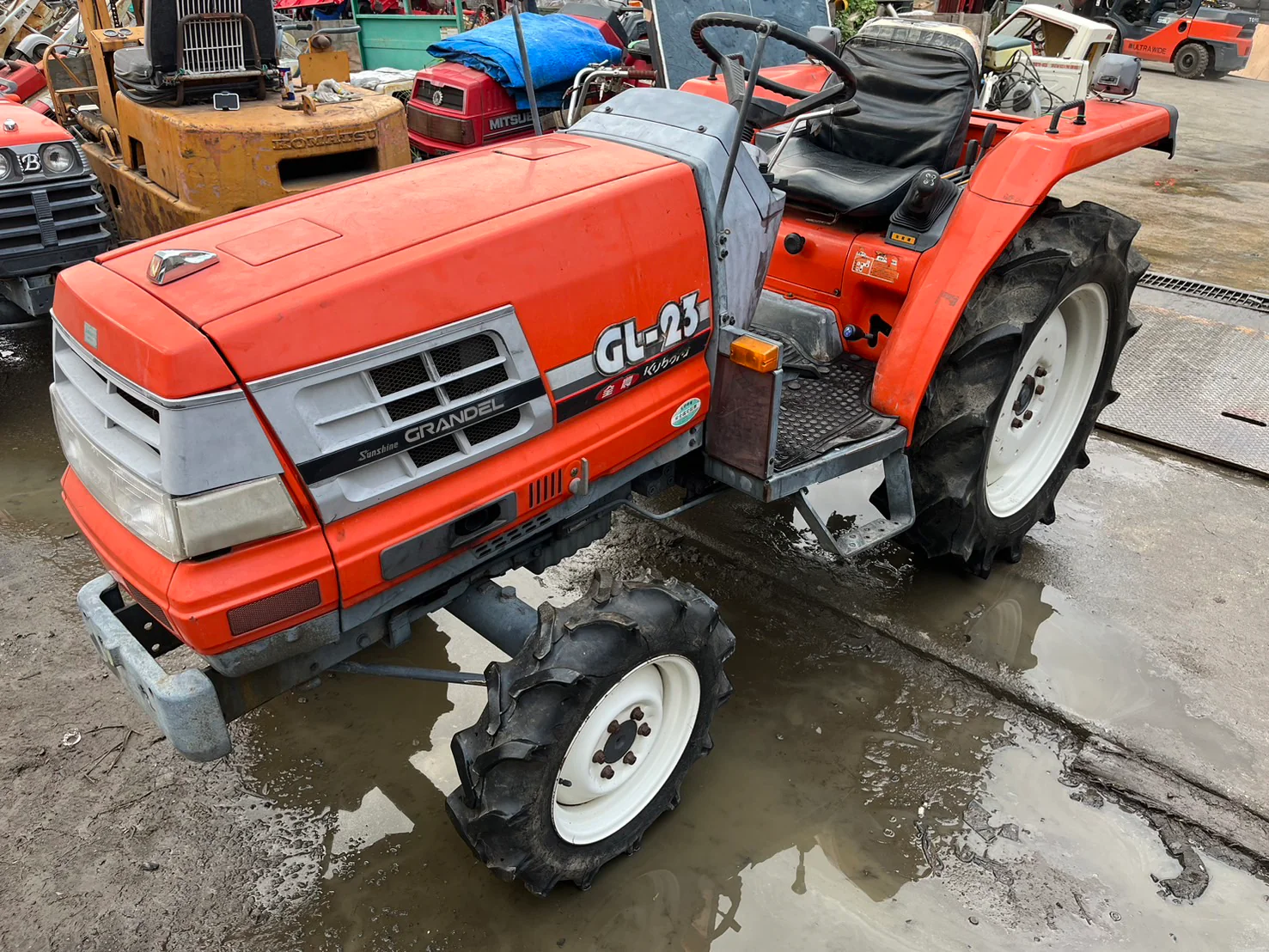

Kubota GL23
Kubota GL23 — GL Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1060 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Open operator station.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine16.9 kWReference
Kubota D1463Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke82 x 92 mmReference
Power16.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
16-speed power shiftReference
TypegearReference
Gears16 forward and reverseReference
Four gears (1-4) in low/high ranges plus a creeper/field range shift with shuttle.Reference
Typepower shiftReference
Eight power shift gears in two ranges with shuttle.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type546/772/947/1254 (1.375)Reference
Dimensions
Wheelbase154 cmReference
Weight1060 kgReference
Front tire6-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference
Length294 cmReference
Width127 cmReference
Height145 cmReference
Ground clearance35 cmReference
Front tread94 cmReference
Rear tread101/113 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
