Tractor · 1993Unverified

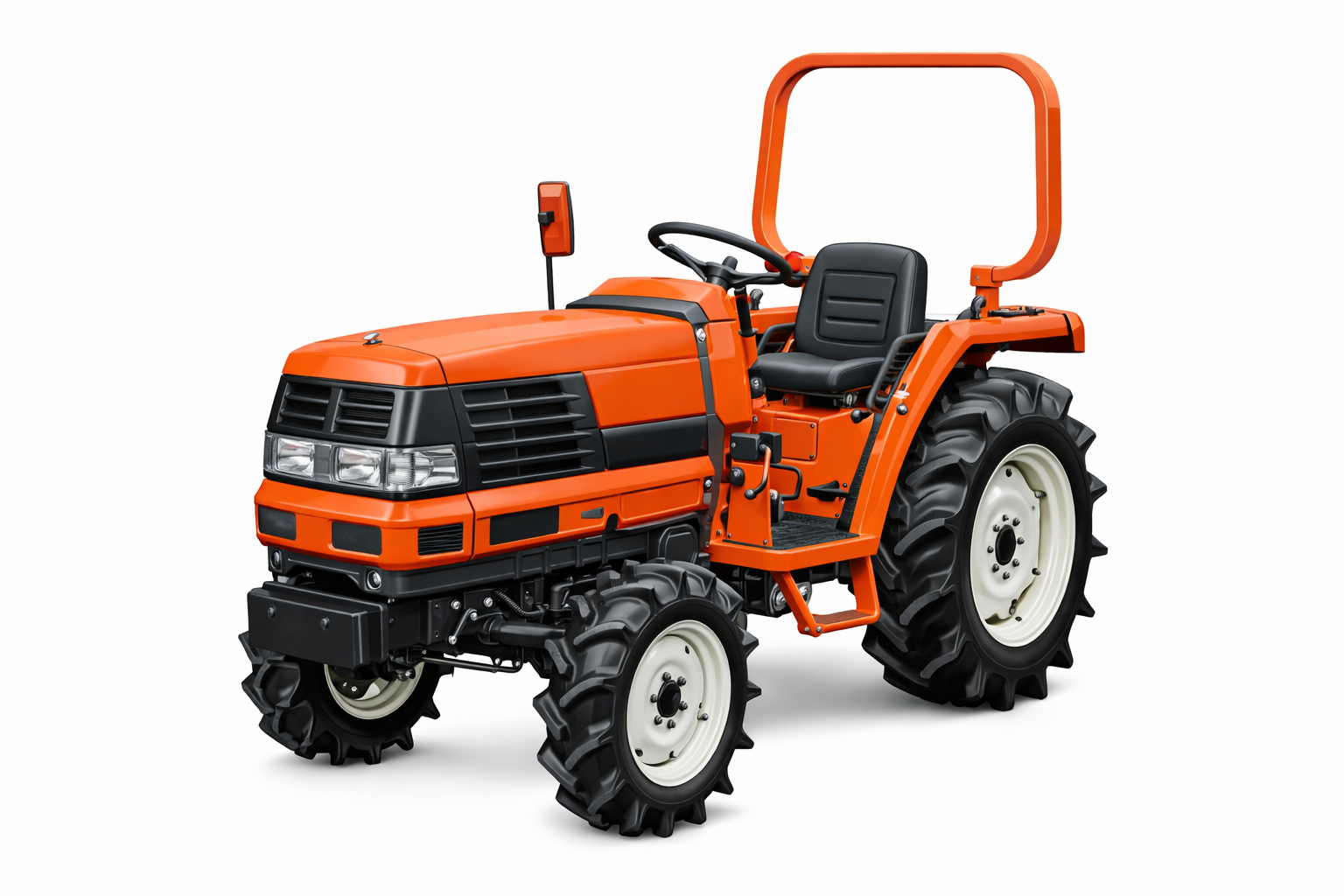

Kubota GL240

Name: Kubota GL240
Brand: Kubota

Kubota GL240 — GL Series · 24 hp. Reference specifications; pending source verification.

The Kubota GL240 is a compact tractor with an output of 24 hp, placing it among the smaller options in its class. Produced from 1993 to 1995, this model features a 3-cylinder diesel liquid-cooled engine, which transmits power through a four-wheel drive system and a powershift transmission. The tractor's weight ranges from 2436 to 2833 pounds. It is designed to handle tasks of approximately up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Weight

2436 to 2833 pounds

Catalogue coverage

Variants represented

Richest spec table

50 rows

Recorded power

24 hp

Recorded weight

1104 kg

Transmissions

16-speed gear

Production years

1993-1995

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Variants

GL240ROPSReference

GL240QcabReference

GL240Jlarge wheelReference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine17.7 kWReference

Kubota D1463Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke82 x 92 mmReference

Power17.7 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed gearReference

16-speed power shiftReference

TypegearReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.Reference

Typepower shiftReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type546/772/947/1254 (1.375)Reference

Dimensions

ROPS Wheelbase154 cmReference

Cab Wheelbase158 cmReference

Weight2436 to 2833 poundsReference

Front tire6-14Reference

Rear tire9.5-24Reference

Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference

ROPS Length294 cmReference

Cab Length300 cmReference

ROPS Width124 cmReference

Cab Width130 cmReference

Height (ROPS)198 cmReference

Height (cab)199 cmReference

ROPS Weight1104 kgReference

Cab Weight1285 kgReference

Ground clearance35 cmReference

Front tread94 cmReference

Rear tread101/113 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
