The Kubota GL25 is a tractor model with a rated output of 23 hp, making it a compact option in its class. It was manufactured from 1990 to 1992. The tractor features a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission, and has a listed weight of 1129 kg. The GL25 is suited for tasks covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1129 kg
Catalogue coverage
Variants represented
2
Richest spec table
45 rows
Recorded power
23 hp
Recorded weight
1129 kg
Transmissions
16-speed gear
Production years
1990-1992
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Open operator station.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine18.4 kWReference
Kubota D1463Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke82 x 92 mmReference
Power18.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference

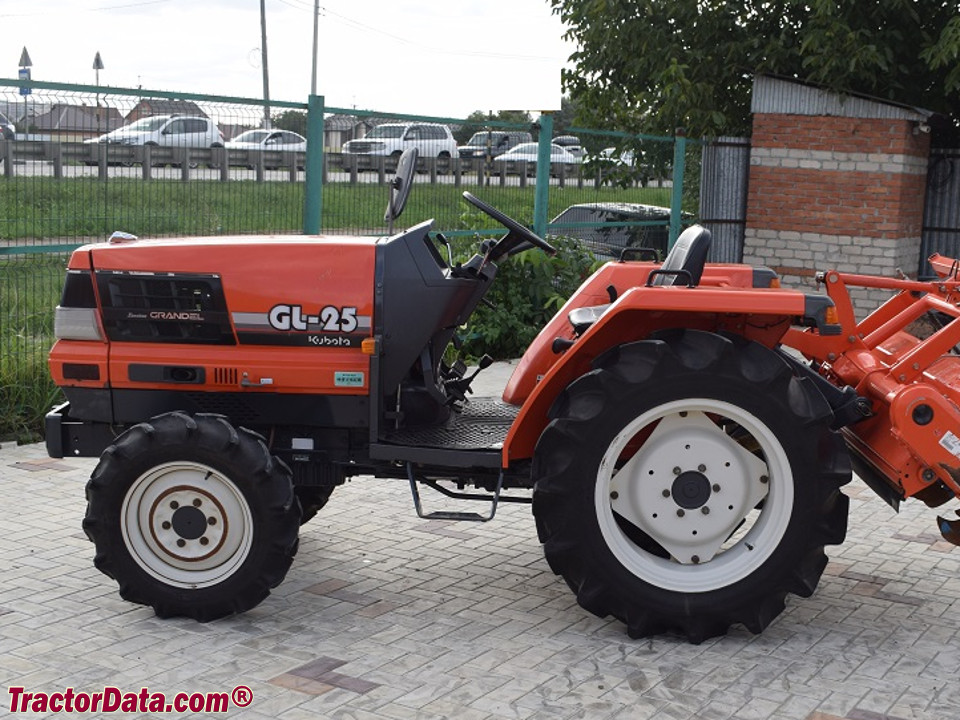

Image courtesy of Agro-EngineeringReference
Transmission
16-speed gearReference
16-speed power shiftReference
TypegearReference
Gears16 forward and reverseReference
Four gears (1-4) in low/high ranges plus a creeper/field range shift with shuttle.Reference
Typepower shiftReference
Eight power shift gears in two ranges with shuttle.Reference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Pump flow21.2 lpmReference
Rear TypeIReference
Rear lift934 kgReference
Rear PTO Type568/803/985/1304 (1.375)Reference
Dimensions
Wheelbase164 cmReference
Weight1129 kgReference
Front tire7-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length305 cmReference
Width135 cmReference
Height145 cmReference
Ground clearance34 cmReference
Front tread107 cmReference
Rear tread104 to 134 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
