Tractor · 1990Unverified

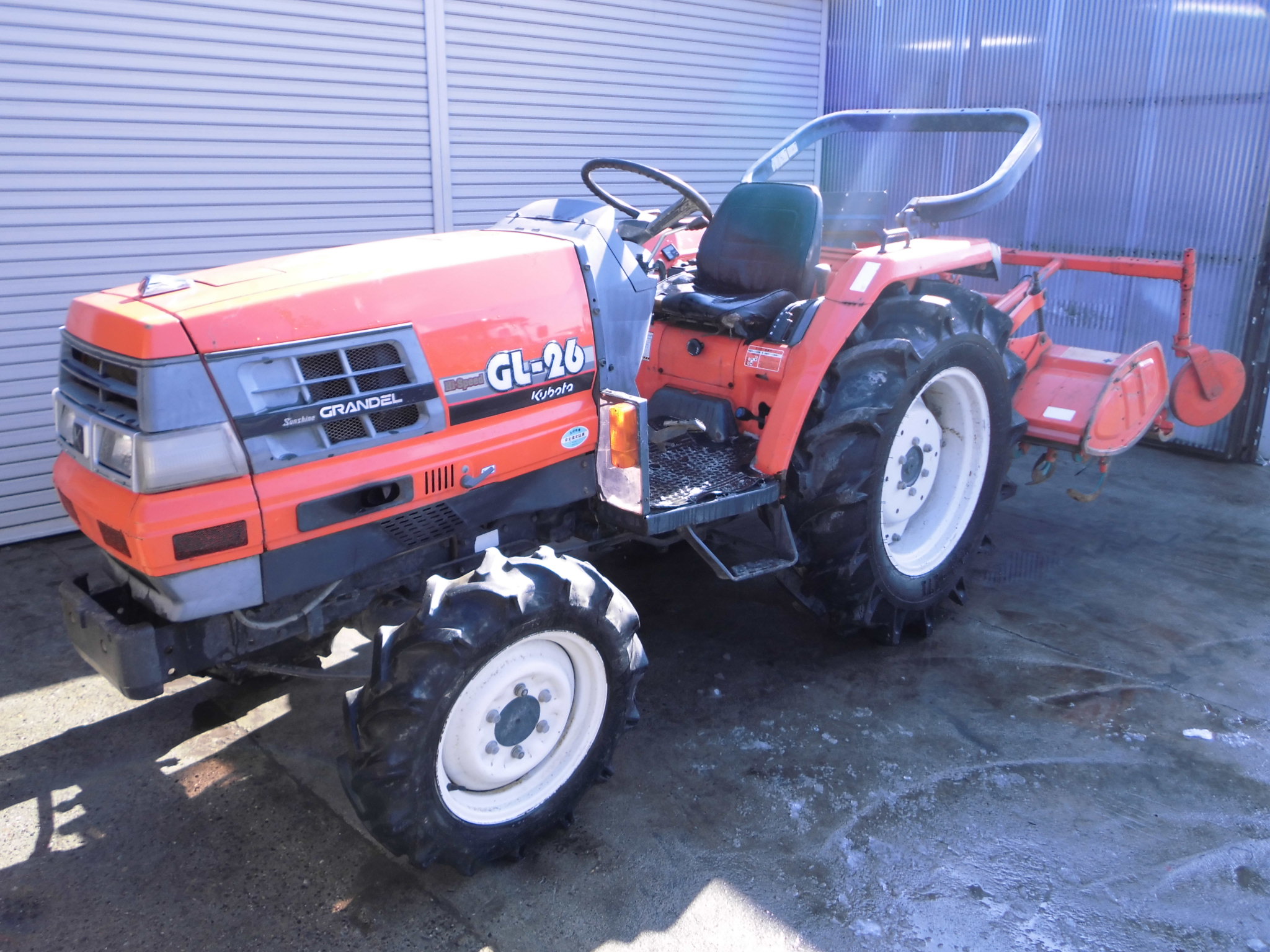

Kubota GL26
Kubota GL26 — GL Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1200 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine19.1 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power19.1 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed power shiftReference
Typepower shiftReference
Gears16 forward and reverseReference
Eight power shift gears in two ranges with shuttle.Reference
PTO & Hydraulics
PTO (claimed)18.1 kWReference
Pump flow21.2 lpmReference
Rear TypeIReference
Rear lift934 kgReference
Rear PTO Type568/803/985/1304 (1.375)Reference
Dimensions
Wheelbase164 cmReference
Weight1200 kgReference
Front tire7-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length305 cmReference
Width135 cmReference
Height (ROPS)194 cmReference
Ground clearance34 cmReference
Front tread107 cmReference
Rear tread104 to 134 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
