Tractor · 1990Unverified
Kubota GL27
Kubota GL27 — GL Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1149 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Open operator station.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine19.8 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power19.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference

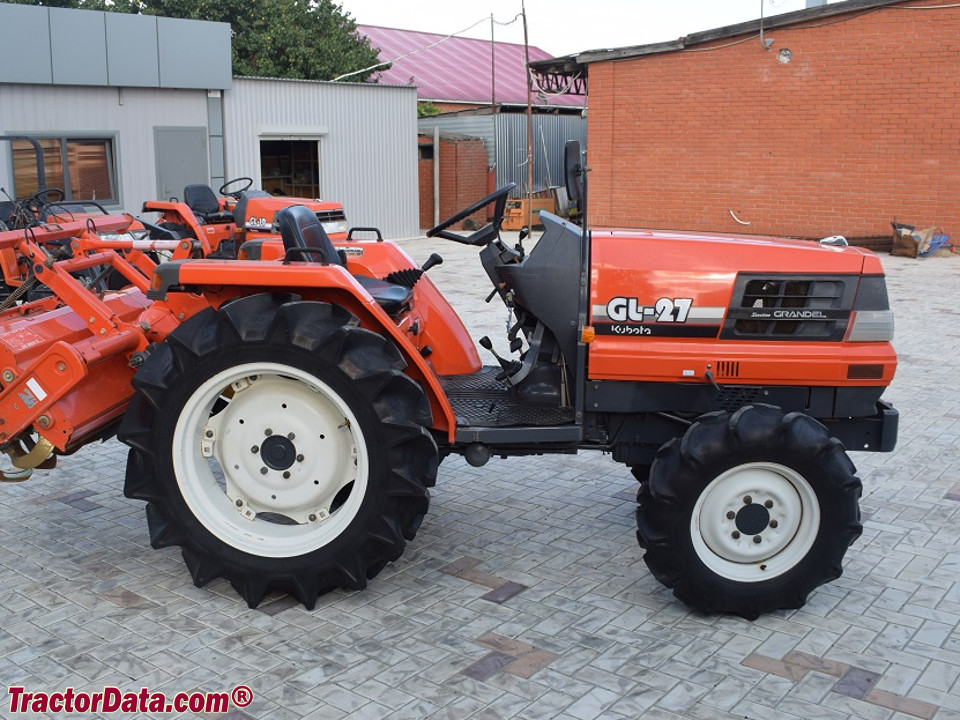

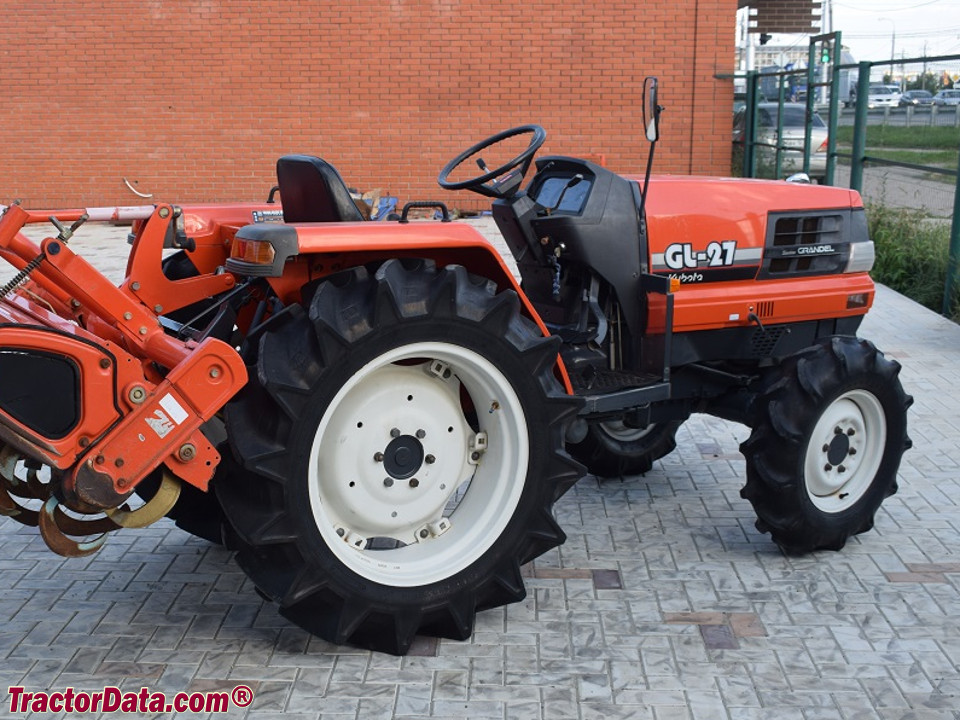

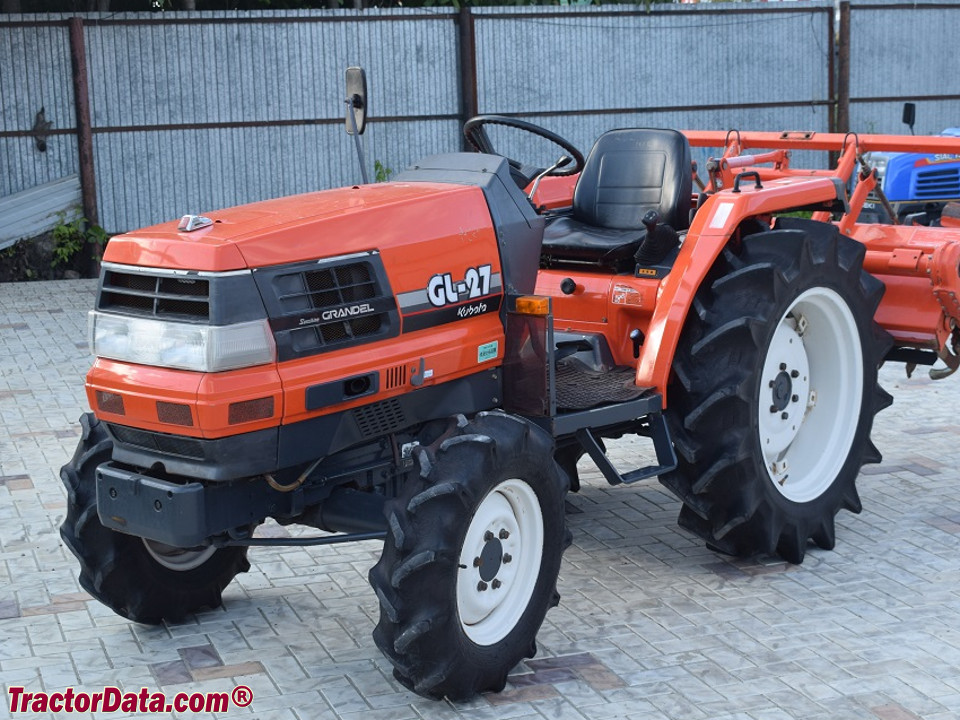

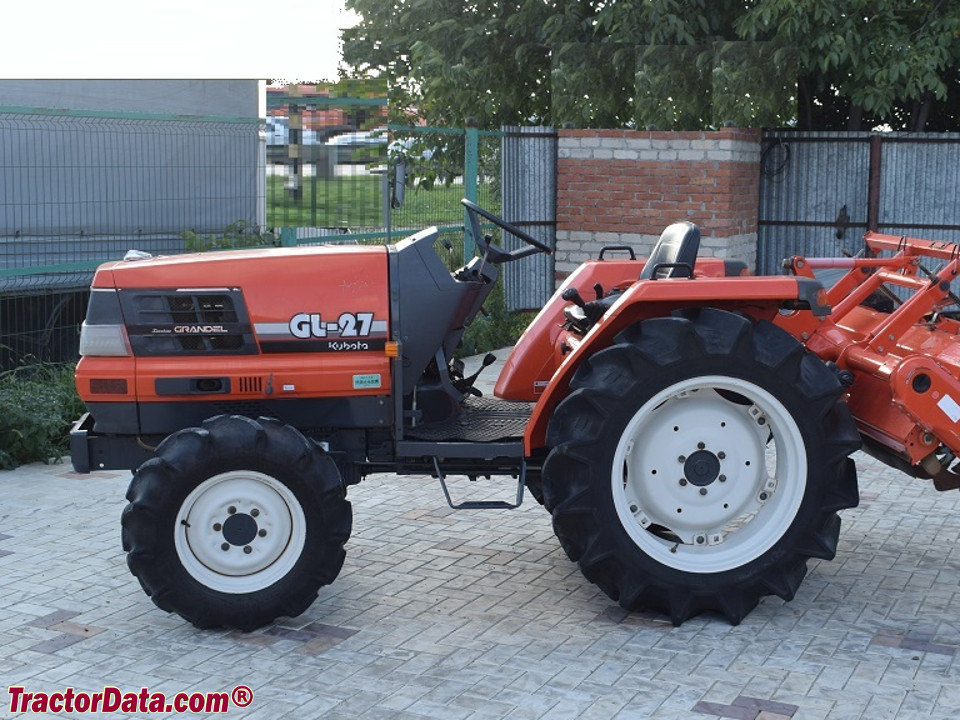

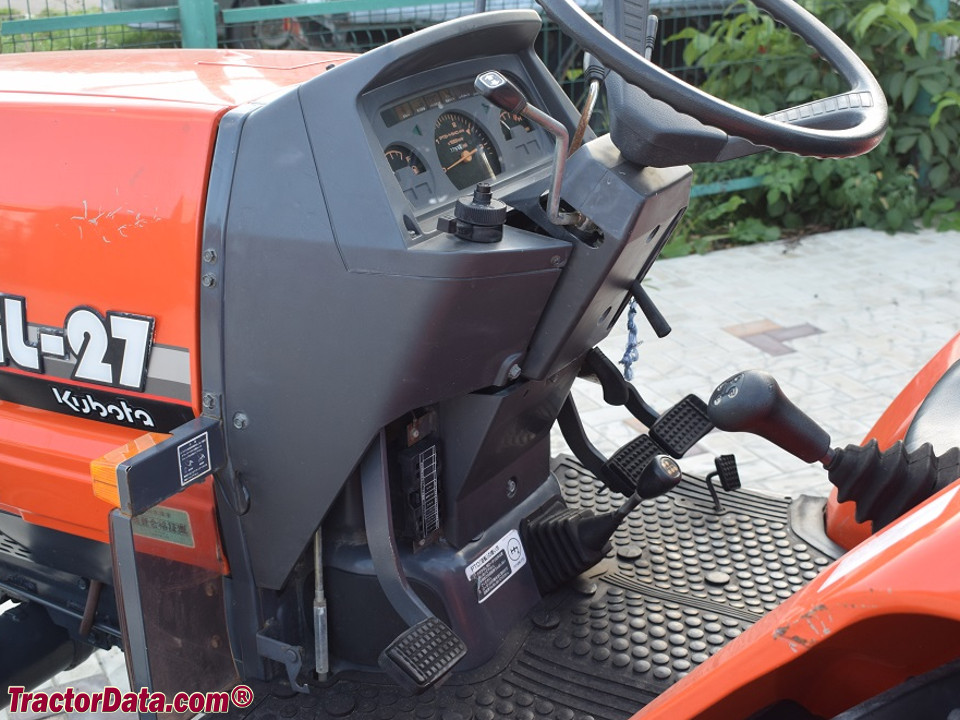

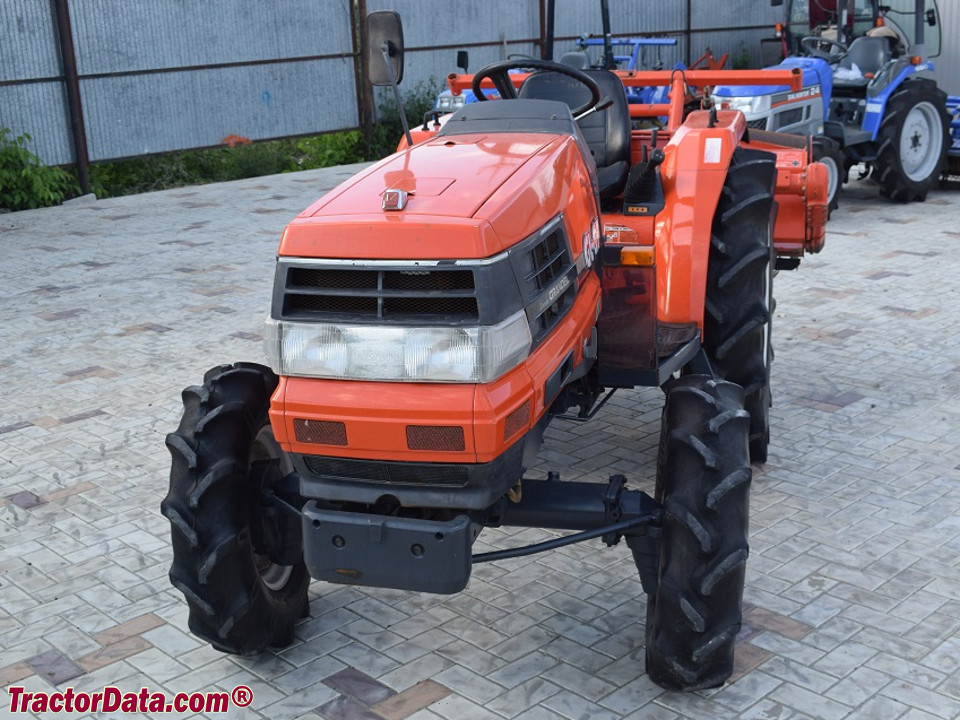

Image courtesy of Agro-EngineeringReference
Transmission
16-speed gearReference
16-speed power shiftReference
TypegearReference
Gears16 forward and reverseReference
Four gears (1-4) in low/high ranges plus a creeper/field range shift with shuttle.Reference
Typepower shiftReference
Eight power shift gears in two ranges with shuttle.Reference
PTO & Hydraulics
PTO (claimed)18.8 kWReference
Pump flow21.2 lpmReference
Rear TypeIReference
Rear lift945 kgReference
Rear PTO Type544/770/944/1250 (1.375)Reference
Dimensions
Wheelbase164 cmReference
Weight1149 kgReference
Front tire8-16Reference
Rear tire11.2-26Reference
Standard tires (ag)Front: 8-16. Rear: 11.2-26Reference
Length305 cmReference
Width141 cmReference
Height147 cmReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread113 to 141 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
