Tractor · 1993Unverified

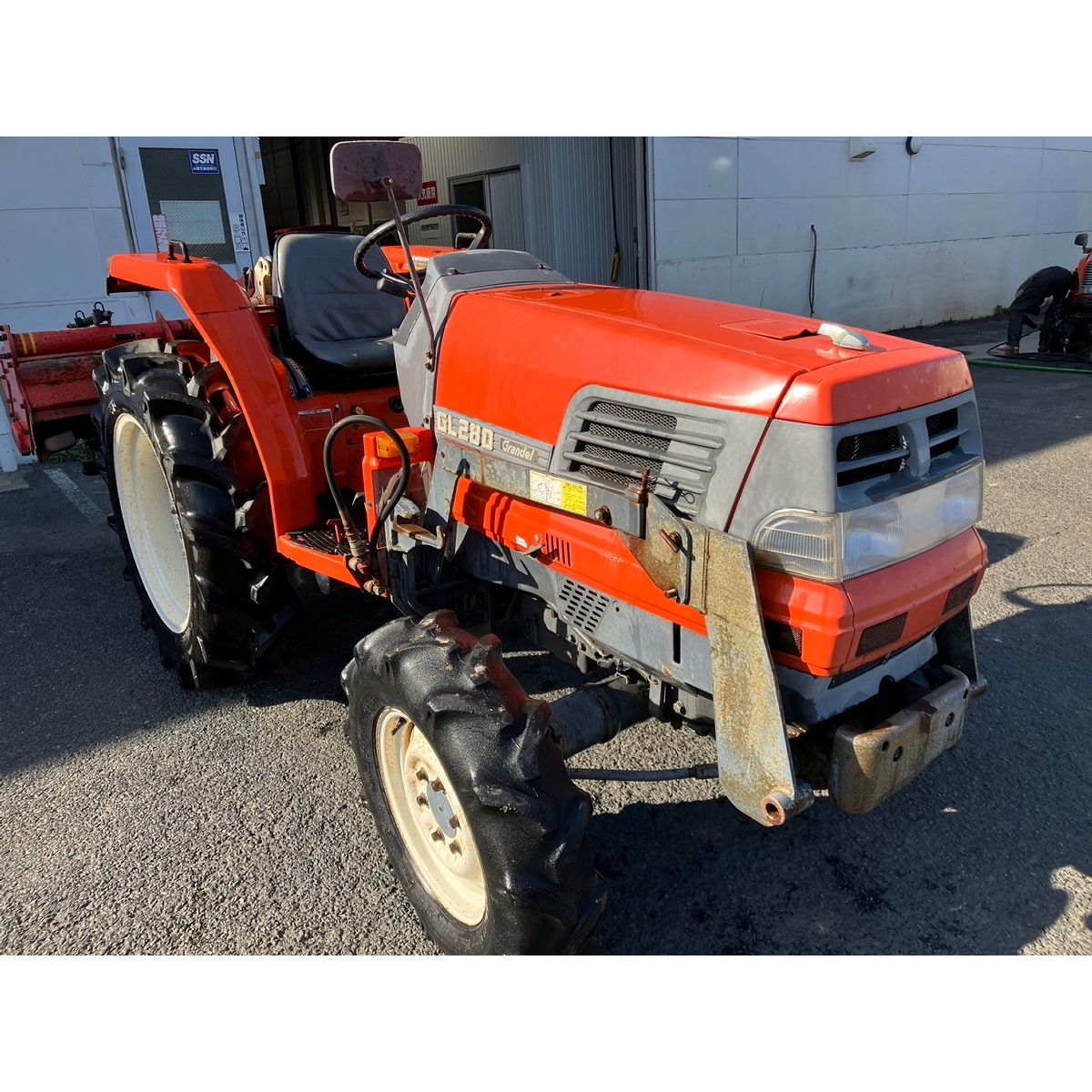

Kubota GL280

Name: Kubota GL280
Brand: Kubota

Kubota GL280 — GL Series · 26 hp. Reference specifications; pending source verification.

The Kubota GL280 is a tractor model with a rating of approximately 26 hp, positioning it at the lighter end of its class. It was manufactured from 1993 to 1995 and features a 3-cylinder diesel liquid-cooled engine, paired with a four-wheel drive system and a powershift transmission. The GL280 has an operating weight of 2679 to 2976 pounds and is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Weight

2679 to 2976 pounds

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

26 hp

Recorded weight

1215 kg

Transmissions

16-speed gear

Production years

1993-1995

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Variants

GL280ROPSReference

GL280QcabReference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine20.6 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power20.6 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed gearReference

16-speed power shiftReference

TypegearReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.Reference

Typepower shiftReference

PTO & Hydraulics

PTO (claimed)19.7 kWReference

Pump flow21.2 lpmReference

Rear TypeIReference

Rear lift934 kgReference

Rear PTO Type544/770/944/1250 (1.375)Reference

Dimensions

ROPS Wheelbase164 cmReference

Cab Wheelbase169 cmReference

Weight2679 to 2976 poundsReference

Front tire8-16Reference

Rear tire11.2-26Reference

Standard tires (ag)Front: 8-16. Rear: 11.2-26Reference

ROPS Length305 cmReference

Cab Length312 cmReference

Width141 cmReference

Height (ROPS)199 cmReference

Height (cab)197 cmReference

ROPS Weight1215 kgReference

Cab Weight1349 kgReference

Ground clearance36 cmReference

Front tread113 cmReference

Rear tread113 to 141 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
