Tractor · 1996Unverified

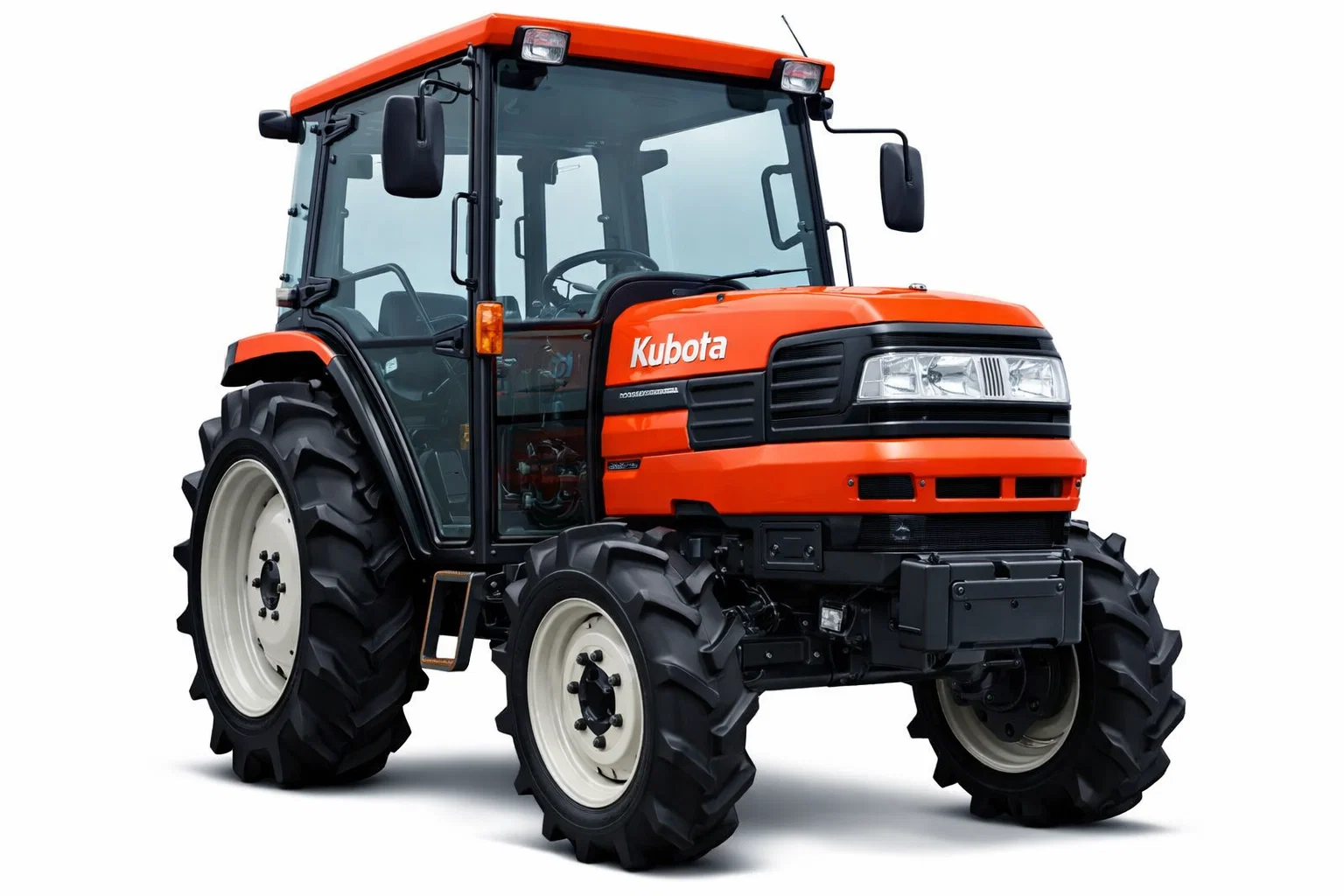

Kubota GL301
Kubota GL301 — GL Series · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
2800 to 3164 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
GL301utilityReference
GL301EnarrowReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine22.8 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power22.8 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
16-speed power shiftReference
TypegearReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.Reference
TransmissionU-ShiftReference
Typepower shiftReference
Eight power-shift gears in two ranges with shuttle.Reference
PTO & Hydraulics
PTO (claimed)21.7 kWReference
Pump flow22.3 lpmReference
Rear TypeJIS1Reference
Rear lift904 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM537@2700Reference
Engine RPM759@2700Reference
Engine RPM931@2700Reference
Engine RPM1233@2700Reference
Engine RPM-759@2700Reference
Dimensions
Wheelbase175 cmReference
Weight2800 to 3164 poundsReference
Front tire8-16Reference
Rear tire12.4-26Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-26Reference
Length318 cmReference
Width141 cmReference
Height (ROPS)198 cmReference
Height (cab)199 cmReference
ROPS Weight1270 kgReference
Cab Weight1435 kgReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread108 to 148 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
