Tractor · 1990Unverified

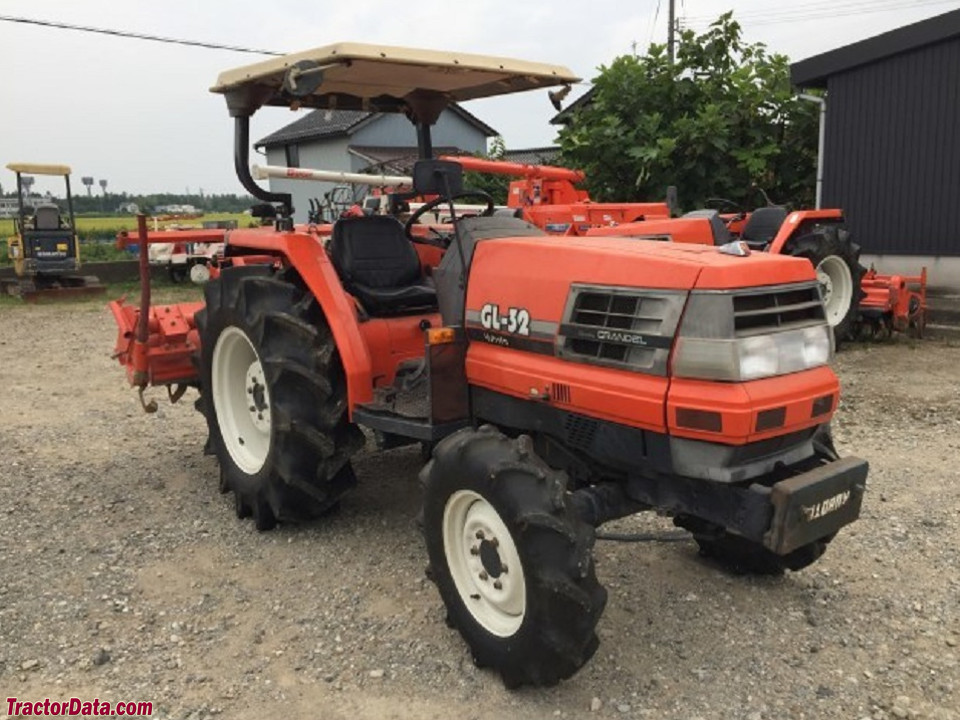

Kubota GL32
Kubota GL32 — GL Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1210 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Open operator station.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine23.6 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power23.6 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
16-speed power shiftReference
TypegearReference
Gears16 forward and reverseReference
Four gears (1-4) in low/high ranges plus a creeper/field range shift with shuttle.Reference
Typepower shiftReference
Eight power shift gears in two ranges with shuttle.Reference
PTO & Hydraulics
PTO (claimed)20.7 kWReference
Pump flow23.8 lpmReference
Rear TypeIReference
Rear lift884 kgReference
Rear PTO Type586/829/1016/1346 (1.375)Reference
Dimensions
Wheelbase175 cmReference
Weight1210 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Width145 cmReference
Height147 cmReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread110 to 157 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
