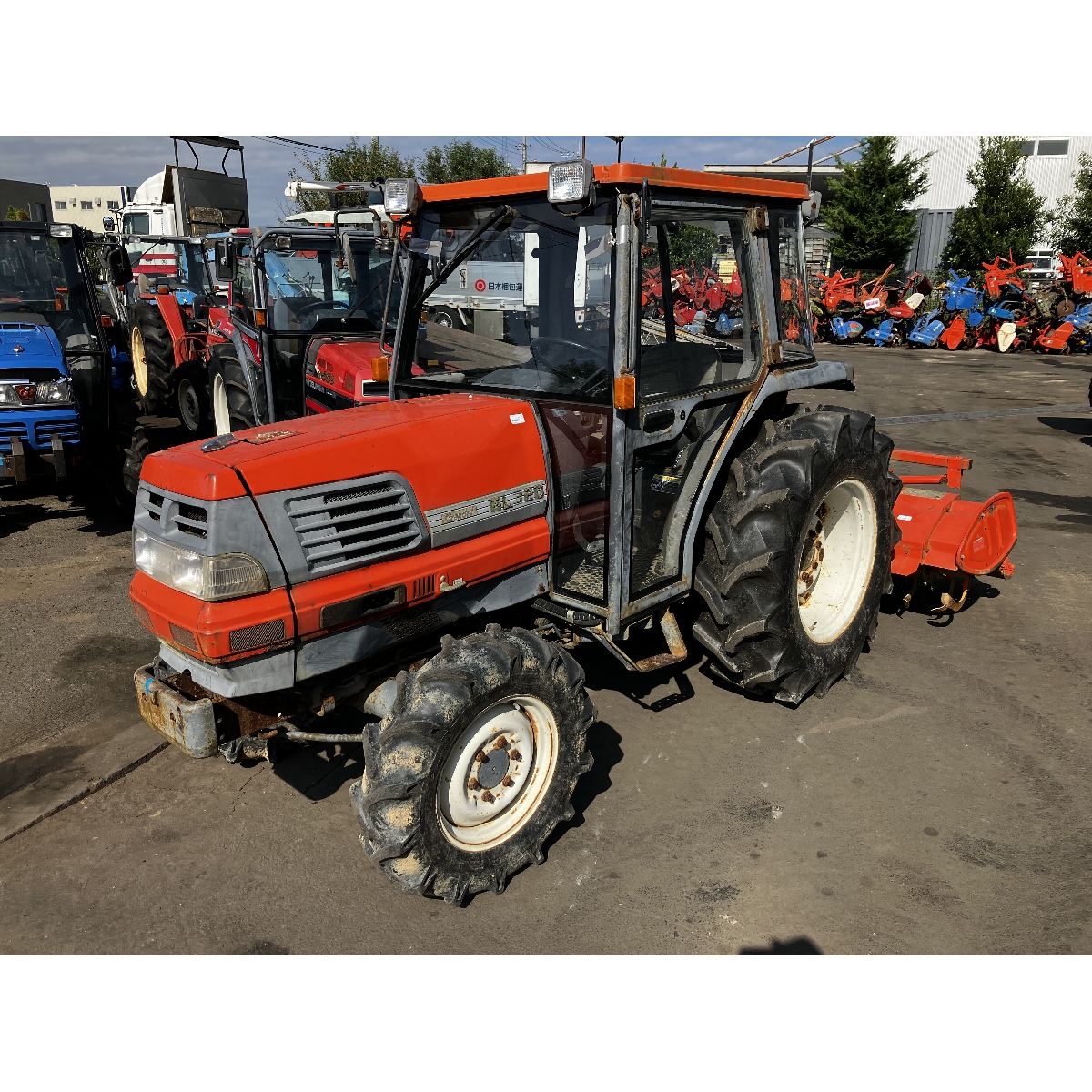

The Kubota GL320E is a compact tractor, rated at 29 hp, which positions it within the lower power range of its class. It was produced from 1993 to 1995. This model features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and a 16-speed gearbox. The listed weight is 1215 kg, with a capacity for jobs of up to 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1215 kg
Catalogue coverage
Variants represented
2
Richest spec table
45 rows
Recorded power
29 hp
Recorded weight
1215 kg
Transmissions
16-speed gear
Production years
1993-1995
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Variants
GL320ROPSReference
GL320QcabReference
GL320EnarrowReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine23.6 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power23.6 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
TypegearReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.Reference
PTO & Hydraulics
PTO (claimed)21.5 kWReference
Pump flow23.8 lpmReference
Rear TypeIReference
Rear lift904 kgReference
Rear PTO Type586/829/1016/1346 (1.375)Reference
Dimensions
Wheelbase164 cmReference
Weight1215 kgReference
Front tire8-16Reference
Rear tire11.2-26Reference
Standard tires (ag)Front: 8-16. Rear: 11.2-26Reference
Length305 cmReference
Width141 cmReference
Height (ROPS)199 cmReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread113 to 141 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
