Tractor · 1996Unverified

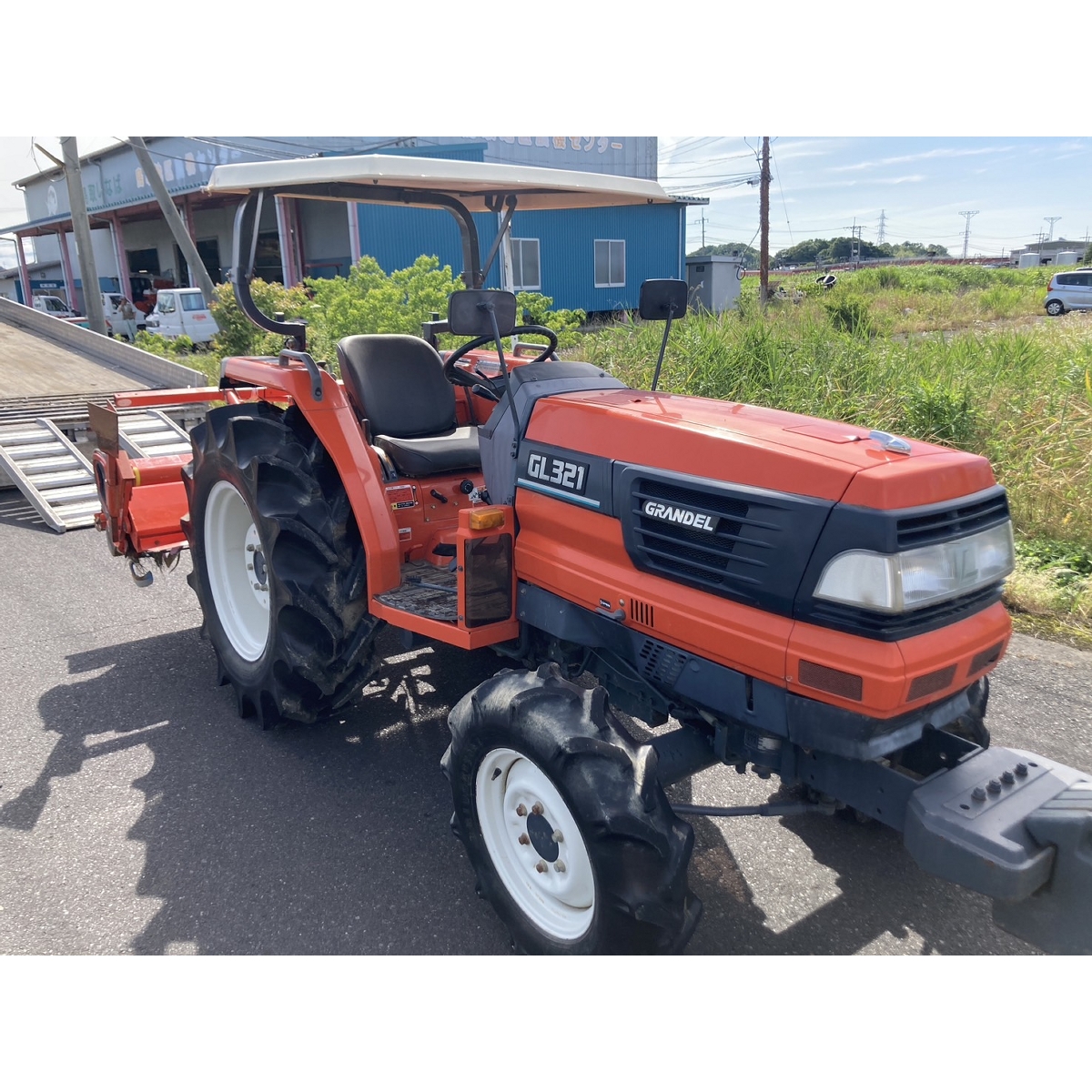

Kubota GL321

Name: Kubota GL321
Brand: Kubota

Kubota GL321 — GL Series · 30 hp. Reference specifications; pending source verification.

The Kubota GL321 is a compact tractor, rated at 30 hp, produced from 1996 to 2001. It features a 3-cylinder diesel liquid-cooled engine, driving through a four-wheel drive system with powershift transmission. The listed weight of the Kubota GL321 ranges from 2822 to 3186 pounds. It is designed for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Weight

2822 to 3186 pounds

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

30 hp

Recorded weight

1280 kg

Transmissions

16-speed gear

Production years

1996-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Variants

GL321utilityReference

GL321EnarrowReference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank35.0 LReference

Engine24.3 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power24.3 kWReference

Rated RPM2800Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed gearReference

16-speed power shiftReference

TypegearReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.Reference

TransmissionU-ShiftReference

Typepower shiftReference

Eight power-shift gears in two ranges with shuttle.Reference

PTO & Hydraulics

PTO (claimed)22.1 kWReference

Pump flow23.8 lpmReference

Rear TypeJIS1Reference

Rear lift904 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM557@2800Reference

Engine RPM778@2800Reference

Engine RPM966@2800Reference

Engine RPM1279@2800Reference

Engine RPM-783@2800Reference

Dimensions

Wheelbase175 cmReference

Weight2822 to 3186 poundsReference

Front tire8-16Reference

Rear tire13.6-24Reference

Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference

Length318 cmReference

Width145 cmReference

Height (ROPS)198 cmReference

Height (cab)199 cmReference

ROPS Weight1280 kgReference

Cab Weight1445 kgReference

Ground clearance36 cmReference

Front tread113 cmReference

Rear tread110 to 157 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
