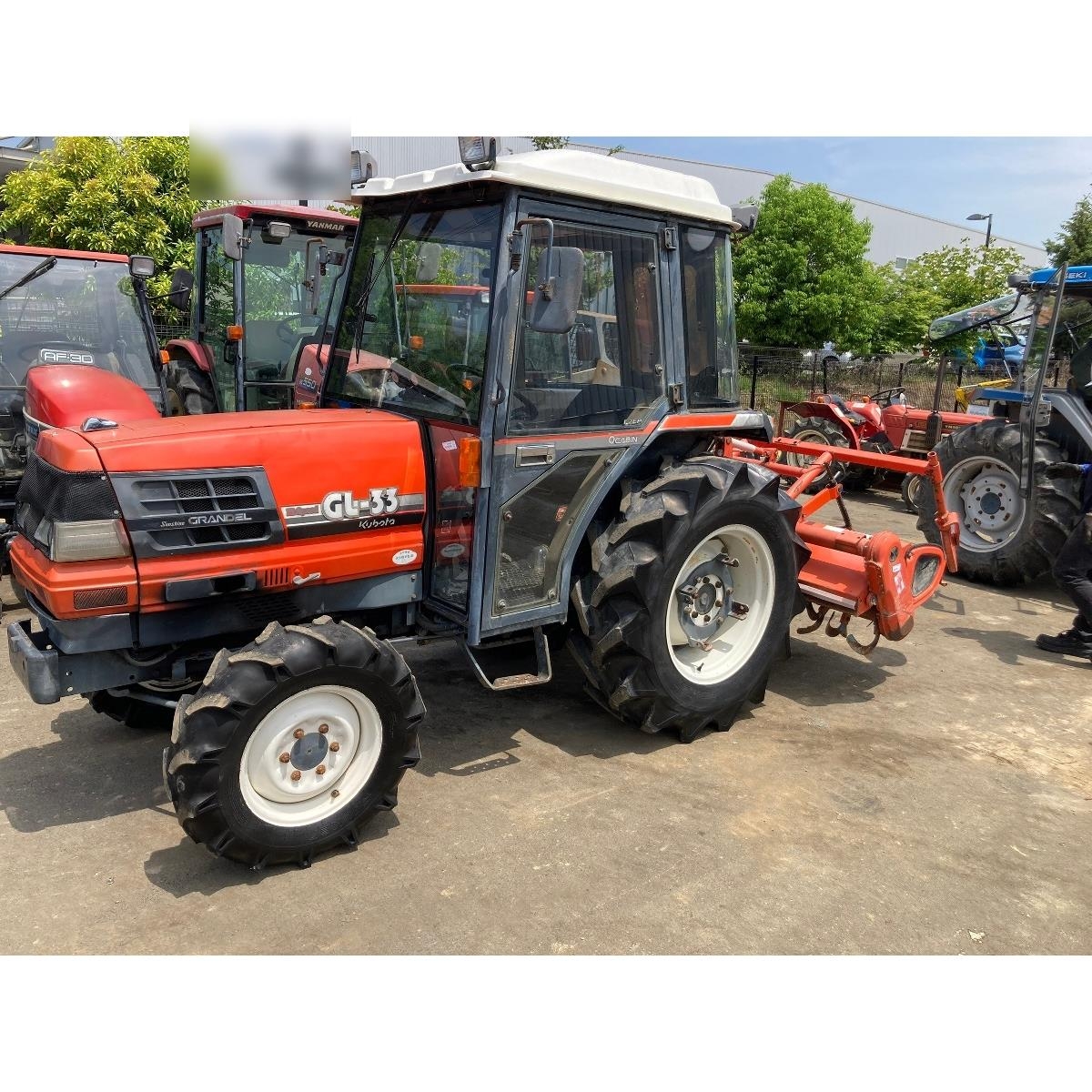

The Kubota GL33 is a compact tractor with a rated output of 28 hp, making it suitable for a range of tasks. Produced from 1990 to 1992, this model features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a powershift transmission. The listed weight of the Kubota GL33 is 1290 kg. It is designed for use on areas of around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1290 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
28 hp
Recorded weight
1290 kg
Transmissions
16-speed power shift
Production years
1990-1992
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Kubota 1.6L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine24.3 kWReference
Kubota D1703Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke86 x 91 mmReference
Power24.3 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed power shiftReference
Typepower shiftReference
Gears16 forward and reverseReference
Eight power shift gears in two ranges with shuttle.Reference
PTO & Hydraulics
PTO (claimed)20.8 kWReference
Pump flow22.3 lpmReference
Rear TypeIReference
Rear lift905 kgReference
Rear PTO Type565/800/980/1298 (1.375)Reference
Dimensions
Wheelbase175 cmReference
Weight1290 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Width145 cmReference
Height (ROPS)198 cmReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread110 to 157 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
