Tractor · 1996Unverified

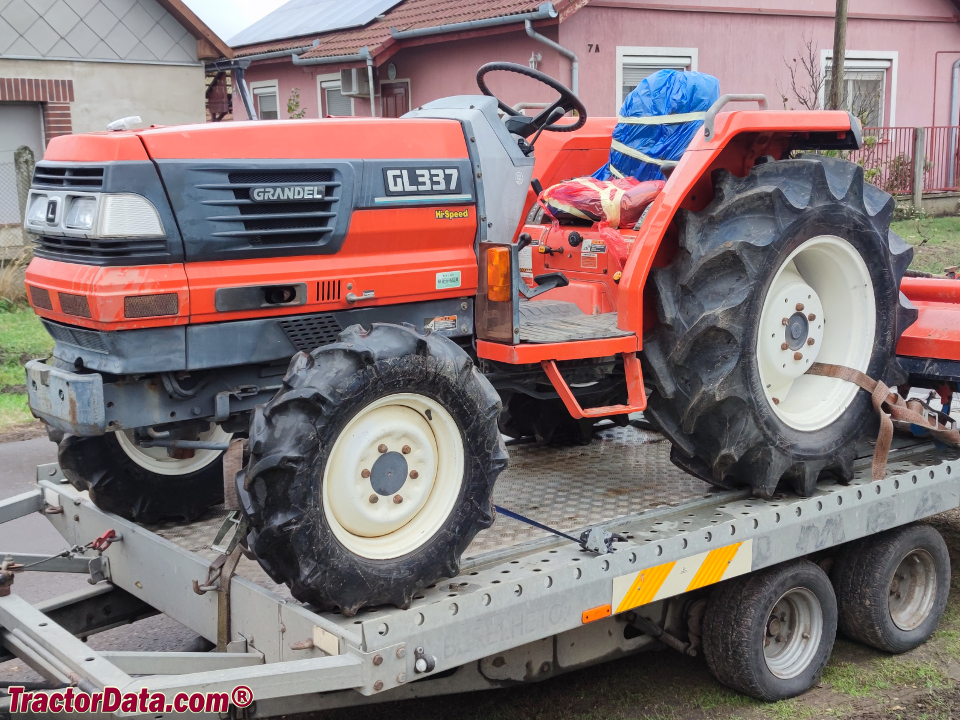

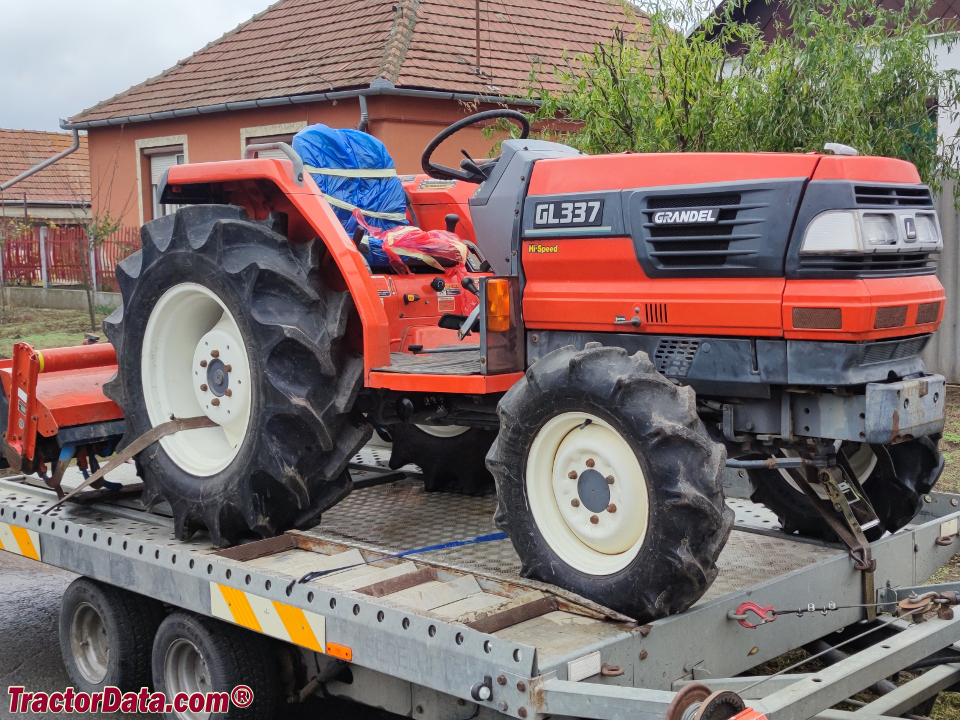

Kubota GL337

Name: Kubota GL337
Brand: Kubota

Kubota GL337 — GL Series · 28 hp. Reference specifications; pending source verification.

The Kubota GL337 is a tractor model with a rated power output of 28 hp, positioning it at the lighter end of its class. It was manufactured from 1996 to 2001. The GL337 is powered by a 3-cylinder diesel liquid-cooled engine, paired with a four-wheel drive system and a powershift transmission. Its operating weight ranges between 2822 and 3230 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

28 hp

Weight

2822 to 3230 pounds

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

28 hp

Recorded weight

1280 kg

Transmissions

16-speed power shift

Production years

1996-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 1.6L 3-cyl dieselReference

Fuel tank35.0 LReference

Engine24.3 kWReference

Kubota D1703Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke86 x 91 mmReference

Power24.3 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed power shiftReference

Typepower shiftReference

Gears16 forward and reverseReference

PTO & Hydraulics

PTO (claimed)20.8 kWReference

Pump flow22.3 lpmReference

Rear TypeJIS1Reference

Rear lift904 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM565@2700Reference

Engine RPM800@2700Reference

Engine RPM980@2700Reference

Engine RPM1298@2700Reference

Engine RPM-800@2700Reference

Dimensions

Wheelbase175 cmReference

Weight2822 to 3230 poundsReference

Front tire8-16Reference

Rear tire13.6-24Reference

Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference

Length318 cmReference

Width145 cmReference

Height (ROPS)198 cmReference

Height (cab)211 cmReference

ROPS Weight1280 kgReference

Cab Weight1465 kgReference

Ground clearance36 cmReference

Front tread113 cmReference

Rear tread110 to 157 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
