Tractor · 1993Unverified

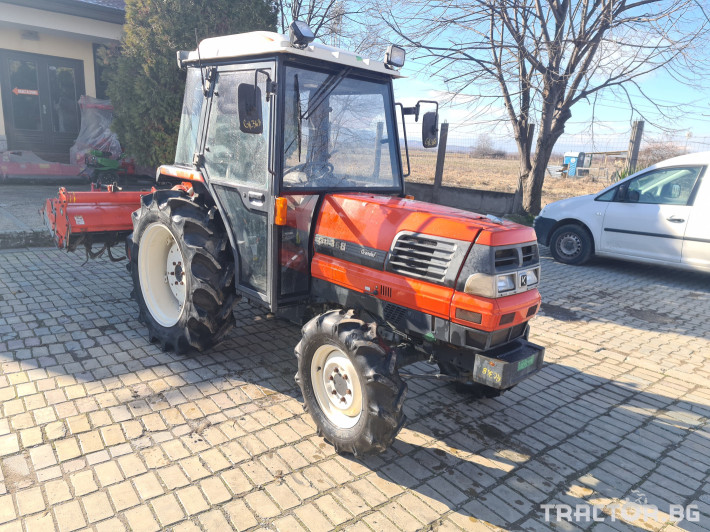

Kubota GL368
Kubota GL368 — GL Series · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
3197 to 3616 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
GL368ROPSReference
GL368QcabReference
Engine
Kubota 1.9L 4-cyl dieselReference
Fuel tank35.0 LReference
Engine26.5 kWReference
Kubota V1903Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke79 x 91 mmReference
Power26.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
16-speed power shiftReference
TypegearReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.Reference
Typepower shiftReference
PTO & Hydraulics
PTO (claimed)23.6 kWReference
Pump flow23.8 lpmReference
Rear TypeIReference
Rear lift865 kgReference
Rear PTO Type544/806/1252 (1.375)Reference
Dimensions
Wheelbase183 cmReference
Weight3197 to 3616 poundsReference
Front tire8-16Reference
Rear tire12.4-28Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-28Reference
Length332 cmReference
Width150 cmReference
Height (ROPS)217 cmReference
Height (cab)229 cmReference
ROPS Weight1450 kgReference
Cab Weight1640 kgReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread118 to 147 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
