Tractor · 1993Unverified

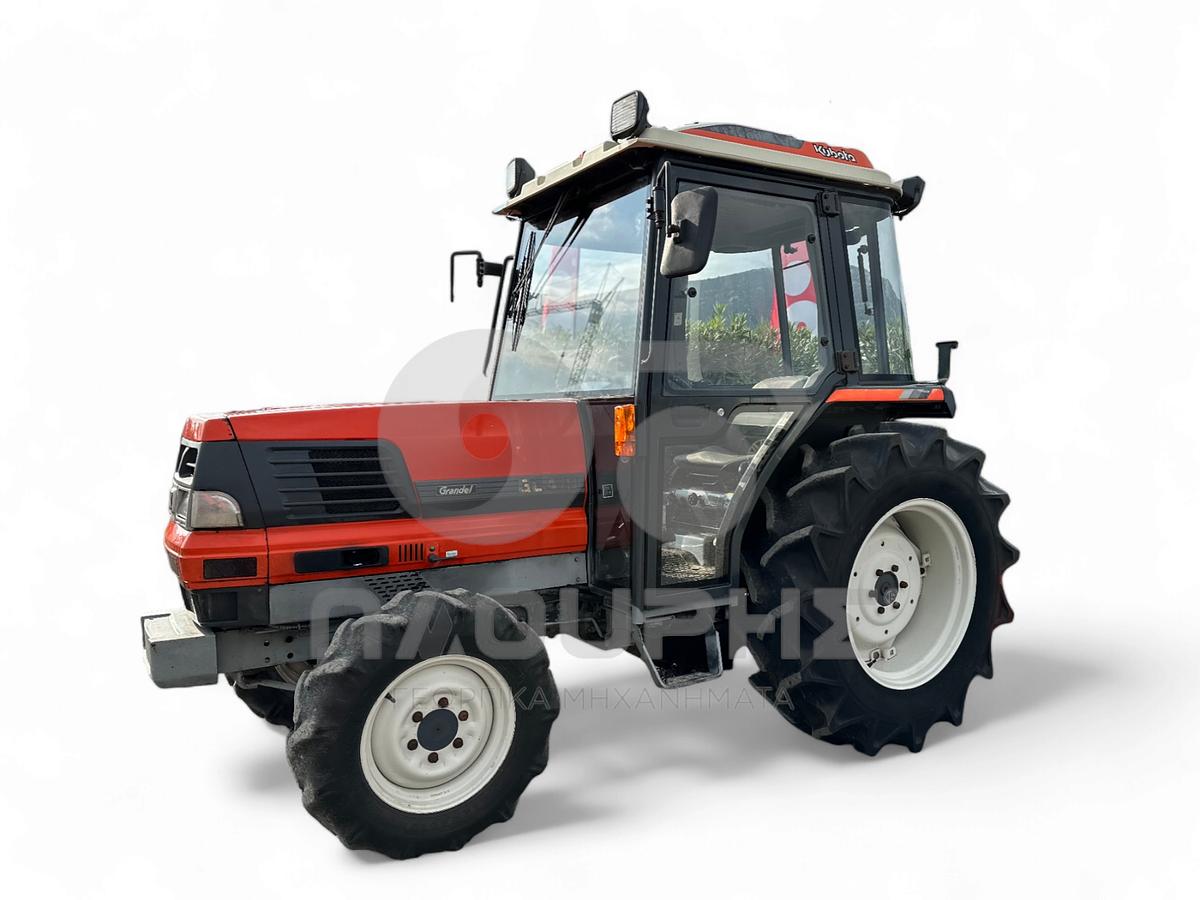

Kubota GL418
Kubota GL418 — GL Series · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
3197 to 3616 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
GL418ROPSReference
GL418QcabReference
Engine
Kubota 2.2L 4-cyl dieselReference
Fuel tank35.0 LReference
Engine30.9 kWReference
Kubota V2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power30.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
16-speed power shiftReference
TypegearReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.Reference
Typepower shiftReference
PTO & Hydraulics
PTO (claimed)28.2 kWReference
Pump flow23.8 lpmReference
Rear TypeIReference
Rear lift865 kgReference
Rear PTO Type544/806/1252 (1.375)Reference
Dimensions
Wheelbase183 cmReference
Weight3197 to 3616 poundsReference
Front tire8-16Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-26Reference
Length332 cmReference
Width149 cmReference
Height (ROPS)217 cmReference
Height (cab)229 cmReference
ROPS Weight1450 kgReference
Cab Weight1640 kgReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread115 to 144 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
