Tractor · 1998Unverified

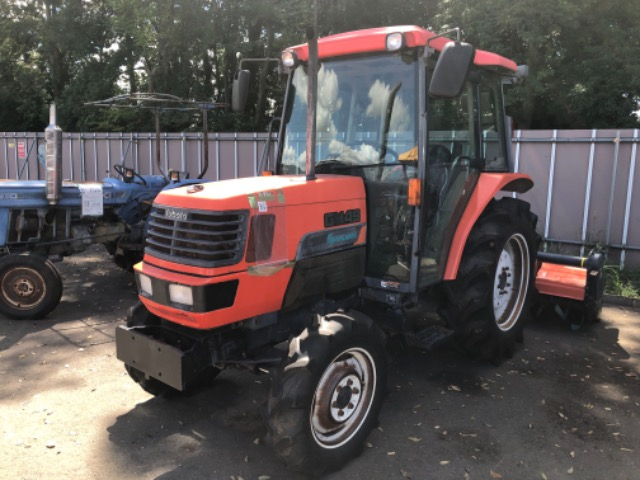

Kubota GM49

Name: Kubota GM49
Brand: Kubota

Kubota GM49 — GM Series · 45 hp. Reference specifications; pending source verification.

The Kubota GM49 is a compact tractor model with a rated output of 45 hp. It was manufactured from 1998 to 2006. The tractor features a 4-cylinder diesel liquid-cooled engine, which transmits power through a four-wheel drive system and a 24-speed gearbox. Its listed weight ranges from 4608 to 4927.3 pounds and is suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Weight

4608 to 4927.3 pounds

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

45 hp

Recorded weight

2090 kg

Transmissions

24-speed

Production years

1998-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 3.3L 4-cyl dieselReference

Fuel tank60.2 LReference

Engine36.0 kWReference

Kubota V3300Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke98 x 110 mmReference

Power36.0 kWReference

Rated RPM2200Reference

StarternegativeReference

Starter volts12Reference

Transmission

24-speedReference

Gears24 forward and reverseReference

Eight gears in three ranges with shuttle.Reference

PTO & Hydraulics

PTO (claimed)33.4 kWReference

Pump flow41.6 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift1730 kgReference

Rear lift2269 kgReference

Rear PTO Type569/799/1130 (1.375)Reference

Dimensions

Wheelbase204 cmReference

Weight4608 to 4927.3 poundsReference

Front tire8-18Reference

Rear tire13.6-28Reference

Standard tires (ag)Front: 8-18. Rear: 13.6-28Reference

Length365 cmReference

Width156 cmReference

Height (ROPS)243 cmReference

Height (cab)237 cmReference

ROPS Weight2090 kgReference

Cab Weight2235 kgReference

Ground clearance37 cmReference

Front tread119 cmReference

Rear tread121 to 161 cmReference

Electrical

GroundelectricReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
