Tractor · 1998Unverified

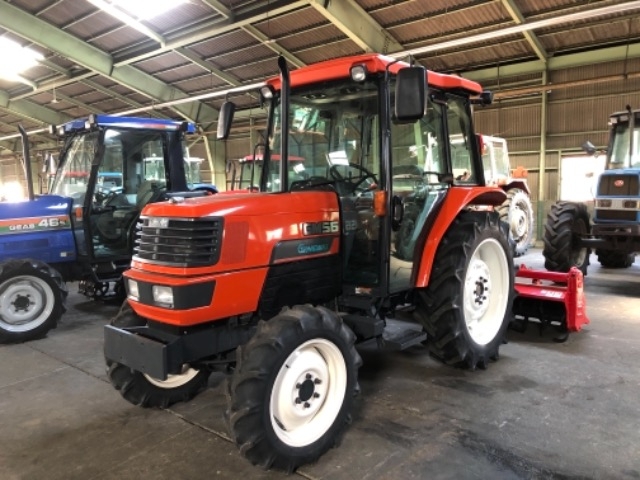

Kubota GM56
Kubota GM56 — GM Series · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
4740 to 5049 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 3.3L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine41.1 kWReference
Kubota V3300Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
Power41.1 kWReference
Rated RPM2200Reference
StarternegativeReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
Eight gears in three ranges with shuttle.Reference
PTO & Hydraulics
PTO (claimed)38.1 kWReference
Pump flow41.6 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1730 kgReference
Rear lift2269 kgReference
Rear PTO Type569/799/1130 (1.375)Reference
Dimensions
Wheelbase210 cmReference
Weight4740 to 5049 poundsReference
Front tire8.3-20Reference
Rear tire12.4-32Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-32Reference
Length365 cmReference
Width156 cmReference
Height (ROPS)246 cmReference
Height (cab)241 cmReference
ROPS Weight2150 kgReference
Cab Weight2290 kgReference
Ground clearance40 cmReference
Front tread121 cmReference
Rear tread121 to 171 cmReference
Electrical
GroundelectricReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
