Tractor · 1998Unverified

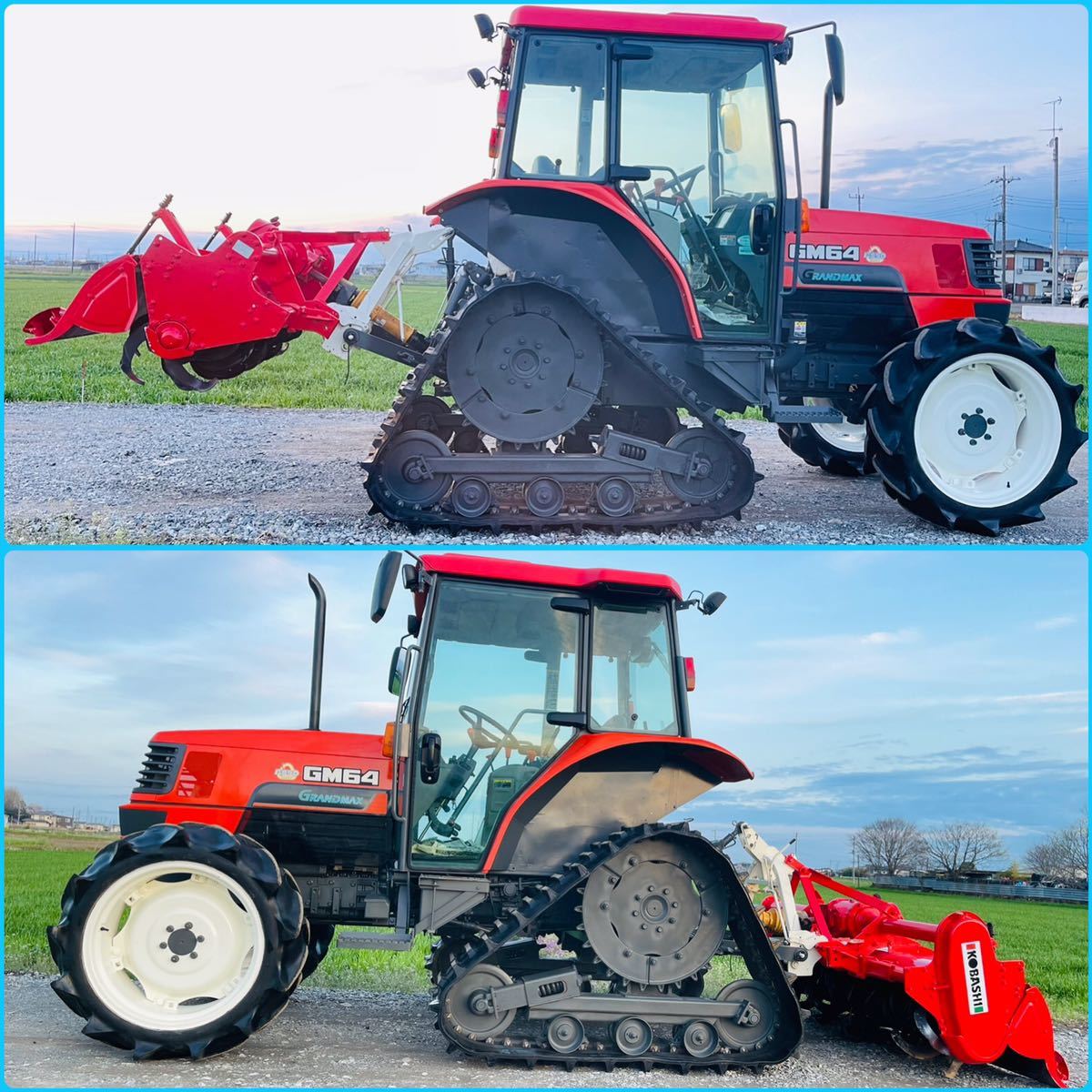

Kubota GM64

Name: Kubota GM64
Brand: Kubota

Kubota GM64 — GM Series · 59 hp. Reference specifications; pending source verification.

The Kubota GM64 is a tractor with a rated power of 59 hp, classifying it as a lighter model in its category. Production of this model spanned from 1998 to 2006. Key features include a 4-cylinder diesel liquid-cooled engine and four-wheel drive with a 24-speed gearbox. The operating weight ranges from 4916 to 5313 pounds, with a suitable operating area of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

59 hp

Weight

4916 to 5313 pounds

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

59 hp

Recorded weight

2229 kg

Transmissions

24-speed

Production years

1998-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 3.3L 4-cyl dieselReference

Fuel tank82.1 LReference

Engine47.0 kWReference

Kubota V3300Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke98 x 110 mmReference

Power47.0 kWReference

Rated RPM2500Reference

StarternegativeReference

Starter volts12Reference

Transmission

24-speedReference

Gears24 forward and reverseReference

Eight gears in three ranges with shuttle.Reference

PTO & Hydraulics

PTO (claimed)43.7 kWReference

Pump flow41.6 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift1730 kgReference

Rear lift2269 kgReference

Rear PTO Type564/795/1125 (1.375)Reference

Dimensions

Wheelbase215 cmReference

Weight4916 to 5313 poundsReference

Front tire9.5-22Reference

Rear tire12.4-36Reference

Standard tires (ag)Front: 9.5-22. Rear: 12.4-36Reference

Length365 cmReference

Width165 cmReference

Height (ROPS)250 cmReference

Height (cab)246 cmReference

ROPS Weight2229 kgReference

Cab Weight2409 kgReference

Ground clearance45 cmReference

Front tread121 to 149 cmReference

Rear tread121 to 171 cmReference

Electrical

GroundelectricReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
