Tractor · 1998Unverified

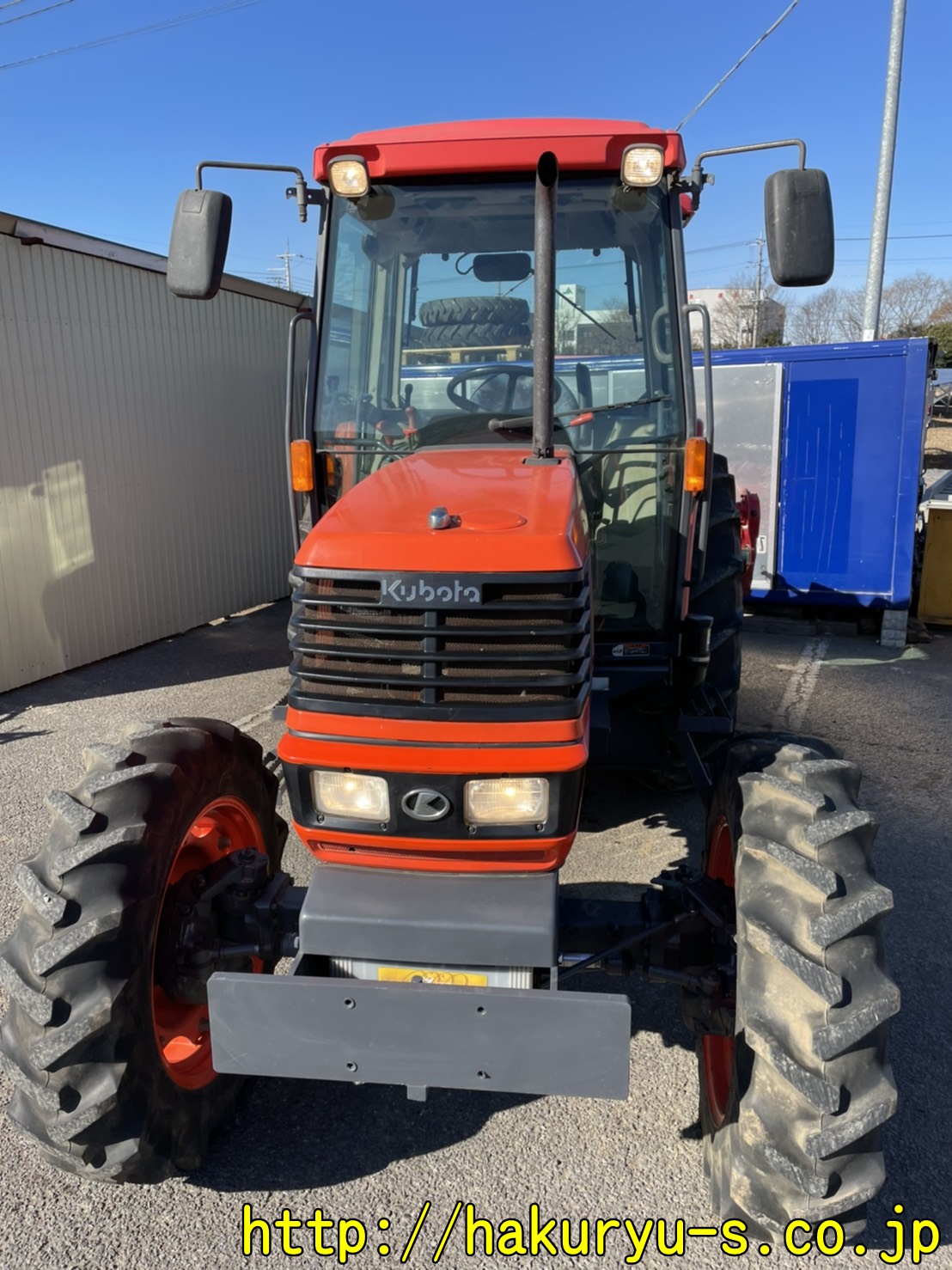

Kubota GM90
Kubota GM90 — GM Series · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
2869 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard.Reference
Engine
Kubota 3.3L 4-cyl dieselReference
Fuel tank104.8 LReference
Engine65.5 kWReference
Kubota V3300TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
Power65.5 kWReference
Rated RPM2600Reference
StarternegativeReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
Eight gears in three ranges with shuttle.Reference
PTO & Hydraulics
Rear TypeIIReference
Controlposition and draft controlReference
Rear PTO Type587/827/1170 (1.375)Reference
Dimensions
Wheelbase235 cmReference
Weight2869 kgReference
Front tire11.2-24Reference
Rear tire13.6-38Reference
Standard tires (ag)Front: 11.2-24. Rear: 13.6-38Reference
Length398 cmReference
Width178 cmReference
Height (cab)257 cmReference
Ground clearance48 cmReference
Front tread120 to 139 cmReference
Rear tread121 to 139 cmReference
Electrical
GroundelectricReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
