Tractor · 2001Unverified

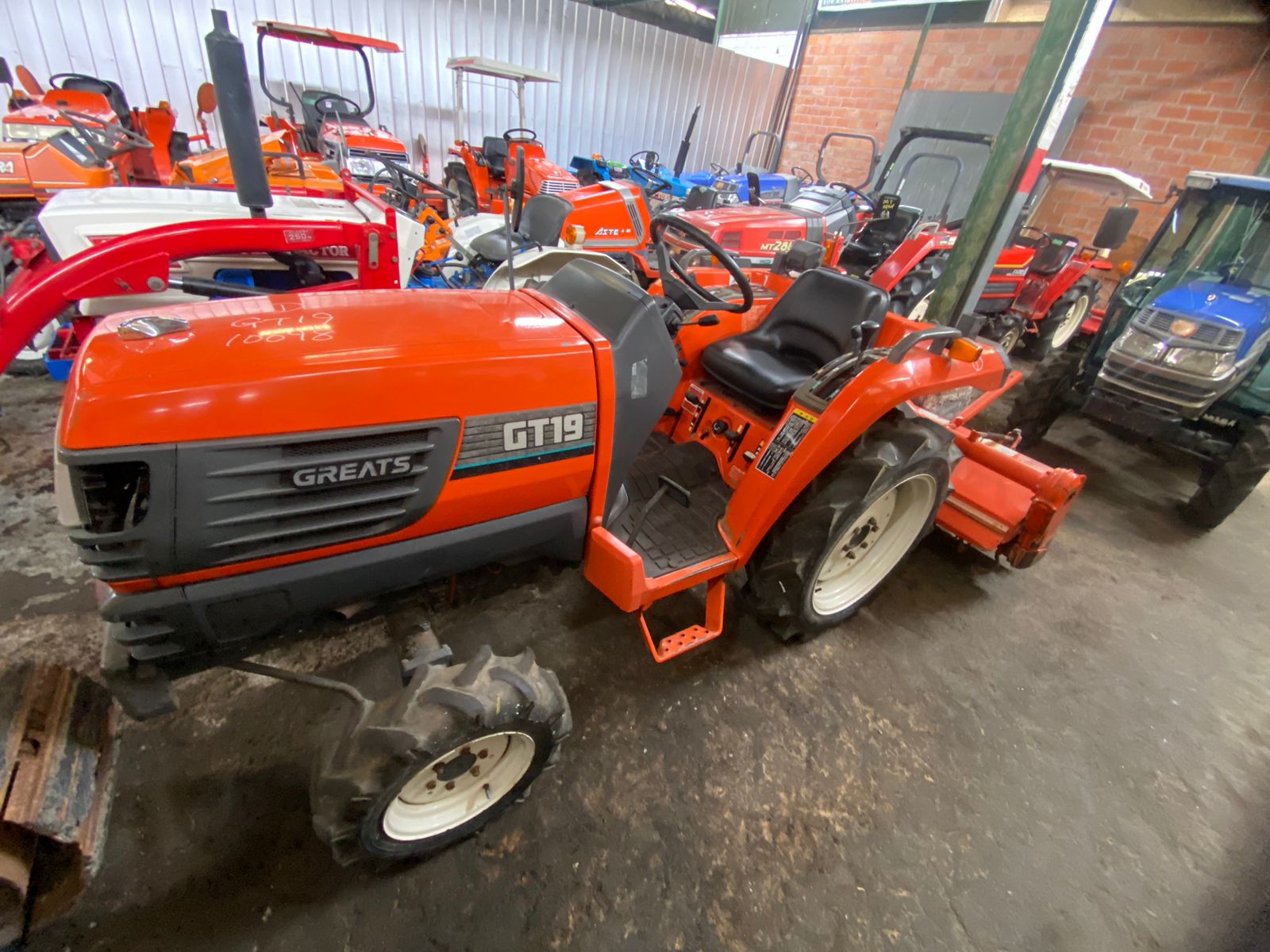

Kubota GT-19

Name: Kubota GT-19
Brand: Kubota

Kubota GT-19 — GT Series · 19 hp. Reference specifications; pending source verification.

The Kubota GT-19 is a tractor model with a rated output of 19 hp — making it one of the more compact options in its class. It was produced from 2001 to 2002. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 1874 to 1962 pounds, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

19 hp

Weight

1874 to 1962 pounds

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

19 hp

Recorded weight

850 kg

Transmissions

12-speed

Production years

2001-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Two-post folding ROPS.Reference

Variants

GT-19gearReference

GT-19FhydrostaticReference

GT-19Jlarge tireReference

Engine

Kubota 1.4L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine14.0 kWReference

Kubota D1403Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Bore/Stroke79 x 91 mmReference

Power14.0 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

hydrostaticReference

Gear Weight850 kgReference

Gears12 forward and 4 reverseReference

Three gears (1-3), plus reverse, in four ranges (creeper and 1-3).Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Rear Type1Reference

Rear PTO Type540/750/1000 (1.375)Reference

Dimensions

Wheelbase145 cmReference

Weight1874 to 1962 poundsReference

Front tire6-12Reference

Rear tire8.3-22Reference

Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference

GT-19J Optional tires (ag)Front: 6-14. Rear: 8.3-24Reference

Length280 cmReference

Width115 cmReference

Height (ROPS)187 cmReference

Height (cab)189 cmReference

Hydro Weight889 kgReference

Ground clearance29 cmReference

Front tread94 cmReference

Rear tread91 to 103 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
