Tractor · 2001Unverified

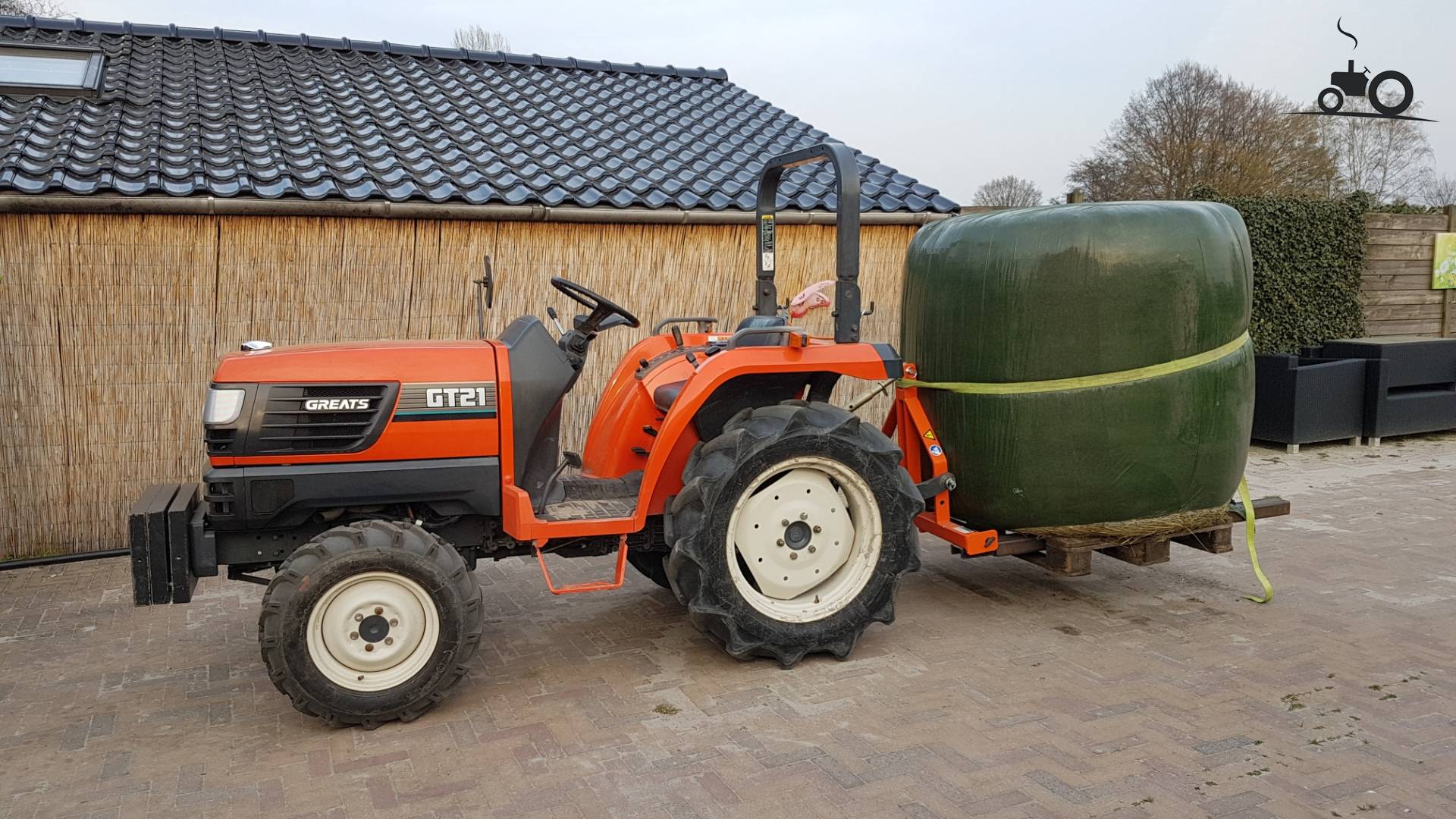

Kubota GT-21
Kubota GT-21 — GT Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1940 to 2028 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS.Reference
Variants
GT-21gearReference
GT-21FhydrostaticReference
GT-21Jlarge tireReference
Engine
Kubota 1.4L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine15.4 kWReference
Kubota D1403Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke79 x 91 mmReference
Power15.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
hydrostaticReference
Gear Weight879 kgReference
Gears12 forward and 4 reverseReference
Three gears (1-3), plus reverse, in four ranges (creeper and 1-3).Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear Type1Reference
Rear PTO Type540/750/1000 (1.375)Reference
Dimensions
Wheelbase145 cmReference
Weight1940 to 2028 poundsReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
GT-21J Optional tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length280 cmReference
Width115 cmReference
Height (ROPS)189 cmReference
Height (cab)189 cmReference
Hydro Weight919 kgReference
Ground clearance32 cmReference
Front tread94 cmReference
Rear tread91 to 103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
