Tractor · 2001Unverified

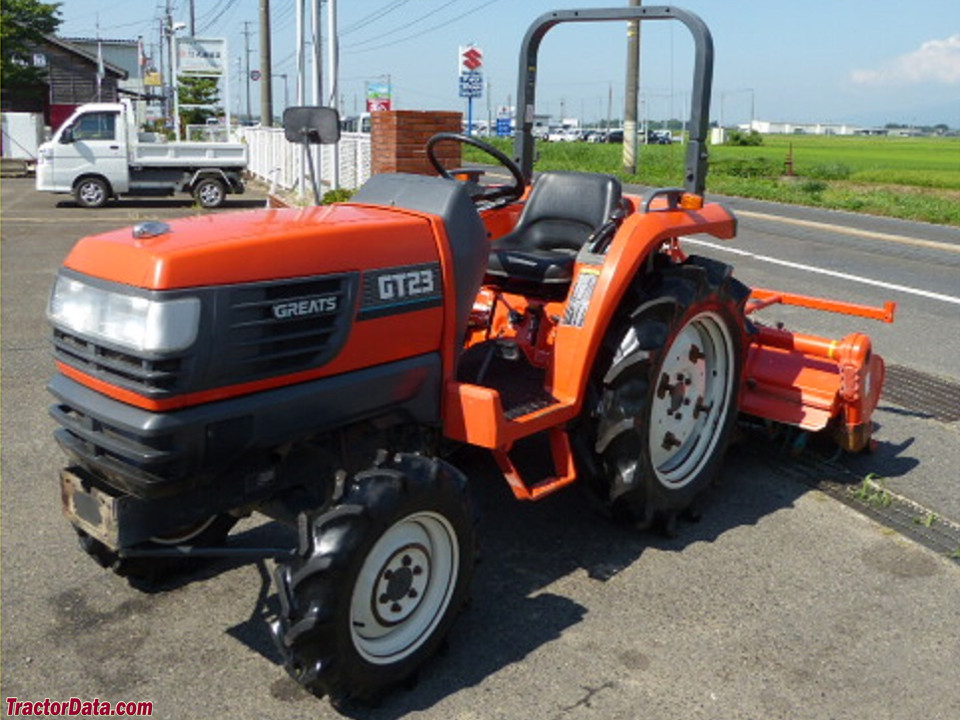

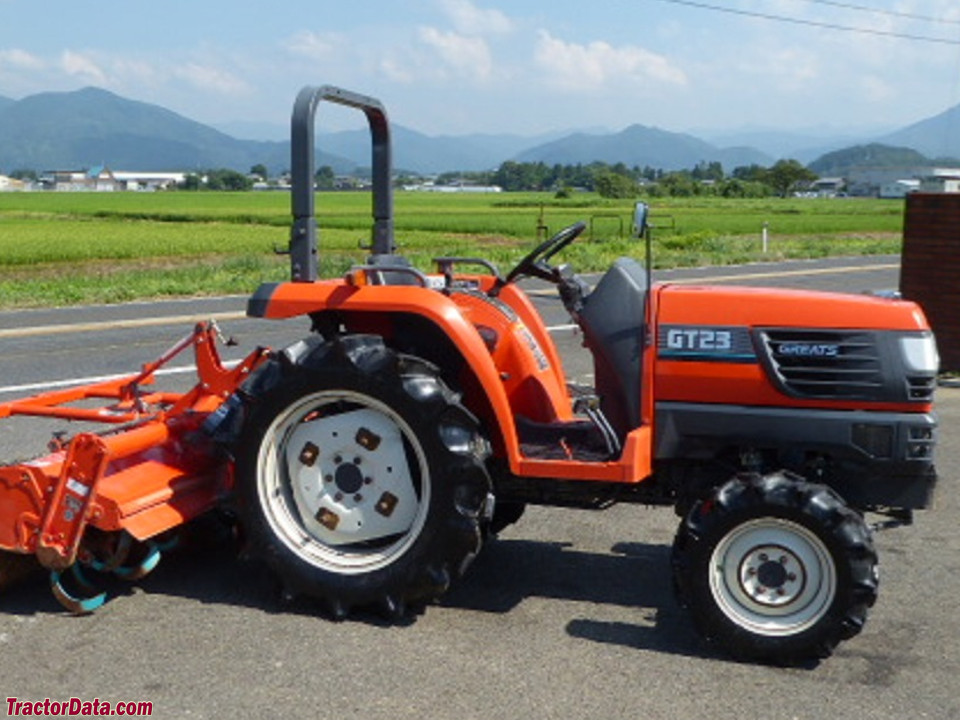

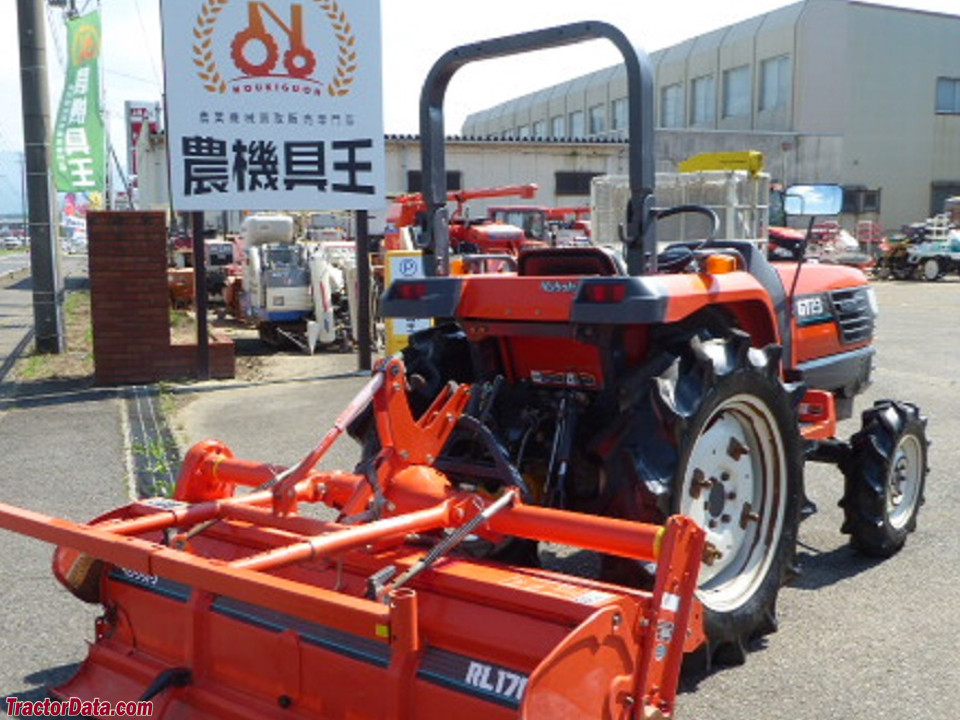

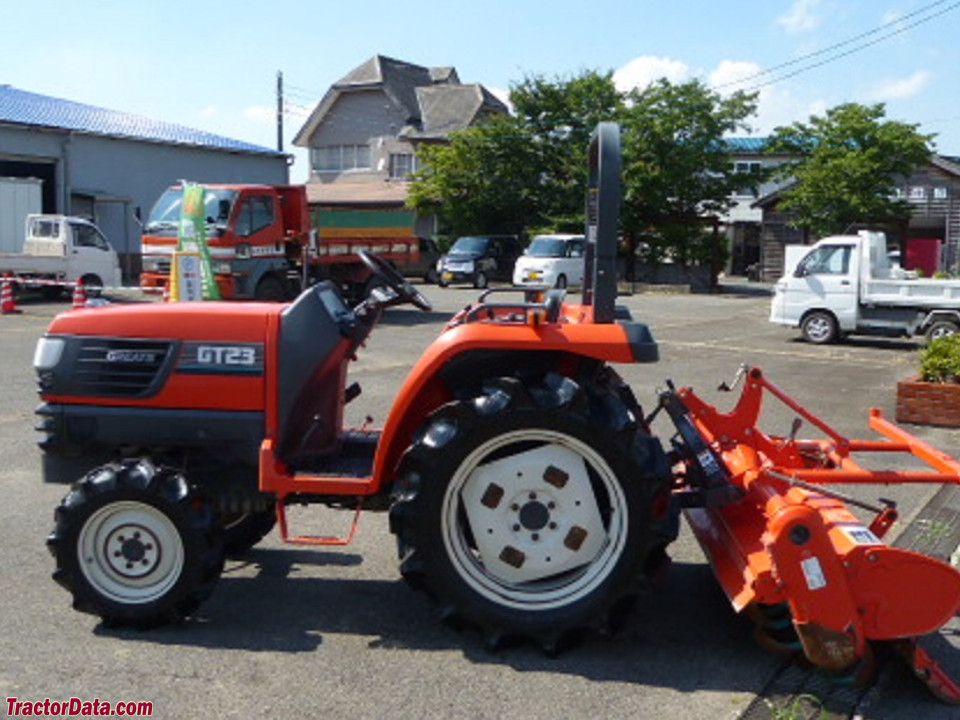

Kubota GT-23
Kubota GT-23 — GT Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1984 to 2072 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS.Reference
Variants
GT-23gearReference
GT-23FhydrostaticReference
GT-23Jlarge tireReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine16.9 kWReference
Kubota D1463Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power16.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
hydrostaticReference
Gear Weight899 kgReference
Gears12 forward and 4 reverseReference
Three gears (1-3), plus reverse, in four ranges (creeper and 1-3).Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear Type1Reference
Rear PTO Type540/750/1000 (1.375)Reference
Dimensions
Wheelbase145 cmReference
Weight1984 to 2072 poundsReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
GT-23J Optional tires (ag)Front: 6-14. Rear: 9.5-24Reference
Length285 cmReference
Width118 cmReference
Height (ROPS)189 cmReference
Height (cab)192 cmReference
Hydro Weight939 kgReference
Ground clearance32 cmReference
Front tread94 cmReference
Rear tread94 to 106 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
