Tractor · 2001Unverified

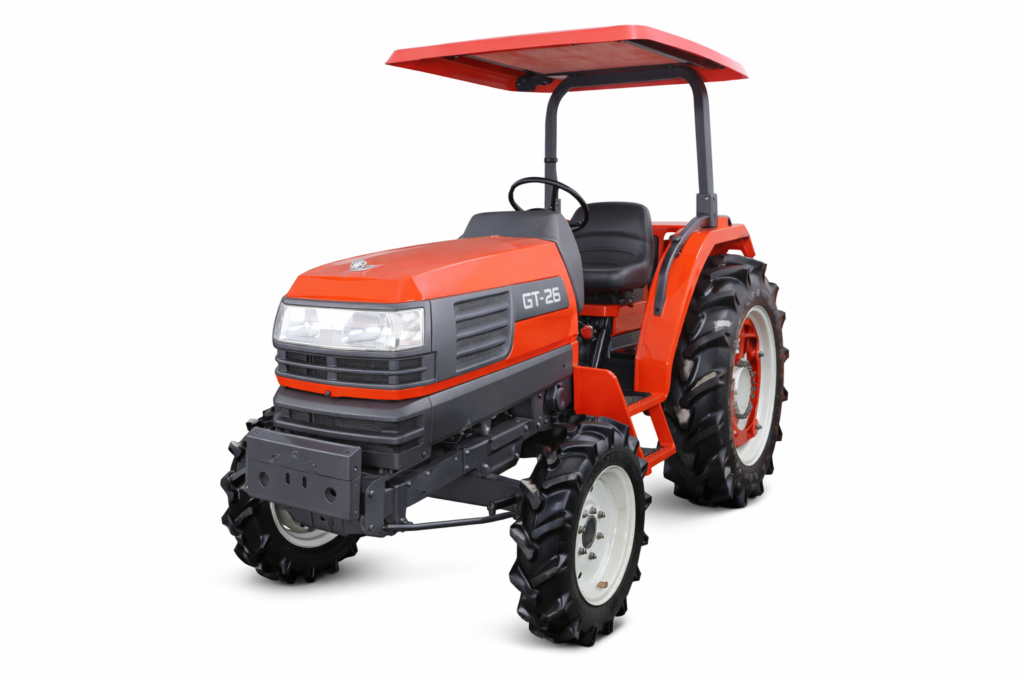

Kubota GT-26

Name: Kubota GT-26
Brand: Kubota

Kubota GT-26 — GT Series · 26 hp. Reference specifications; pending source verification.

The Kubota GT-26 is a tractor model with a power output of approximately 26 hp, categorising it as a lighter model within its class. Produced between 2001 and 2002, this model features a 3-cylinder diesel liquid-cooled engine and is equipped with four-wheel drive and a hydrostatic transmission. Its operating weight is specified as being between 2006 and 2094 pounds. It is suitable for operations on land areas of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Weight

2006 to 2094 pounds

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

26 hp

Recorded weight

909 kg

Transmissions

12-speed

Production years

2001-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Two-post folding ROPS.Reference

Variants

GT-26gearReference

GT-26FhydrostaticReference

GT-26Jlarge tireReference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine19.1 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power19.1 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

hydrostaticReference

Gear Weight909 kgReference

Gears12 forward and 4 reverseReference

Three gears (1-3), plus reverse, in four ranges (creeper and 1-3).Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Rear Type1Reference

Rear PTO Type540/750/1000 (1.375)Reference

Dimensions

Wheelbase150 cmReference

Weight2006 to 2094 poundsReference

Front tire6-14Reference

Rear tire9.5-24Reference

Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference

GT-26J Optional tires (ag)Front: 7-14. Rear: 11.2-24Reference

Length285 cmReference

Width118 cmReference

Height (ROPS)192 cmReference

Height (cab)193 cmReference

Hydro Weight949 kgReference

Ground clearance33 cmReference

Front tread98 cmReference

Rear tread94 to 106 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
