Tractor · 1992Unverified

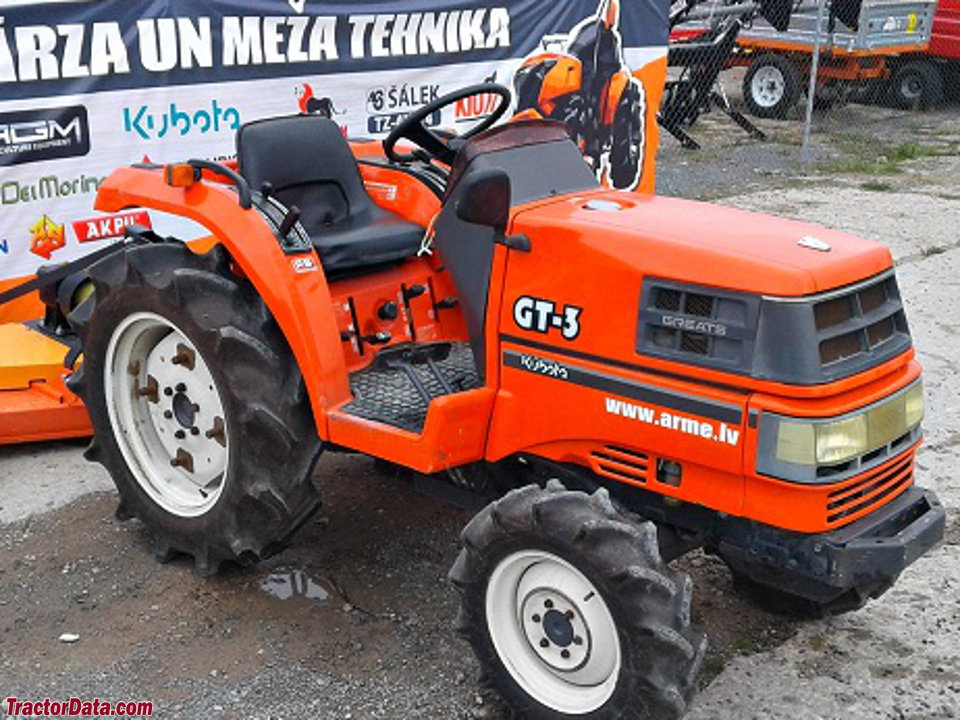

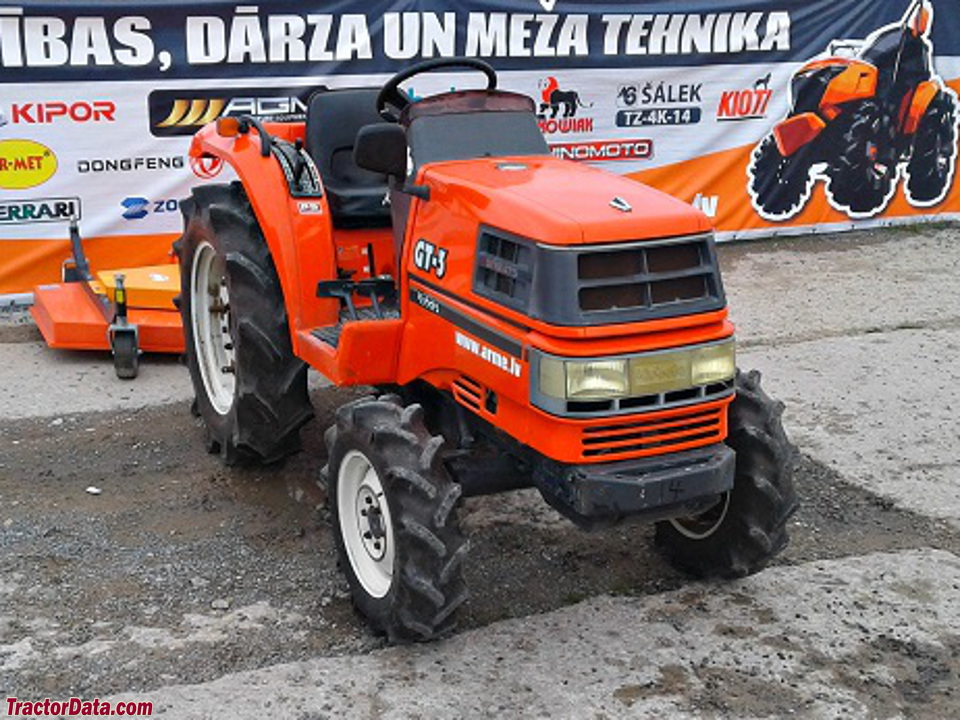

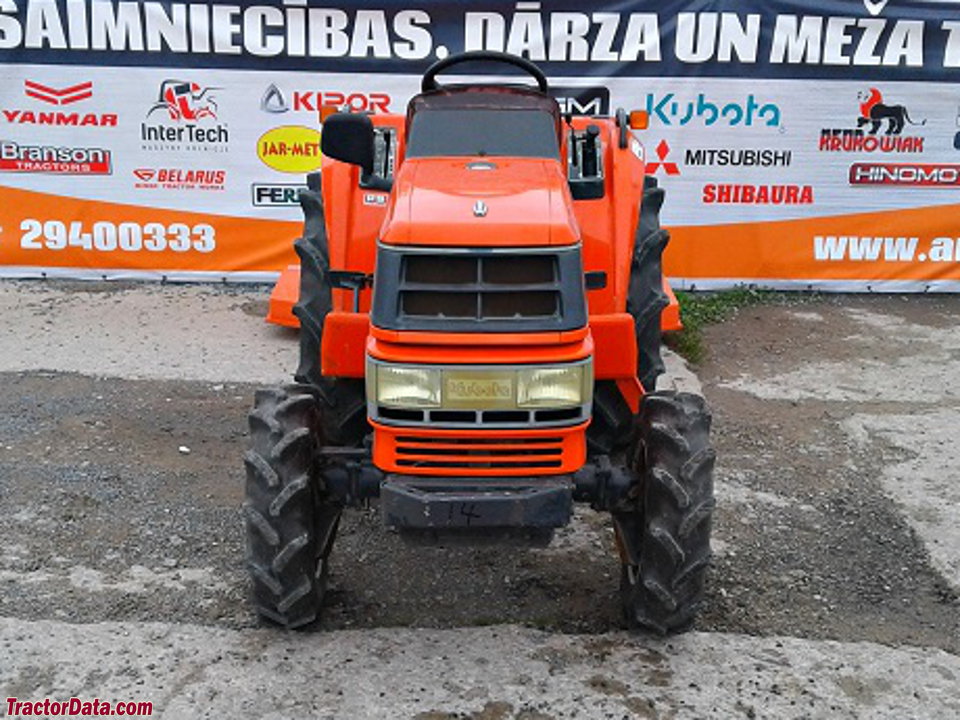

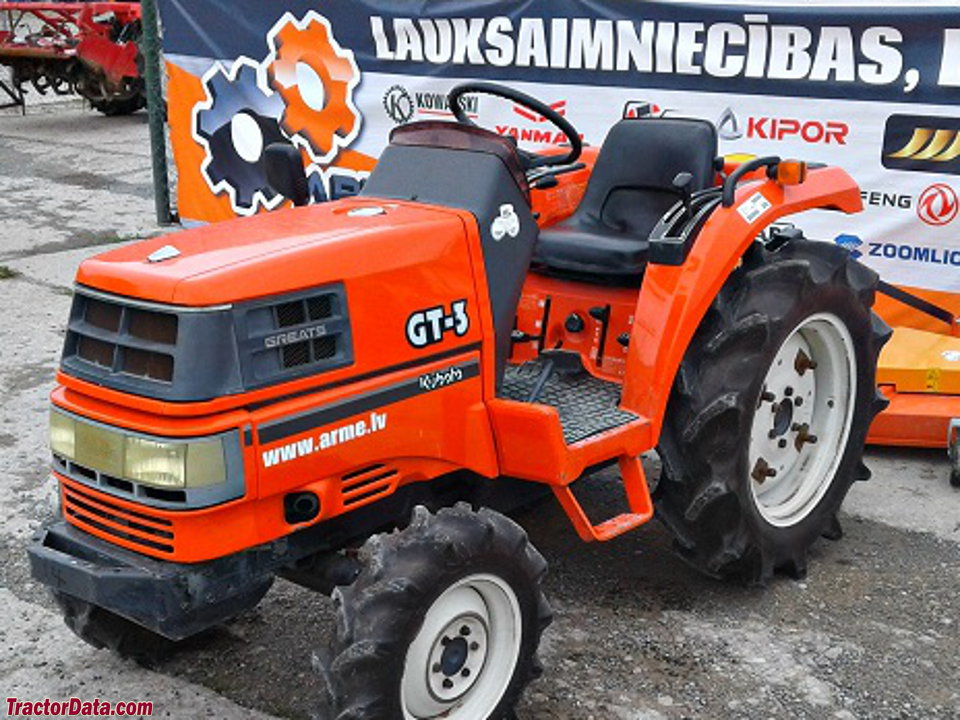

Kubota GT-3
Kubota GT-3 — GT Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1918 to 1973 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS. Cab optional.Reference
Variants
GT-3gearReference
GT-3FhydrostaticReference
GT-3Jlarge tireReference
Engine
Kubota 1.4L 4-cyl dieselReference
Fuel tank26.9 LReference
Engine15.4 kWReference
Kubota V1405LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke76 x 70 mmReference
Power15.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Three gears (1-3), plus reverse, in four ranges (creeper and 1-3).Reference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540/750/1000 (1.375)Reference
Dimensions
Wheelbase145 cmReference
Weight1918 to 1973 poundsReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
GT-3J Optional tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length281 cmReference
Width116 cmReference
Height (ROPS)185 cmReference
Height (cab)193 cmReference
ROPS Weight870 kgReference
Cab Weight894 kgReference
Ground clearance32 cmReference
Front tread94 cmReference
Rear tread91/103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
