Tractor · 2001Unverified

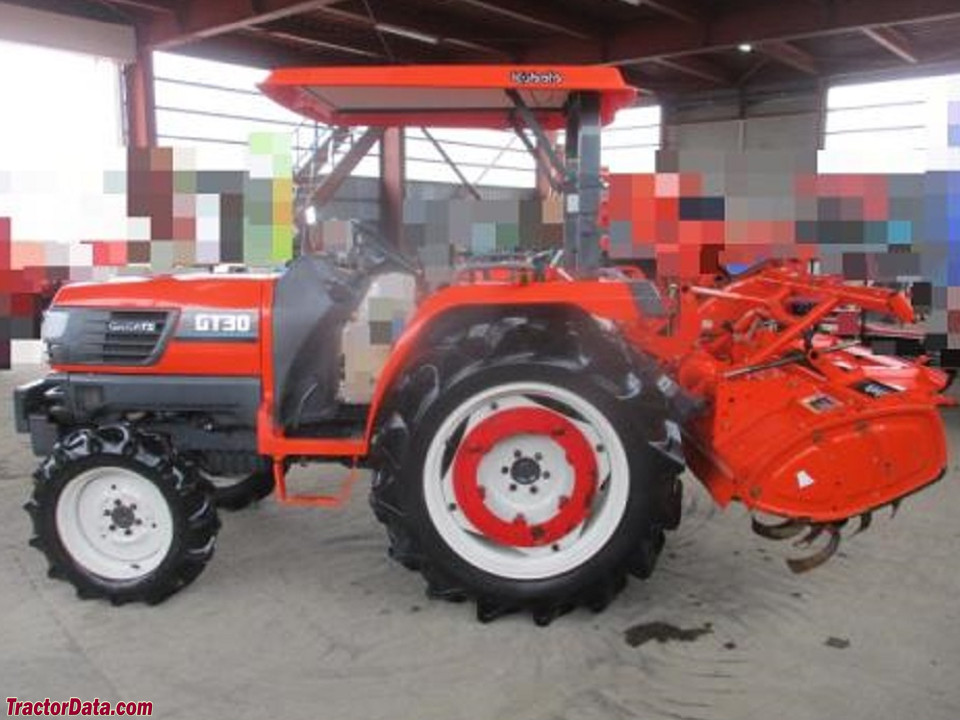

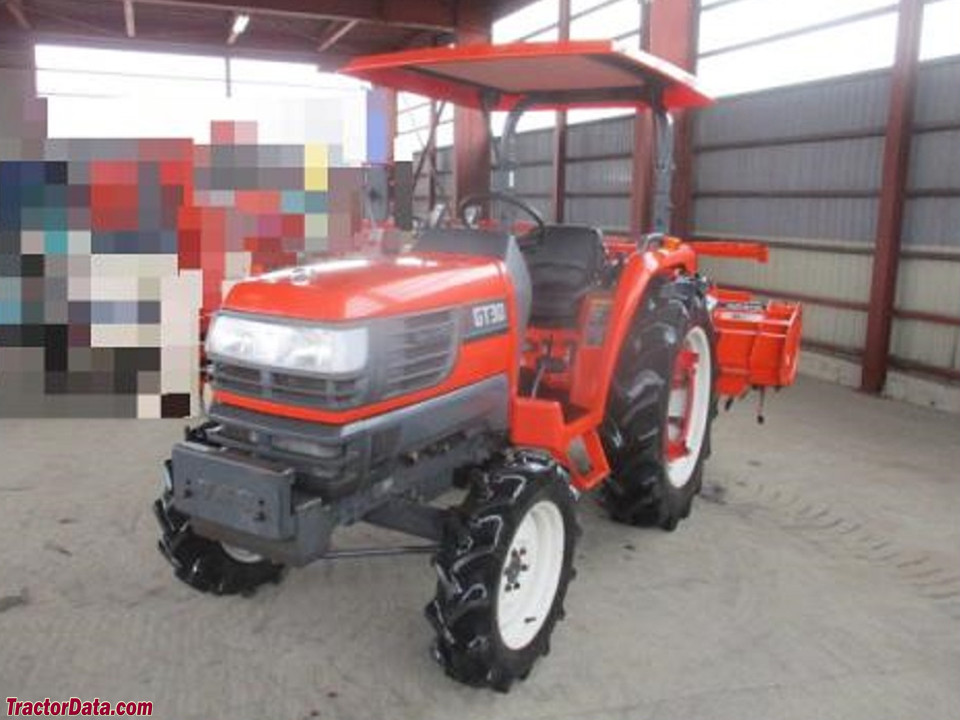

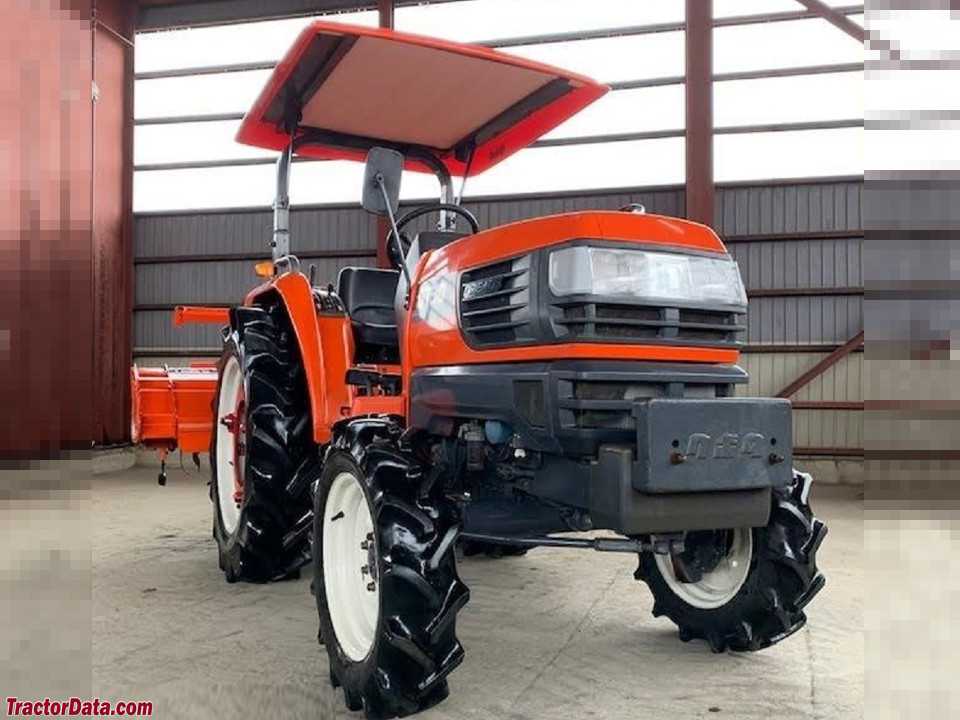

Kubota GT-30

Name: Kubota GT-30
Brand: Kubota

Kubota GT-30 — GT Series · 30 hp. Reference specifications; pending source verification.

The Kubota GT-30 is a tractor with a rated power output of 30 hp, positioning it at the lighter end of its class. It was manufactured from 2001 to 2002. Key features of the tractor include a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. The Kubota GT-30 has an operating weight of 2094 to 2183 pounds and is suited to operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Weight

2094 to 2183 pounds

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

30 hp

Recorded weight

949 kg

Transmissions

12-speed

Production years

2001-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Two-post folding ROPS.Reference

Variants

GT-30gearReference

GT-30FhydrostaticReference

GT-30Jlarge tireReference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine22.1 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power22.1 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

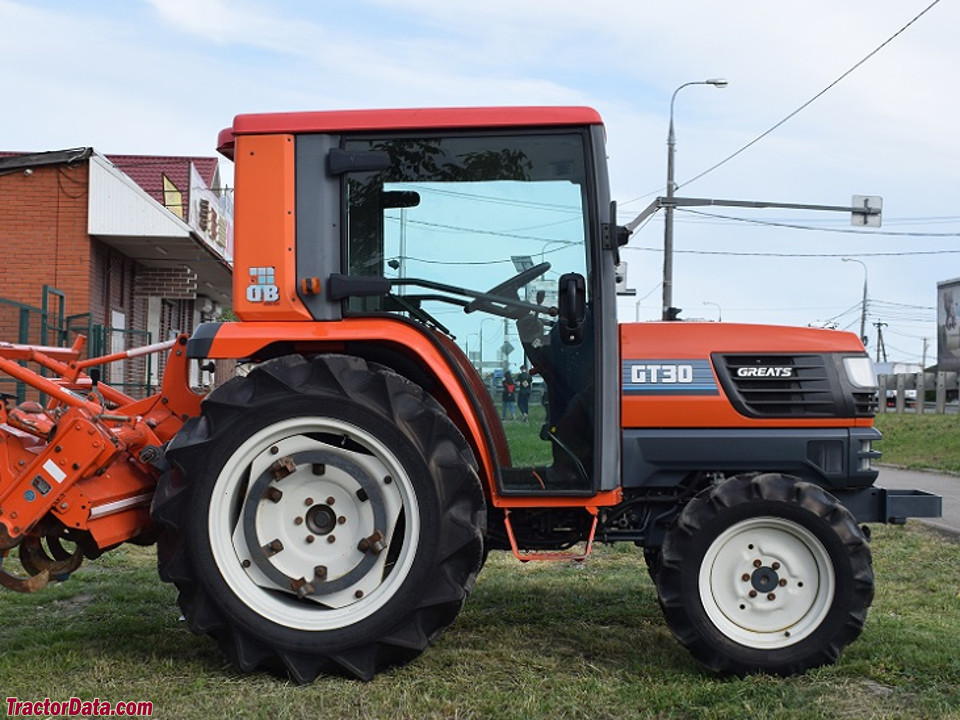

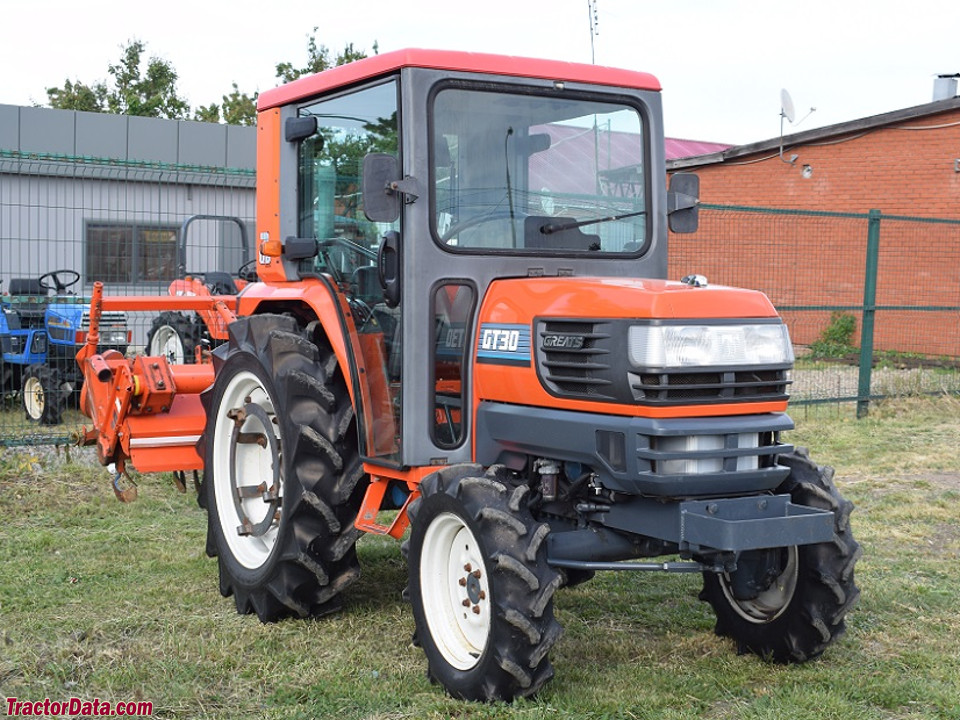

Image courtesy of Agro-EngineeringReference

Transmission

12-speedReference

hydrostaticReference

Gear Weight949 kgReference

Gears12 forward and 4 reverseReference

Three gears (1-3), plus reverse, in four ranges (creeper and 1-3).Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Rear Type1Reference

Rear PTO Type540/750/1000 (1.375)Reference

Dimensions

Wheelbase150 cmReference

Weight2094 to 2183 poundsReference

Front tire7-14Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference

GT-30J Optional tires (ag)Front: 7-16. Rear: 11.2-26Reference

Length285 cmReference

Width132 cmReference

Height (ROPS)193 cmReference

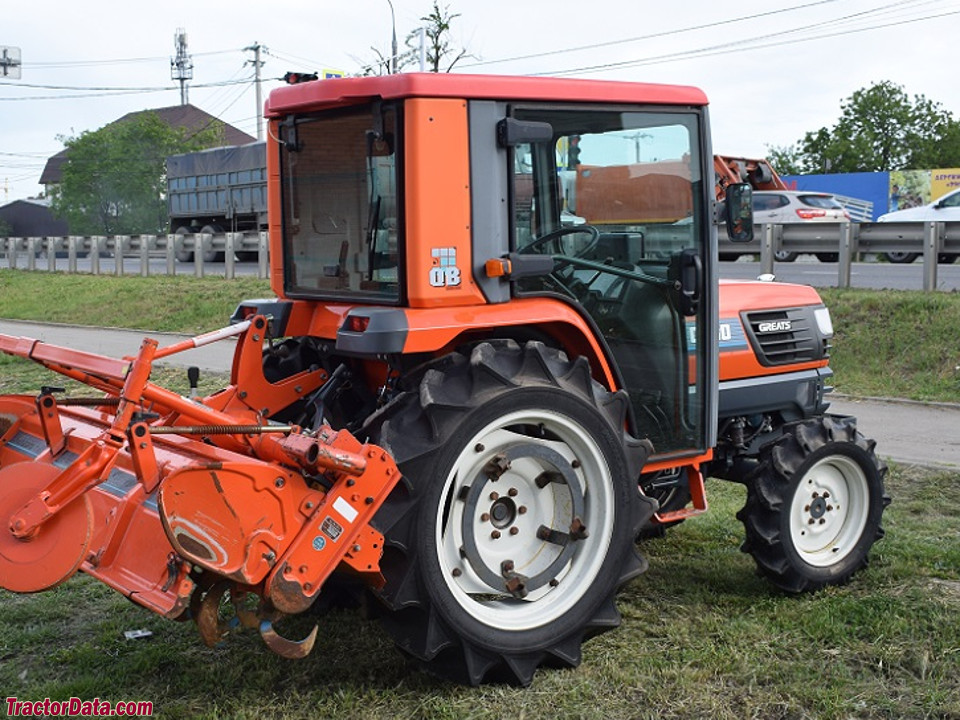

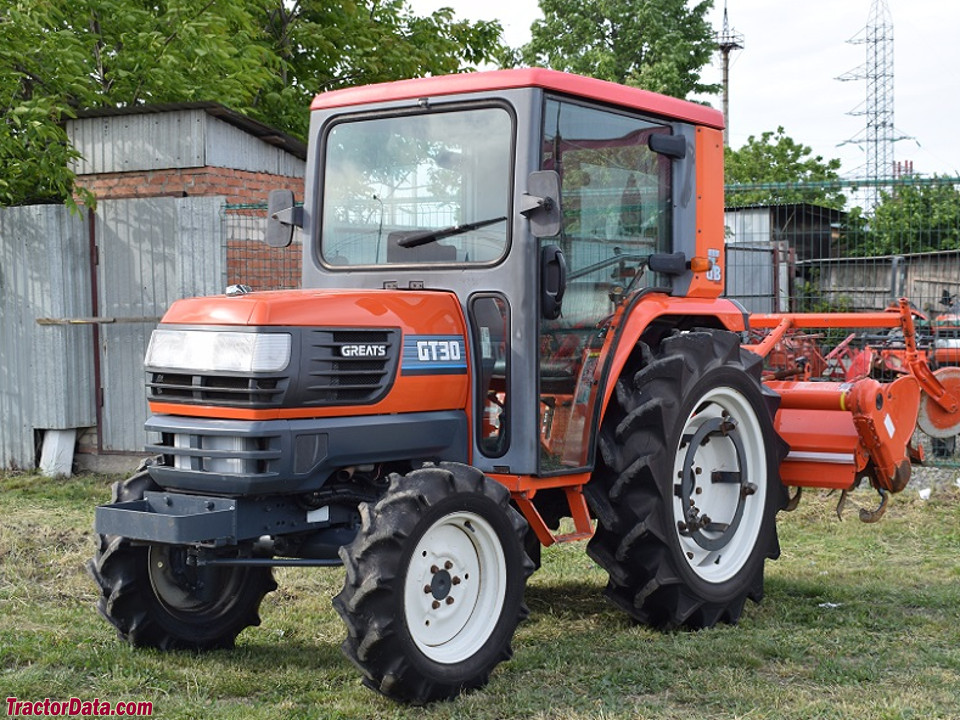

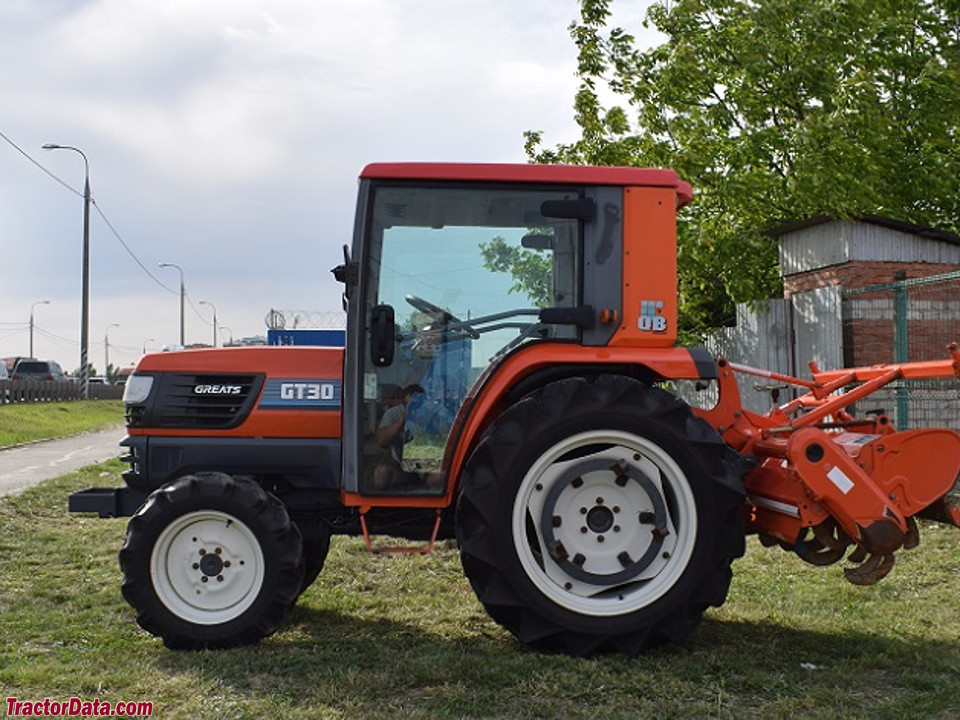

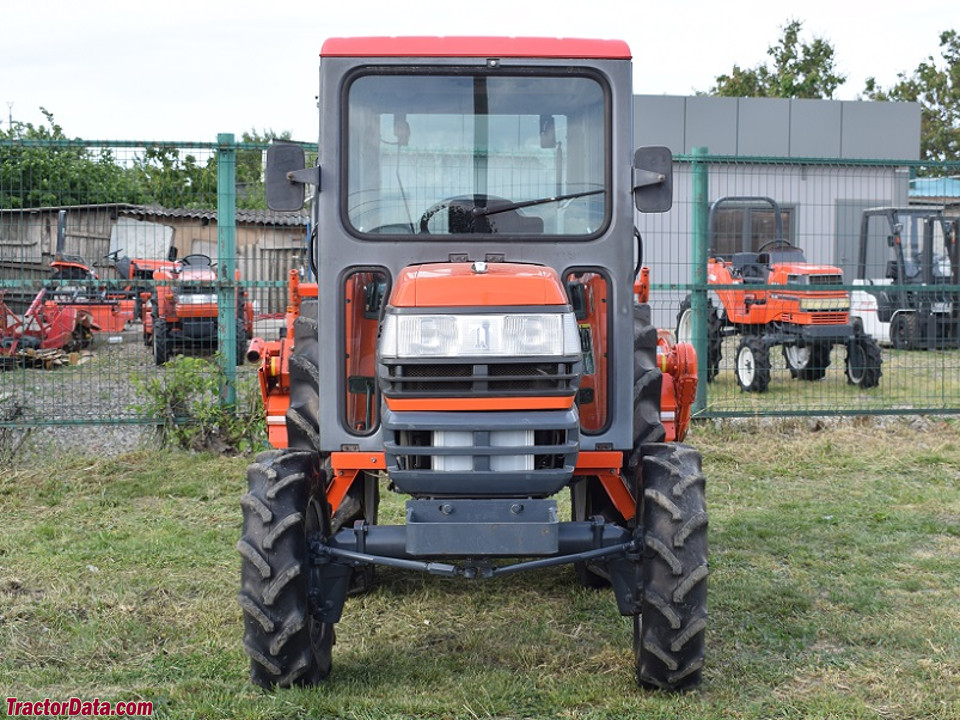

Height (cab)195 cmReference

Hydro Weight990 kgReference

Ground clearance34 cmReference

Front tread104 cmReference

Rear tread104 to 126 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
