Tractor · 1992Unverified

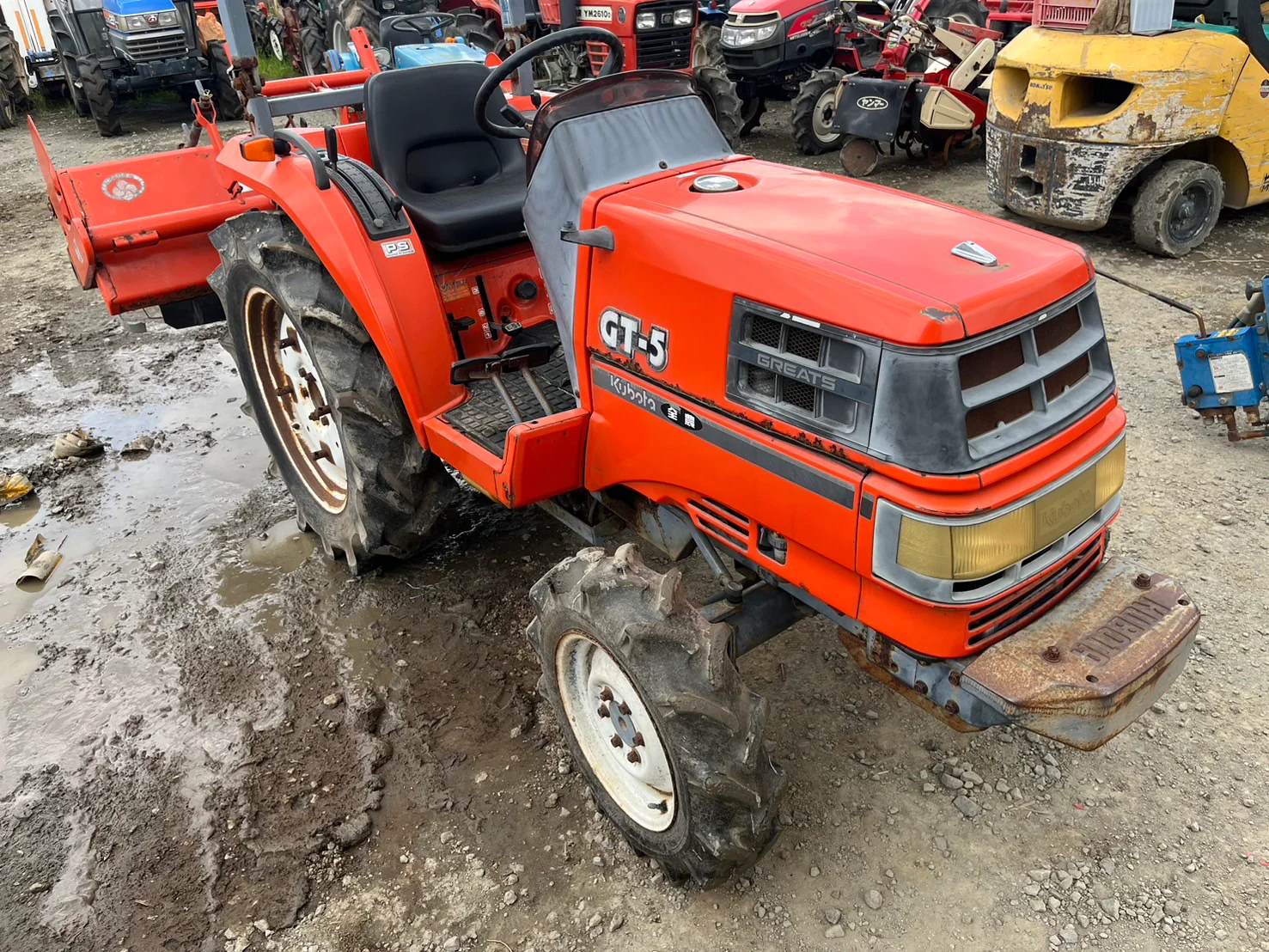

Kubota GT-5
Kubota GT-5 — GT Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1929 to 2006 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS. Cab optional.Reference
Variants
GT-5gearReference
GT-5FhydrostaticReference
GT-5Jlarge tireReference
Engine
Kubota 1.5L 4-cyl dieselReference
Fuel tank26.9 LReference
Engine16.9 kWReference
Kubota V1505LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power16.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
hydrostaticReference
Gears12 forward and 4 reverseReference
Three gears (1-3), plus reverse, in four ranges (creeper and 1-3).Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540/750/1000 (1.375)Reference
Dimensions
Wheelbase145 cmReference
Weight1929 to 2006 poundsReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
GT-5J Optional tires (ag)Front: 6-14. Rear: 9.5-24Reference
Length281 cmReference
Width121 cmReference
Height (ROPS)185 cmReference
Height (cab)193 cmReference
ROPS Weight874 kgReference
Cab Weight909 kgReference
Ground clearance32 cmReference
Front tread94 cmReference
Rear tread94/106 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
