Tractor · 2006Unverified

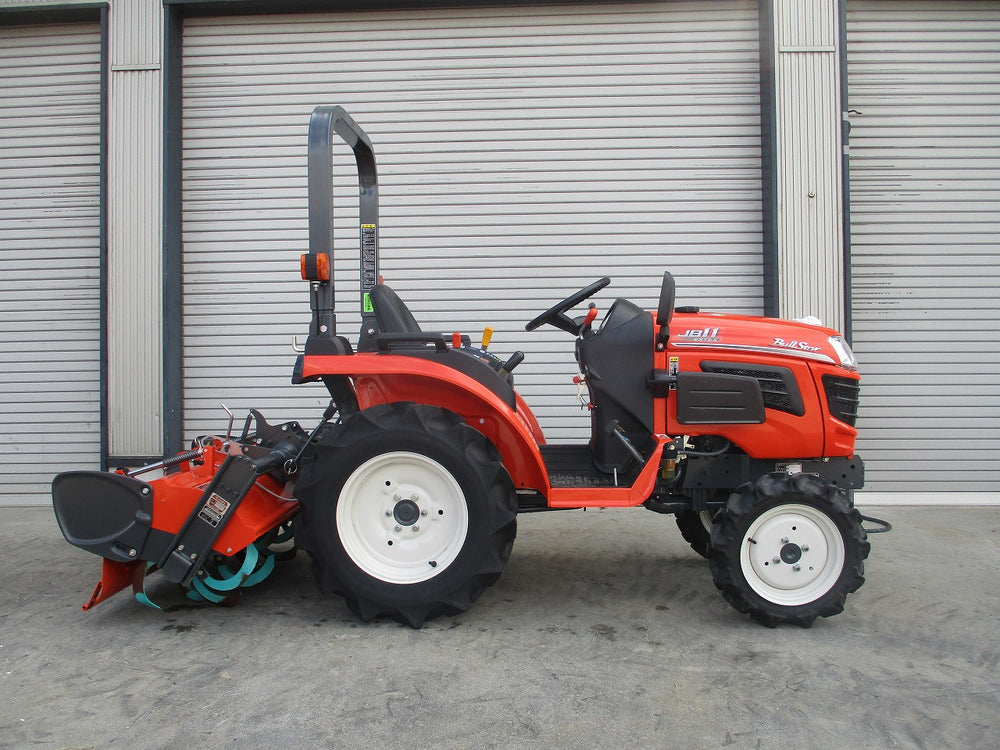

Kubota JB11
Kubota JB11 — JB Bullstar Series · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Weight
499 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Manual steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 0.5L 2-cyl dieselReference
Fuel tank14.0 LReference
Engine7.7 kWReference
Kubota Z482Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.5 LReference
Bore/Stroke67 x 68 mmReference
Power7.7 kWReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear PTO540 (1.375)Reference
Rear PTO Type523:3000Reference
Rear PTO Type917:3000Reference
Dimensions
Wheelbase127 cmReference
Weight499 kgReference
Front tire4.00-10Reference
Rear tire7-14Reference
Standard tires (ag)Front: 4.00-10. Rear: 7-14Reference
Optional tires (ag)Front: 4.00-12. Rear: 7-16Reference
Length199 cmReference
Width93 cmReference
Height176 cmReference
Ground clearance23 cmReference
Front tread72 cmReference
Rear tread72/76 cmReference
JB11 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
