Tractor · 2009Unverified

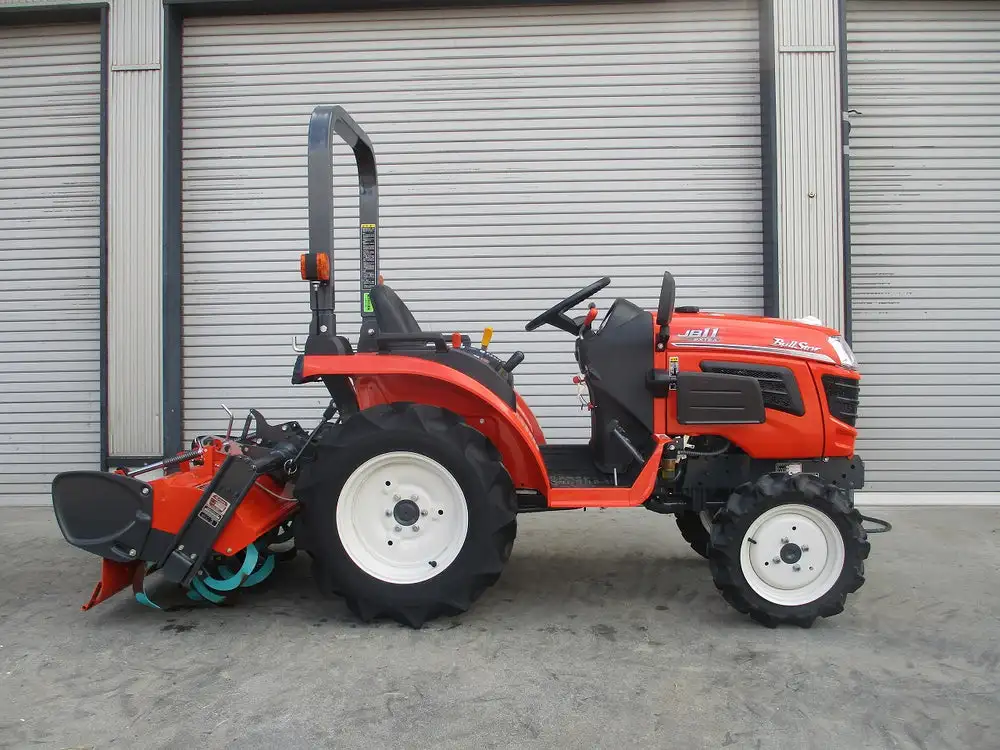

Kubota JB11X
Kubota JB11X — JB Bullstar Extra Series · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Weight
504 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Manual steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 0.5L 2-cyl dieselReference
Fuel tank14.0 LReference
Engine7.7 kWReference
Kubota Z482Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.5 LReference
Bore/Stroke67 x 68 mmReference
Power7.7 kWReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear PTO540 (1.375)Reference
Rear PTO Type523:3000Reference
Rear PTO Type917:3000Reference
Dimensions
Wheelbase127 cmReference
Weight504 kgReference
Front tire4.00-12Reference
Rear tire7-16Reference
Standard tires (ag)Front: 4.00-12. Rear: 7-16Reference
Length200 cmReference
Width93 cmReference
Height178 cmReference
Ground clearance24 cmReference
Front tread71 cmReference
Rear tread72/76 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
