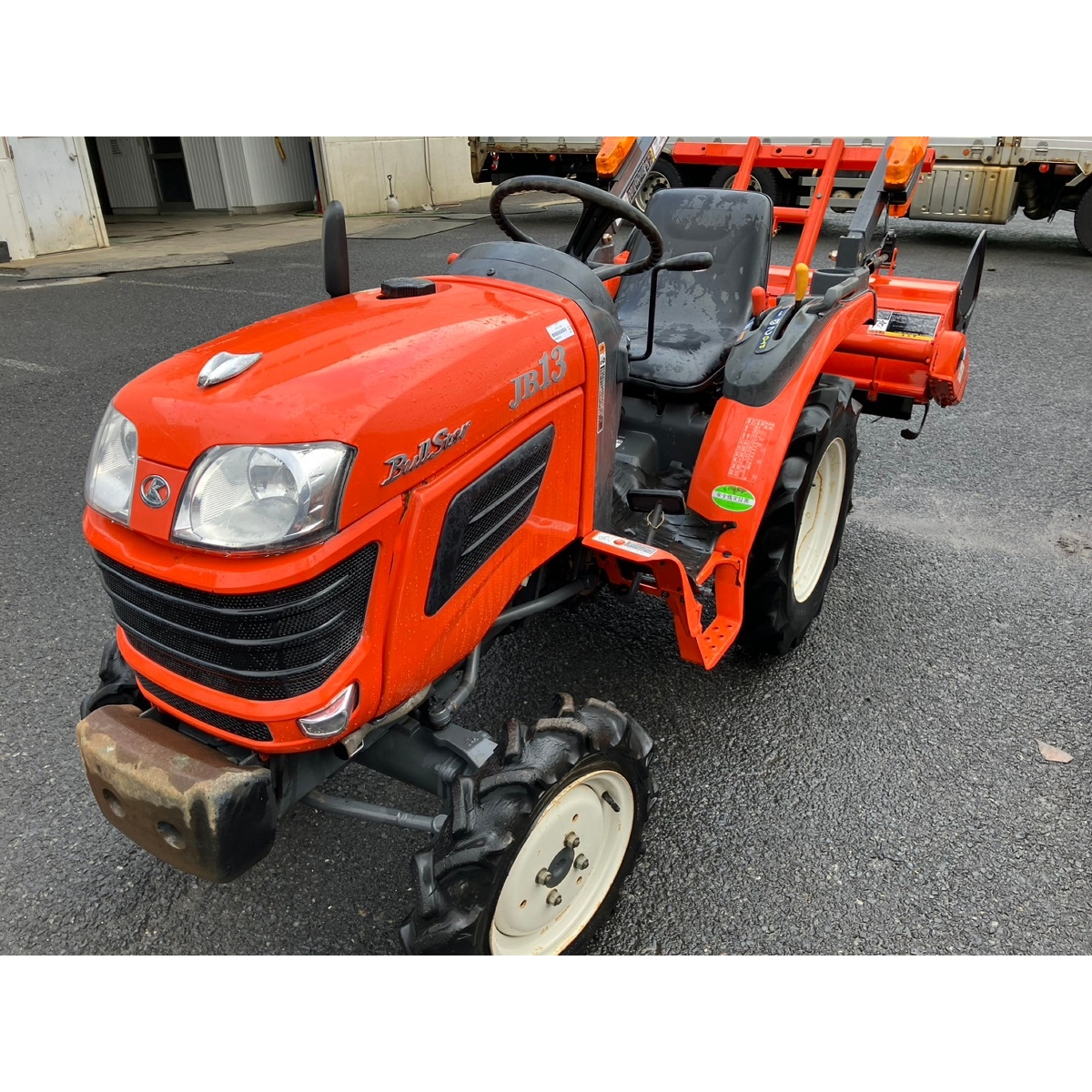

The Kubota JB13 is a compact tractor with a rated engine power of 13 hp. Manufactured from 2006 to 2008, this model features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system via a 6-speed gearbox. Weighing 550 kg, the Kubota JB13 is suited to tasks of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
550 kg
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
13 hp
Recorded weight
550 kg
Transmissions
6-speed
Production years
2006-2008
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
JB13wheeledReference
JB13-PChalf-trackReference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine9.6 kWReference
Kubota D722Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke67 x 68 mmReference
Power9.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Rear PTO540 (1.375)Reference
Rear PTO Type551:2600Reference
Rear PTO Type967:2600Reference
Dimensions
Wheelbase127 cmReference
Weight550 kgReference
Front tire4.00-12Reference
Rear tire7-16Reference
Standard tires (ag)Front: 4.00-12. Rear: 7-16Reference
Length199 cmReference
Width93 cmReference
Height178 cmReference
Ground clearance24 cmReference
Front tread76 cmReference
Rear tread72/76 cmReference
JB13 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
