Tractor · 2006Unverified

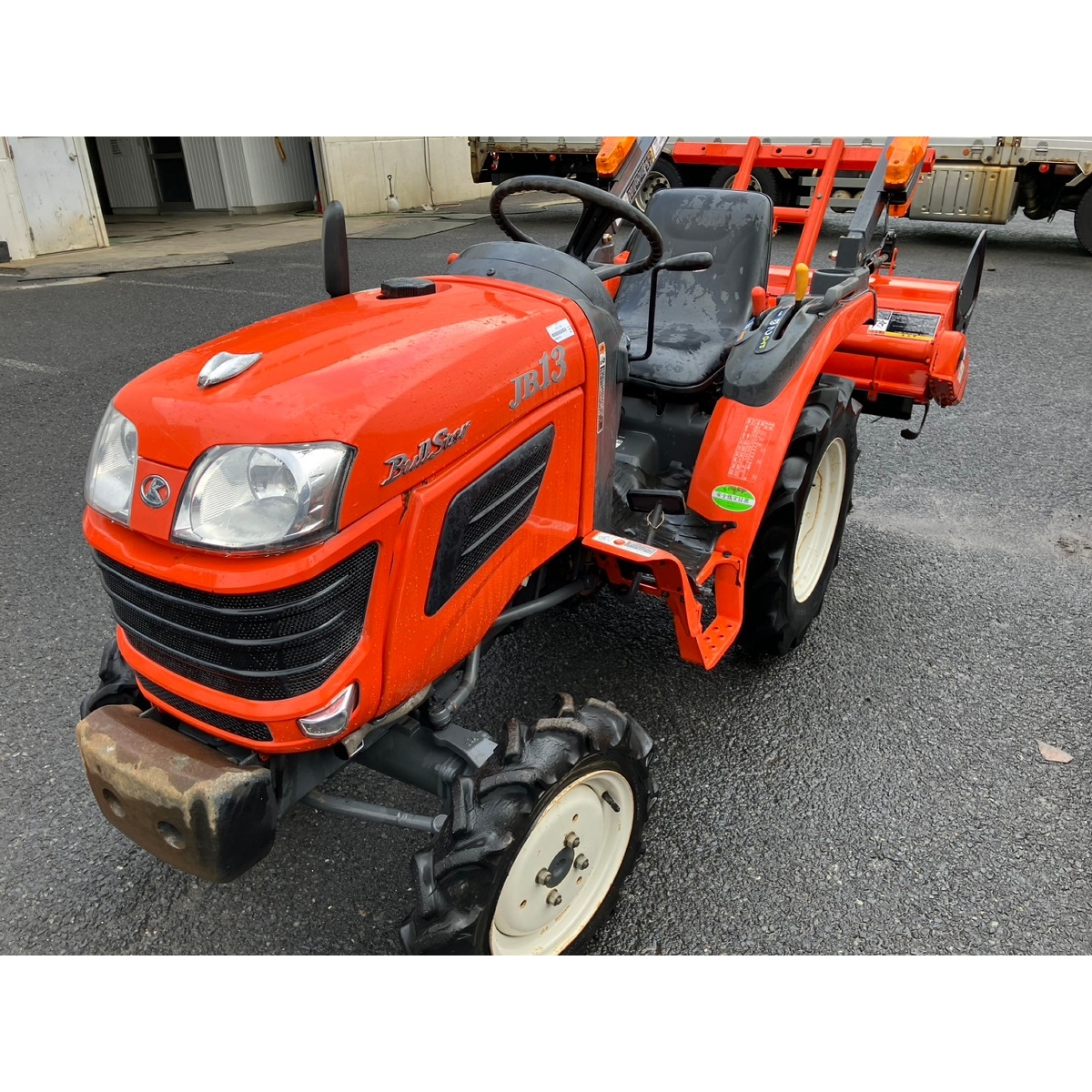

Kubota JB13-PC Power Crawler
Kubota JB13-PC Power Crawler — JB Bullstar Series · 13 hp. Reference specifications; pending source verification.
The Kubota JB13-PC Power Crawler is a tractor model with a rating of approximately 13 horsepower, positioning it at the lower end of its class. It was manufactured between 2006 and 2008. The machine is equipped with a 3-cylinder diesel liquid-cooled engine and a tracked undercarriage paired with a 6-speed gearbox. Its operating weight is listed as 744 kg.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
744 kg
Catalogue coverage
Variants represented
2
Richest spec table
43 rows
Recorded power
13 hp
Recorded weight
744 kg
Transmissions
6-speed
Production years
2006-2008
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
JB13wheeledReference
JB13-PChalf-trackReference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine9.6 kWReference
Kubota D722Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke67 x 68 mmReference
Power9.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Rear PTO540 (1.375)Reference
Rear PTO Type551:2600Reference
Rear PTO Type967:2600Reference
Dimensions
Wheelbase127 cmReference
Weight744 kgReference
Front tire6-14Reference
Rear tiretracksReference
Ag front6-14Reference
Ag rear330mm trackReference
Length241 cmReference
Width103 cmReference
Height192 cmReference
Ground clearance74 cmReference
Front tread88 cmReference
Rear tread88 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
