Tractor · 2009Unverified
Kubota JB13X
Kubota JB13X — JB Bullstar Extra Series · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
550 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
JB13XwheeledReference

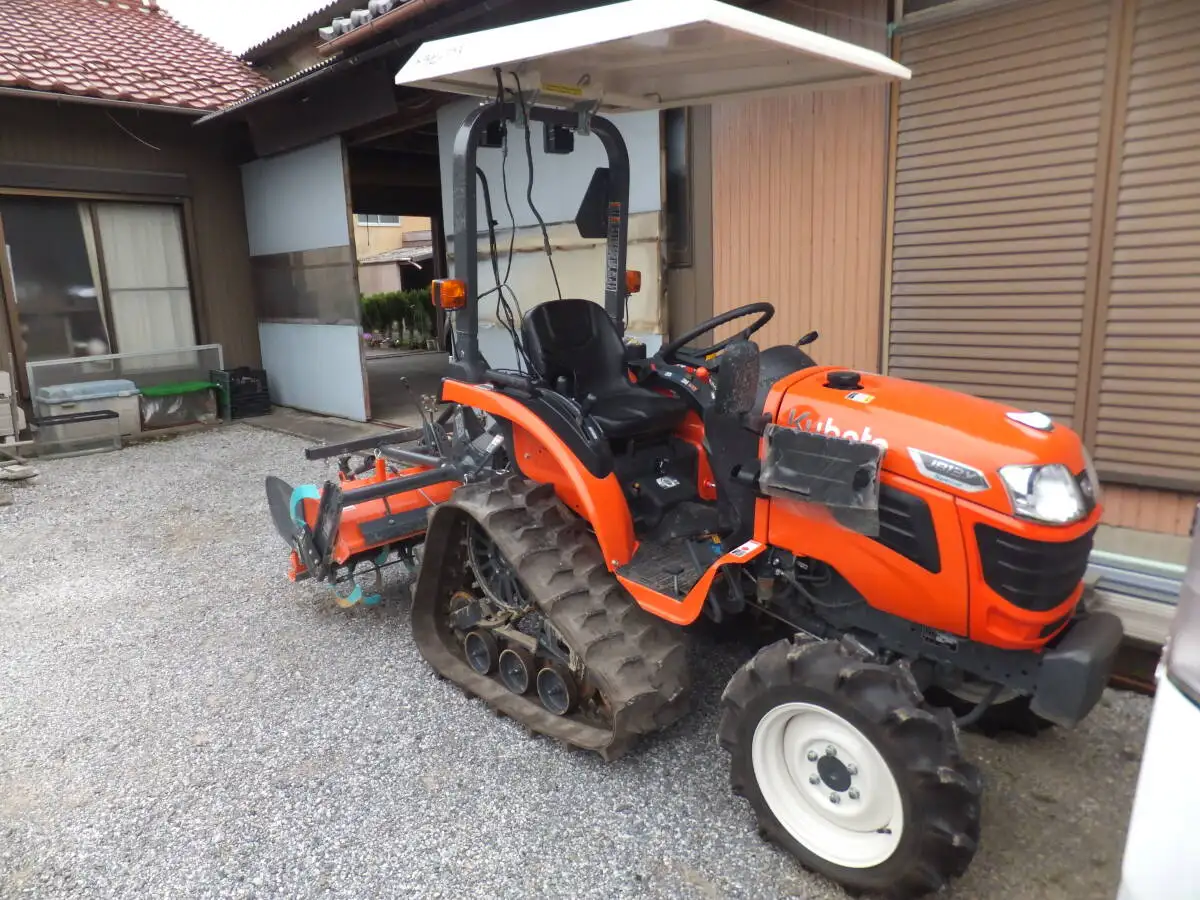

JB13X-PChalf-trackReference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine9.9 kWReference
Kubota D722Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke67 x 68 mmReference
Power9.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Rear PTO540 (1.375)Reference
Rear PTO Type551:2600Reference
Rear PTO Type967:2600Reference
Dimensions
Wheelbase127 cmReference
Weight550 kgReference
Front tire5-12Reference
Rear tire8-16Reference
Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Optional tires (ag)Front: 4.00-7. Rear: 6-12Reference
Length201 cmReference
Width96 cmReference
Height181 cmReference
Ground clearance26 cmReference
Front tread74 cmReference
Rear tread72/76 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
