Tractor · 2009Unverified

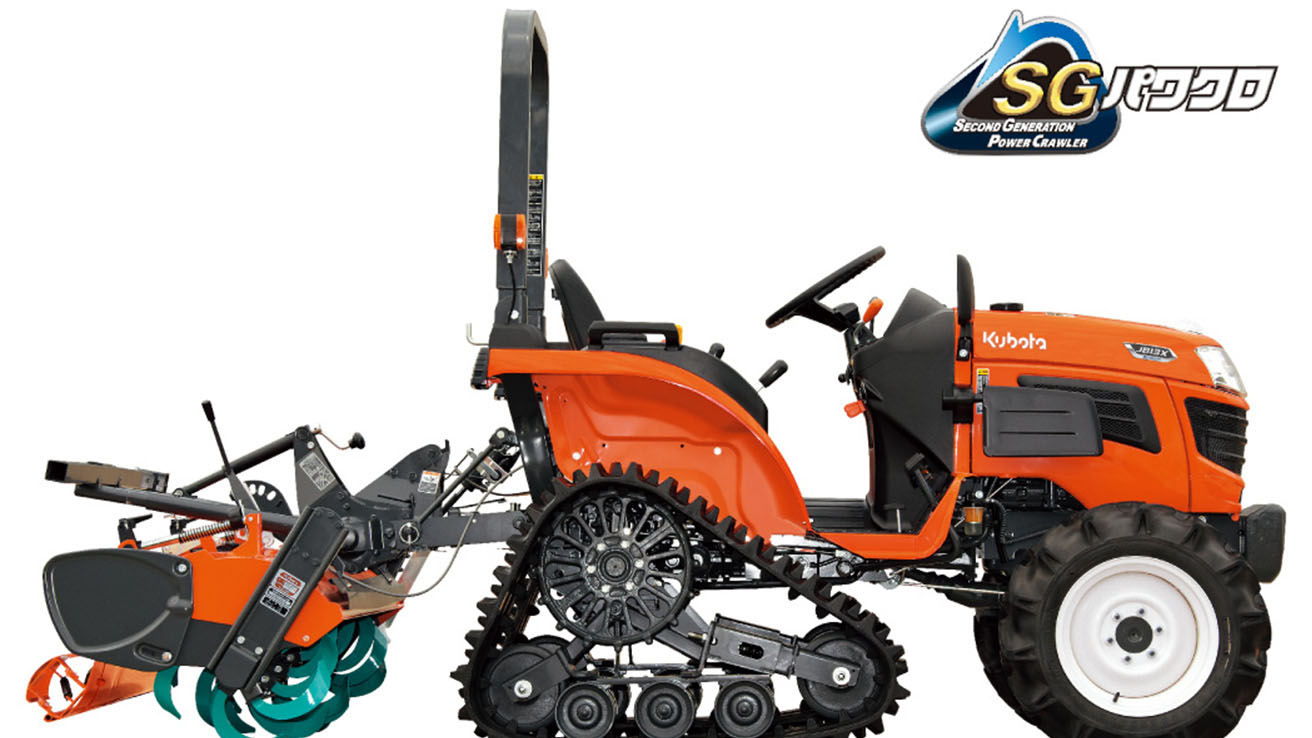

Kubota JB13X-PC Power Crawler
Kubota JB13X-PC Power Crawler — JB Bullstar Extra Series · 13 hp. Reference specifications; pending source verification.
The Kubota JB13X-PC Power Crawler is a compact tractor with a rated output of 13 hp, making it a suitable option for smaller-scale operations. It was manufactured in 2009, featuring a 3-cylinder diesel liquid-cooled engine that drives through a 6-speed gearbox and a tracked undercarriage. The machine weighs 719 kg and is designed for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
719 kg
Catalogue coverage
Variants represented
2
Richest spec table
43 rows
Recorded power
13 hp
Recorded weight
719 kg
Transmissions
6-speed
Production years
2009-2009
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
JB13XwheeledReference
JB13X-PChalf-trackReference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine9.9 kWReference
Kubota D722Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke67 x 68 mmReference
Power9.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Rear PTO540 (1.375)Reference
Rear PTO Type551:2600Reference
Rear PTO Type967:2600Reference
Dimensions
Wheelbase127 cmReference
Weight719 kgReference
Front tire6-14Reference
Rear tiretracksReference
Ag front6-14Reference
Ag rear330mm trackReference
Length201 cmReference
Width120 cmReference
Height193 cmReference
Ground clearance33 cmReference
Front tread88 cmReference
Rear tread88 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
