Tractor · 2006Unverified
Kubota JB14
Kubota JB14 — JB Bullstar Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
570 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
JB14wheeledReference

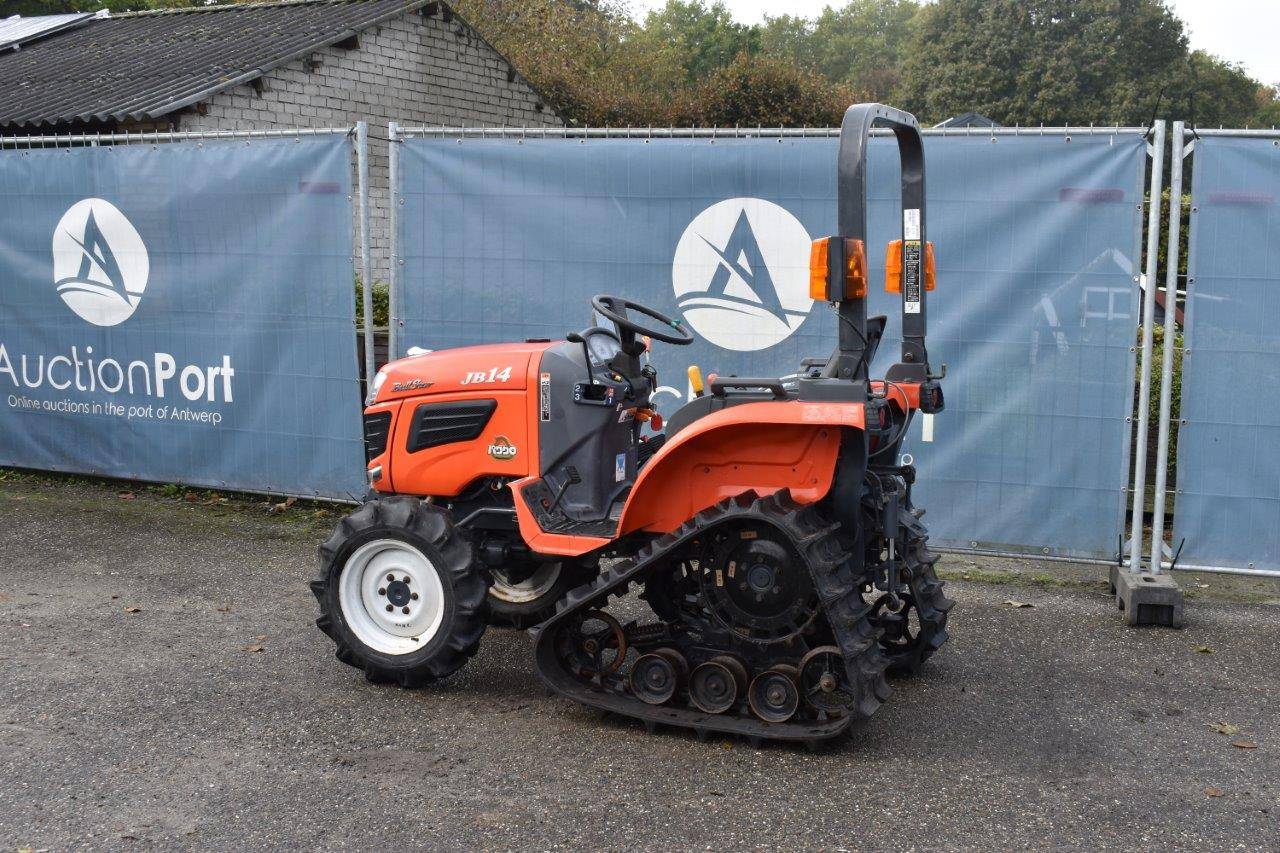

JB14-PChalf-trackReference
Engine
Kubota 0.8L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine10.7 kWReference
Kubota D782Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke67 x 74 mmReference
Power10.7 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Rear PTO540 (1.375)Reference
Rear PTO Type551:2600Reference
Rear PTO Type967:2600Reference
Dimensions
Wheelbase127 cmReference
Weight570 kgReference
Front tire5-12Reference
Rear tire8-16Reference
Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Length201 cmReference
Width96 cmReference
Height181 cmReference
Ground clearance26 cmReference
Front tread74 cmReference
Rear tread72/76 cmReference
JB14 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
