Tractor · 2009Unverified

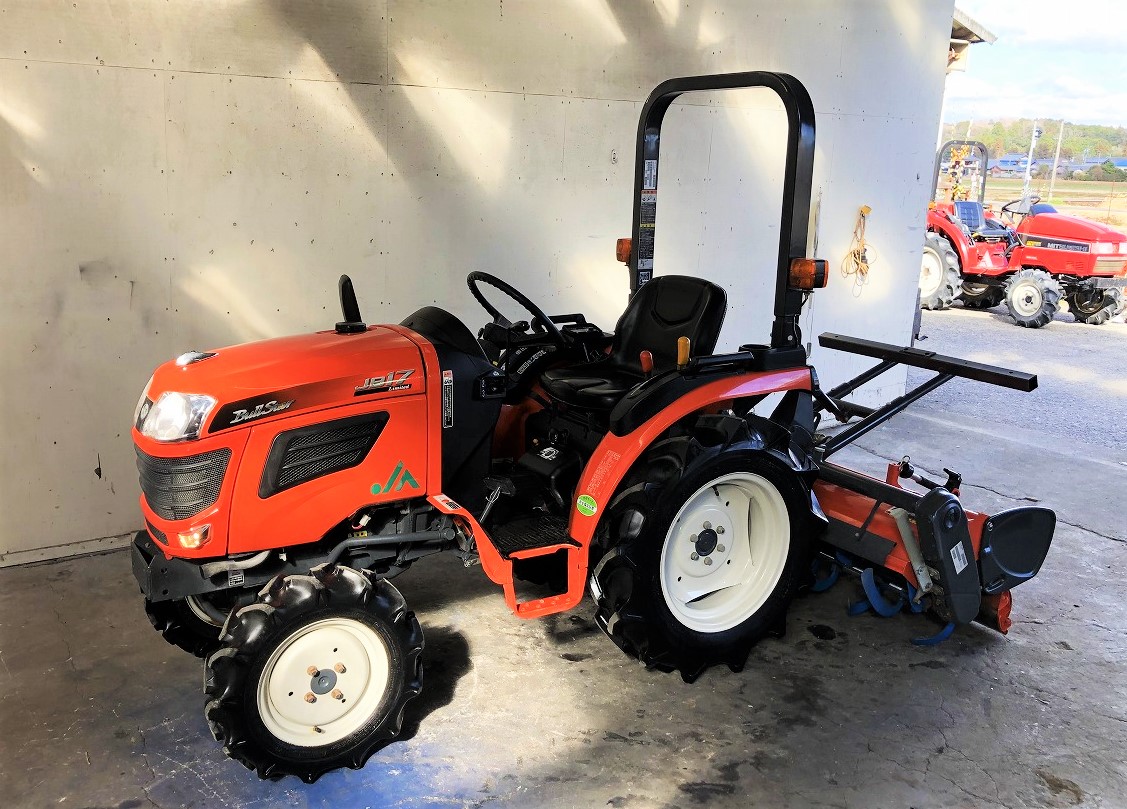

Kubota JB17X
Kubota JB17X — JB Bullstar Extra Series · 17 hp. Reference specifications; pending source verification.
The Kubota JB17X is a tractor model with an output of approximately 17 horsepower, categorising it as a lighter variant within its class. Manufactured in 2009, this model features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and a 6-speed gearbox. The JB17X has an operating weight of 575 kg and is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Max power
16.8 hp
Weight
575 kg
Catalogue coverage
Variants represented
2
Richest spec table
67 rows
Recorded power
17 hp
Recorded weight
575 kg
Transmissions
6-speed
Production years
2009-2009
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
JB17XwheeledReference
JB17X-PChalf-trackReference
Engine
Kubota 1.0L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine12.5 kWReference
Kubota D1005Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 74 mmReference
Power12.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Fuel TypedieselReference
No of Cylinders3 CylinderReference
Rated engine speed2,600 RPMReference
Bore and stroke2.99x2.90 inchesReference
Cooling systemliquid-cooledReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears, plus reverse, in two ranges.Reference
forward and reverse options6F and 2RReference
Wheel Drive4WDReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO540 (1.375)Reference
Rear PTO Type551:2600Reference
Rear PTO Type967:2600Reference
Dimensions
Wheelbase127 cmReference
Weight575 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
