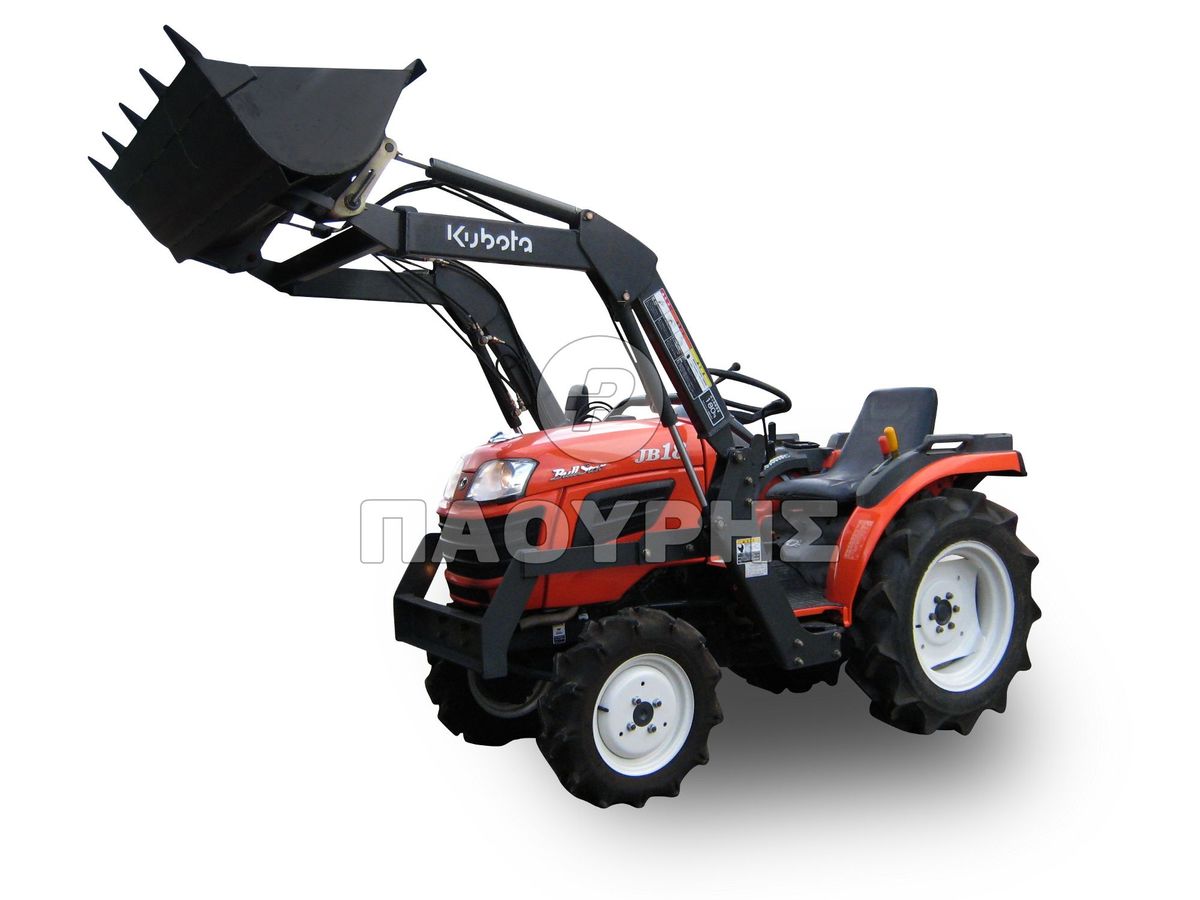

The Kubota JB18 is a compact tractor with a rated output of 18 hp, making it one of the smaller models in its class. It was manufactured from 2006 to 2008. The JB18 is equipped with a 3-cylinder diesel liquid-cooled engine, connected to a 6-speed gearbox and powered by four-wheel drive. Its listed weight is 590 kg, with a maximum workload capacity of approximately 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
590 kg
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
18 hp
Recorded weight
590 kg
Transmissions
6-speed
Production years
2006-2008
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
JB18wheeledReference
JB18-PChalf-trackReference
Engine
Kubota 1.0L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine13.6 kWReference
Kubota D1005Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 74 mmReference
Power13.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Rear PTO540 (1.375)Reference
Rear PTO Type551:2600Reference
Rear PTO Type967:2600Reference
Dimensions
Wheelbase127 cmReference
Weight590 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length204 cmReference
Width97 cmReference
Height183 cmReference
Ground clearance28 cmReference
Front tread74 cmReference
Rear tread72/76 cmReference
JB18 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
